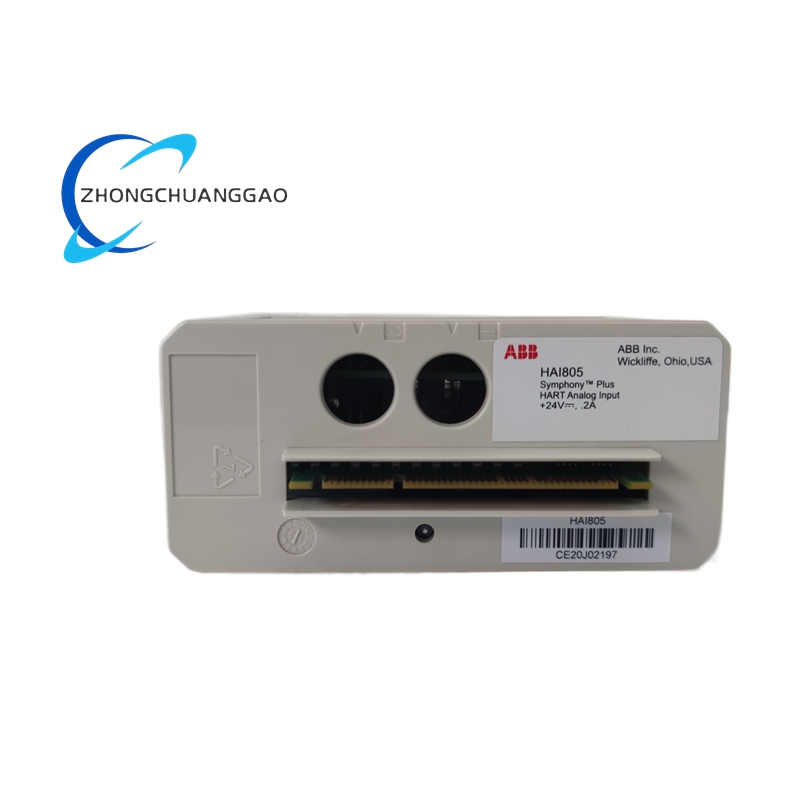

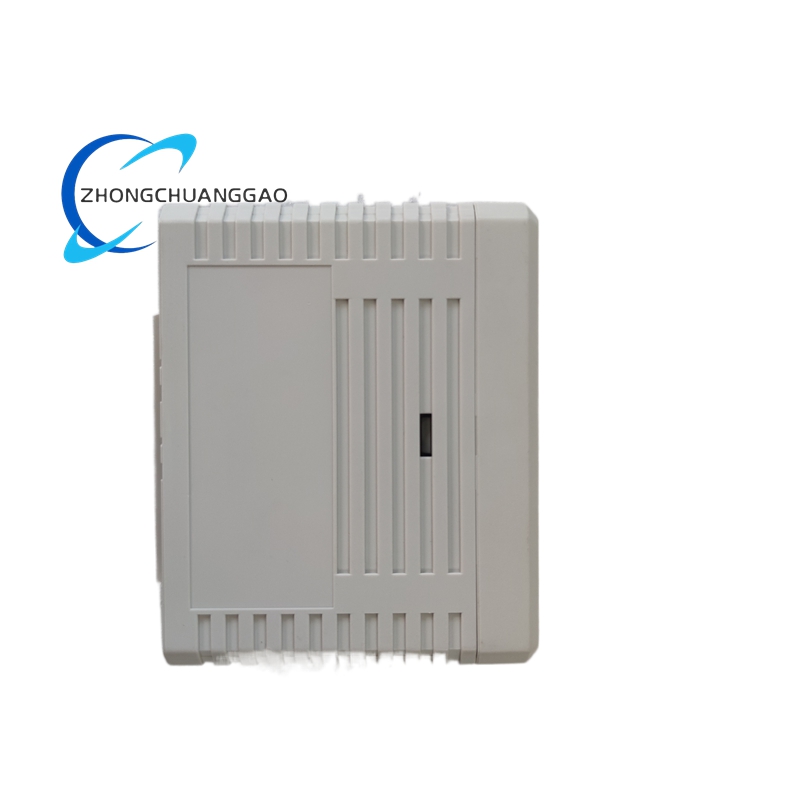

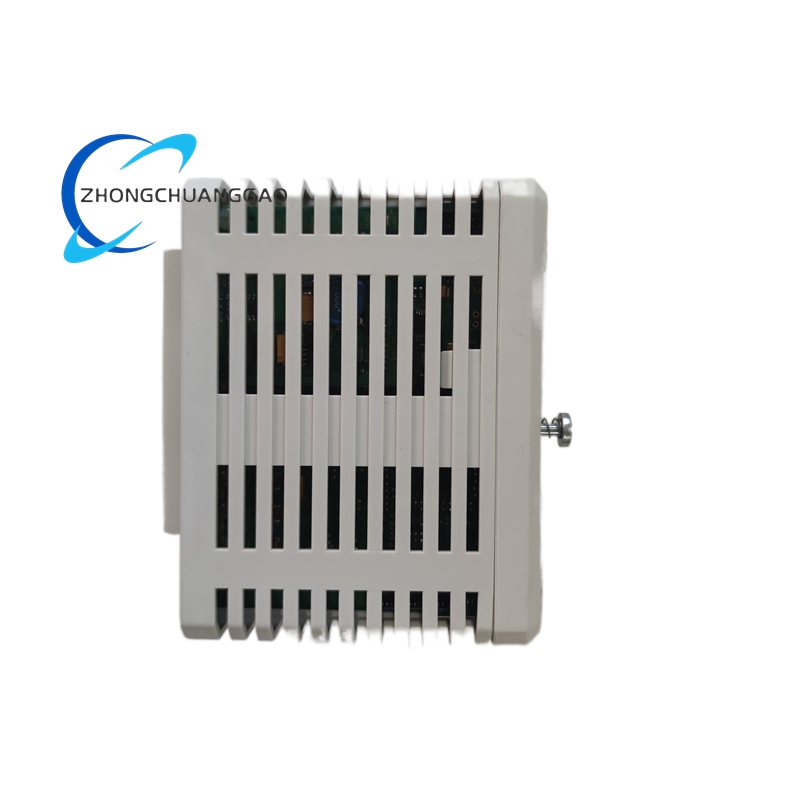

ABB HAI805 Analog Input Module

Description

Key Technical Specifications

• Manufacturer: ABB

• Product Type: 8-Channel Analog Input Module

• System Compatibility: ABB Symphony Plus DCS, S+ I/O Series

• Input Channels: 8 (individually configurable and isolated)

• Supported Input Signals: 4-20 mA current (primarily), 0-10 VDC voltage

• Impedance Load: Up to 750 Ω (in current mode system powered)

• Analog-to-Digital Converter (ADC) Resolution: 12-bit

• Conversion Speed: All channels converted within 100 ms

• Accuracy (Current Signal): 0.10%

• Temperature Drift: Maximum ±0.003% / °C effect on measurement accuracy

• Input-to-Logic Isolation: Electrical isolation, 300 V DC / V RMS at 60 Hz; withstands 1400 V AC for 2 seconds

• HART Protocol: Integrated per channel, supporting HART 5.0 and 7.0 for multi-variable and diagnostic data

• Communication Interface: S+ I/O bus (via HN800 redundant fiber optic link)

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Dimensions (W x H x D): 59 mm × 186 mm × 127 mm

• Weight (with base): Approx. 0.56 kg

• Protection Rating: IP20

• Certifications: CE marked, CSA certified, compliant with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Core Features

• 8 Individually Isolated Input Channels: The module provides eight independent, electrically isolated channels. This per-channel isolation prevents faults or interference on one channel from affecting others, ensuring data integrity and system stability in electrically noisy industrial environments .

• Integrated HART Communication: Each of the eight channels features a dedicated HART modem. This enables the module to communicate digitally with smart field devices, allowing the control system to access secondary variables (e.g., temperature compensation from a pressure transmitter), device diagnostics, and configuration parameters simultaneously with the primary 4-20 mA signal .

• High-Precision 12-Bit Signal Conversion: Utilizing a 12-bit analog-to-digital converter, the HAI805 delivers accurate digital representation of analog process variables with a typical accuracy of 0.10% for current signals, ensuring reliable data for critical control loops .

• Flexible Signal Input Configuration: Each of the eight channels can be independently configured to accept standard industrial analog signals, specifically 4-20 mA current loops and 0-10 VDC voltage signals, providing versatility to interface with a wide range of sensors and transmitters without additional hardware .

• Fast and Deterministic Scanning: The module completes an analog-to-digital conversion scan of all eight channels within 100 milliseconds. This rapid, deterministic update rate ensures that the control system receives timely process data, which is essential for responsive regulation and monitoring .

• Robust Industrial Design with Wide Temperature Tolerance: Built for reliability in harsh conditions, the HAI805 operates flawlessly across an extended temperature range of -20°C to +60°C. Its design incorporates high immunity to vibration and electromagnetic interference, meeting standards like IEC 61000-6-2 for industrial environments .

• Seamless Integration with Symphony Plus DCS: As a native S+ I/O module, the HAI805 is designed for plug-and-play integration with Symphony Plus controllers (e.g., HPC800) via the high-speed S+ I/O bus. It supports redundant communication architectures using HN800 fiber optic links for enhanced system availability and long-distance transmission .

• Modular and Space-Efficient Form Factor: The module’s compact dimensions and lightweight construction (0.56 kg with base) allow for high-density mounting on standard DIN rails, optimizing space within control cabinets and simplifying system layout and expansion .

Typical Applications

The ABB HAI805 analog input module is deployed across a wide spectrum of process industries where accurate, reliable, and intelligent signal acquisition is paramount.

• Power Generation Industry: Extensively used in thermal, gas, and nuclear power plants to monitor critical parameters. It interfaces with pressure transmitters on steam lines, temperature sensors in boilers and turbines, and flow meters for fuel and feedwater, providing essential data for combustion control, turbine protection, and emissions monitoring .

• Oil and Gas Sector: Deployed in upstream production (wellhead monitoring), midstream pipeline transportation (pressure and flow surveillance), and downstream refining processes. The module’s HART capability is particularly valuable for remotely diagnosing and configuring smart positioners on control valves and multivariable transmitters in hazardous areas .

• Chemical and Petrochemical Processing: In chemical plants and refineries, the HAI805 monitors critical process variables such as reactor temperature, distillation column pressure, and catalyst flow rates. Its high accuracy and channel isolation ensure precise control and safe operation of continuous and batch chemical processes .

• Water and Wastewater Treatment: Applied in treatment facilities to monitor and control processes. It collects data from flow meters for influent/effluent tracking, pressure sensors on filtration systems, and level transmitters in clarifiers and storage tanks, enabling automated plant control and regulatory reporting .

• Pharmaceutical and Biotechnology: Used in facilities requiring strict environmental control and batch consistency. The module monitors critical process parameters (CPPs) like temperature, pressure, and flow in bioreactors, purification skids, and clean-in-place (CIP) systems. Its accuracy and diagnostic capabilities support validation and quality assurance requirements .

• Metals and Mining: In mineral processing and metal production, the module monitors parameters such as slurry density in thickeners, pressure in flotation cells, and temperature in smelting operations, providing reliable data for process optimization and equipment protection .

• Food and Beverage Industry: Employed in automated production lines to monitor and control critical parameters like pasteurization temperature, tank fill levels, and ingredient flow rates, ensuring product quality, safety, and process efficiency .
