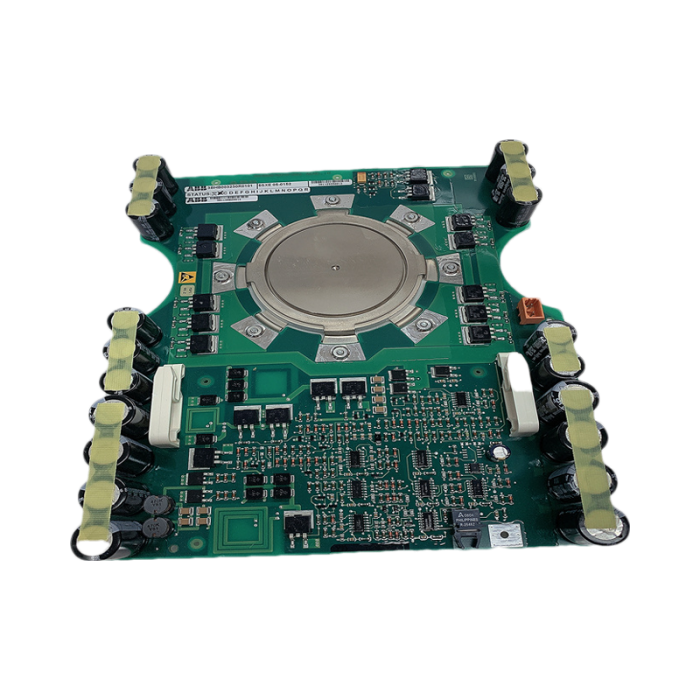

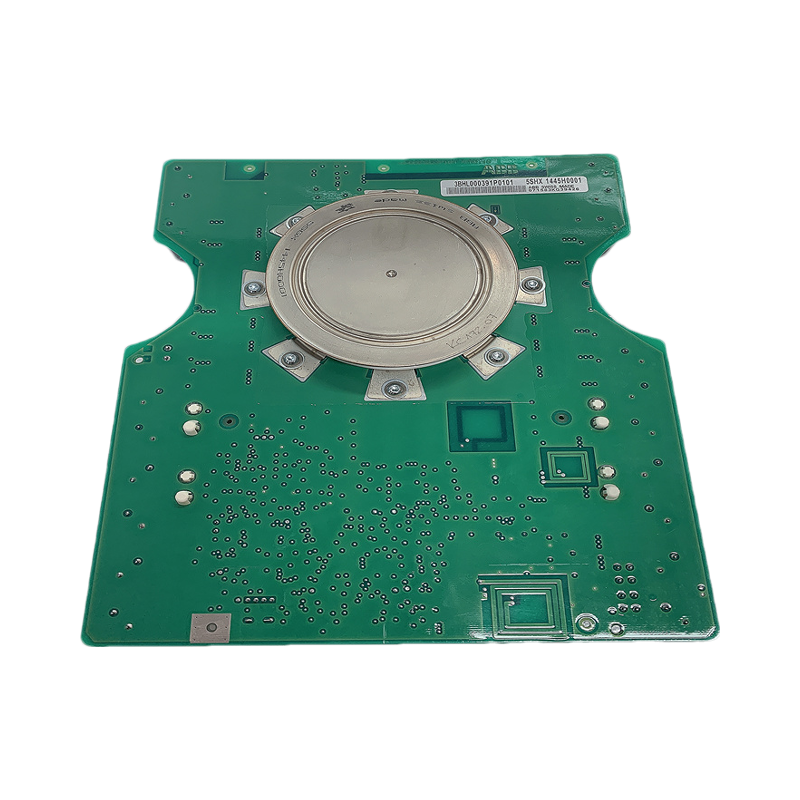

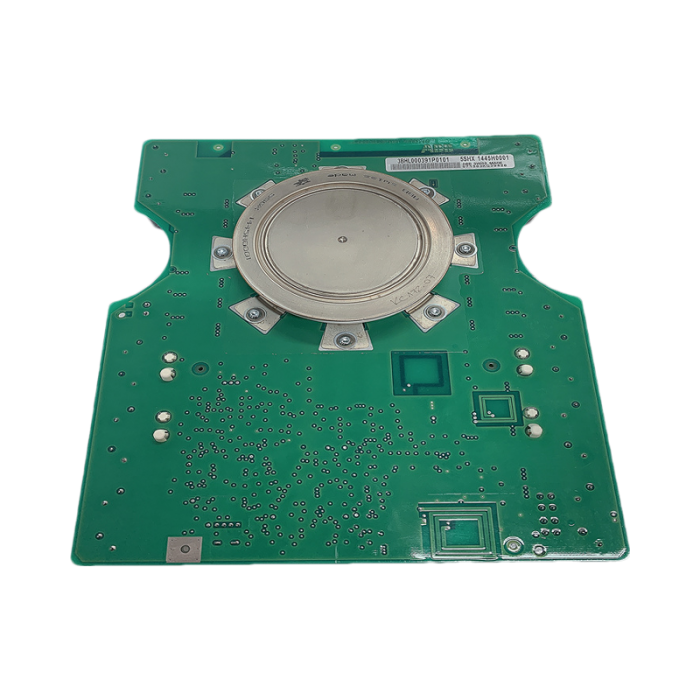

ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101

Electrical Specifications

• Input Control Voltage: 24 VDC (typical), with a tolerance range of 18 VDC to 32 VDC.
• Gate Drive Output Voltage: Adjustable for IGBT/GTO compatibility; typical ranges include +15 VDC (on-state) and -10 VDC (off-state) to ensure reliable device switching.
• Gate Drive Current: Up to 10 A peak (sourcing) and 15 A peak (sinking) to support fast switching of high-power semiconductors (rated for IGBT modules up to 6.5 kV / 2 kA).
• Isolation Voltage: 6 kV RMS (between low-voltage control circuit and high-voltage power circuit) for safety and noise immunity.
• Power Consumption: 5 W (typical) under normal operating conditions; 10 W (maximum) during peak switching events.

Environmental Specifications

• Operating Temperature Range: -40 °C to +85 °C (ambient); supports operation in temperature-fluctuating industrial environments.
• Storage Temperature Range: -40 °C to +105 °C.
• Humidity Resistance: 95% relative humidity (non-condensing) at 40 °C, compliant with IEC 60068-2-3 environmental standards.
• Vibration Resistance: 5 g (10 Hz to 500 Hz) per IEC 60068-2-6, suitable for installation in machinery or plant floors with mechanical vibration.

Physical Specifications

• Dimensions (L x W x H): 120 mm x 80 mm x 40 mm (compact form factor for integration into ABB’s standard power converter cabinets).
• Weight: 250 g (approximate), enabling easy mounting in space-constrained enclosures.
• Mounting Type: DIN rail mounting or screw-on panel mounting (compatible with ABB’s standard cabinet mounting brackets).

3. Function Characteristics

• Precise Gate Signal Control: Generates stable, high-speed gate drive signals with adjustable rise/fall times (50 ns to 200 ns) to optimize semiconductor switching performance, minimize switching losses, and reduce electromagnetic interference (EMI).
• Comprehensive Protection Mechanisms:
  • Overcurrent Protection (OCP): Detects excessive current in the power semiconductor and triggers an immediate gate turn-off within 1 µs to prevent device damage.
  • Overvoltage Protection (OVP): Monitors DC-link voltage and clamps transient voltages to protect semiconductors from voltage spikes.
  • Thermal Protection: Integrates a temperature sensor to monitor the module’s internal temperature; triggers an alarm or shutdown if temperatures exceed the safe threshold (+85 °C).
  • Undervoltage Lockout (UVLO): Disables gate drive output if the input control voltage drops below 18 VDC to avoid unstable semiconductor operation.
• Real-Time Status Monitoring: Provides digital feedback (via CANbus or Ethernet) to the system controller, including gate driver status (normal/fault), semiconductor temperature, and input voltage levels, enabling predictive maintenance and system diagnostics.
• High Noise Immunity: Incorporates optical isolation and EMI filtering in the control circuit to reject electrical noise from high-voltage power circuits, ensuring reliable communication with the low-voltage control system.
• ABB System Compatibility: Designed as a drop-in component for ABB’s MV drives (e.g., ACS 6000), HV converters (e.g., PCS 6000), and industrial rectifiers, ensuring seamless integration without additional modification.

4. Application Scenarios

• Medium-Voltage Industrial Drives: Used in ABB’s ACS 6000 series MV drives for controlling large motors in industries such as steel, mining, and cement. It drives IGBTs to regulate motor speed, improving energy efficiency and process control.
• High-Voltage Power Converters: Integrated into ABB’s PCS 6000 grid-connected converters for renewable energy systems (solar, wind) and energy storage. It controls power flow between the renewable energy source and the electrical grid, ensuring grid stability.
• Industrial Rectifiers and Choppers: Applied in ABB’s rectifier systems for electrochemical processes (e.g., aluminum smelting, electroplating) and DC motor drives. It regulates DC output voltage/current to meet process requirements.
• Marine and Offshore Power Systems: Deployed in ABB’s marine MV drives for ship propulsion systems and offshore platform power distribution. Its rugged design withstands harsh marine environments (humidity, vibration, temperature extremes).
• Grid Infrastructure: Used in ABB’s static var compensators (SVC) and flexible AC transmission systems (FACTS) to enhance power grid stability, reduce voltage fluctuations, and improve power quality.
