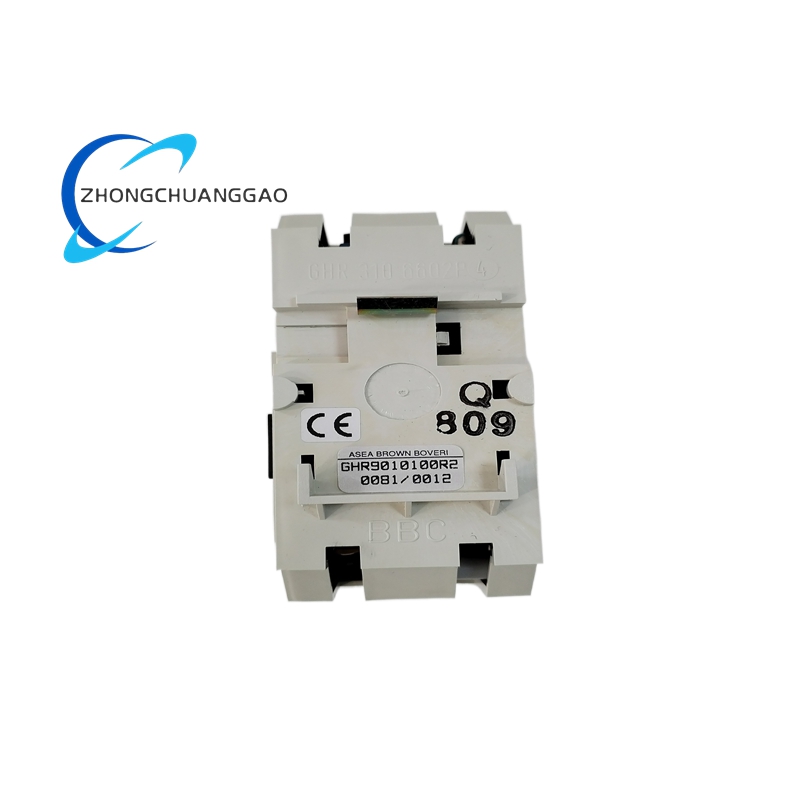

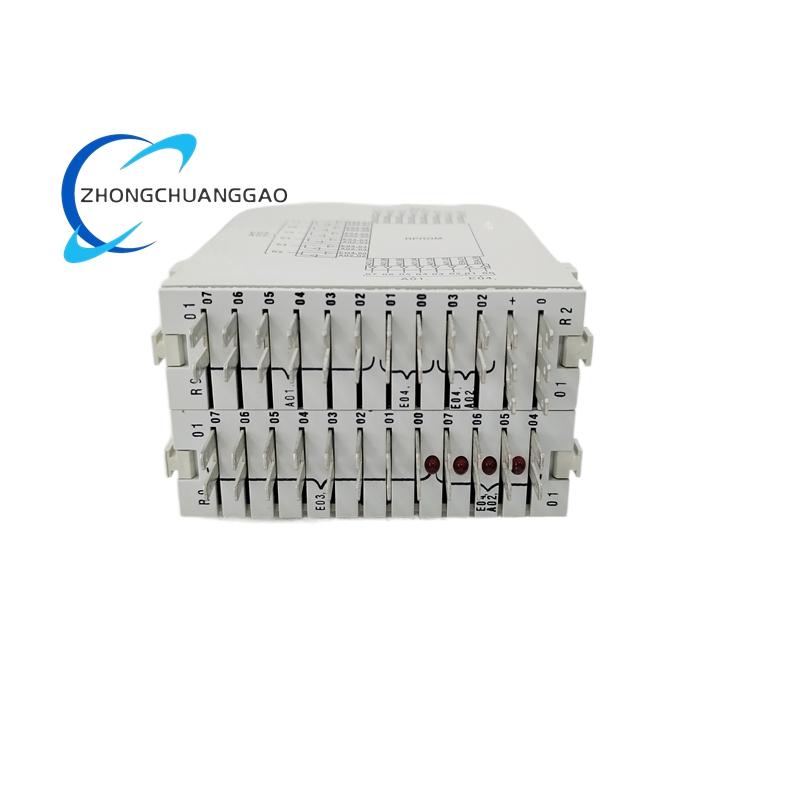

ABB GHR9010100R0002

Description

Technical Specifications

The ABB GHR9010100R0002 features comprehensive technical specifications reflecting its advanced engineering for critical power generation applications :

Key Features and Advantages

The ABB GHR9010100R0002 is distinguished by its comprehensive feature set, engineered to meet the most demanding requirements for generator protection in modern power systems.

Multi-Layer Generator Protection

The device provides 20+ protection functions including comprehensive generator protection elements . Key protection capabilities include:

• 100% Stator Ground Fault Detection: Utilizes third-harmonic voltage monitoring to detect ground faults across the entire stator winding, eliminating blind spots found in conventional protection schemes

• Sensitive Directional Neutral Overcurrent: Provides precise detection of ground faults with enhanced sensitivity for early fault identification

• Adaptive Differential Protection: Automatically compensates for current transformer saturation during severe faults, maintaining protection integrity even under extreme fault conditions

• Loss-of-Field Protection (40): Detects excitation system failures that could lead to generator instability and damage

• Reverse Power Protection (32): Prevents motoring conditions that can damage prime movers in turbine-generator systems

Grid Compliance and Synchrophasor Technology

The GHR9010100R0002 features integrated Phasor Measurement Unit (PMU) functionality compliant with IEEE C37.118-2005/2011 standards . This advanced capability enables:

• Real-Time Grid Stability Monitoring: Continuous assessment of power system dynamics through high-speed phasor measurements

• NERC PRC-002 Compliance: Meets North American Electric Reliability Corporation requirements for disturbance monitoring and reporting

• Oscillation Detection: Identifies power system oscillations that could cause torsional stress on generator shafts, enabling preventive action

• GPS Synchronization: Delivers 30/60 frames-per-second phasor measurements synchronized to GPS via IRIG-B or PPS timing signals

Cybersecurity and Communication Robustness

The device incorporates comprehensive cybersecurity features essential for modern critical infrastructure protection :

• Hardware-Enforced IEC 62351 Security: Provides robust security for GOOSE messaging in IEC 61850 networks

• Role-Based Access Control: Restricts configuration and operational access based on user roles and permissions

• Audit Trails: Maintains comprehensive logs of all access and configuration changes for security compliance

• Dual Ethernet Ports: Support Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR) for zero-packet-loss communication in mission-critical applications

Advanced Logic and Coordination Capabilities

The integrated engineering tools enable sophisticated protection scheme customization :

• Continuous Function Chart (CFC) Editor: Allows creation of custom protection and control logic without requiring additional PLCs or external devices

• Sequence of Events (SOE) Recording: Captures 1024 events with 1ms resolution for detailed forensic analysis of system disturbances and protection operations

• Disturbance Recording: High-resolution oscillography captures waveforms for post-event analysis and protection system validation
