Product Short Description
Product Introduction

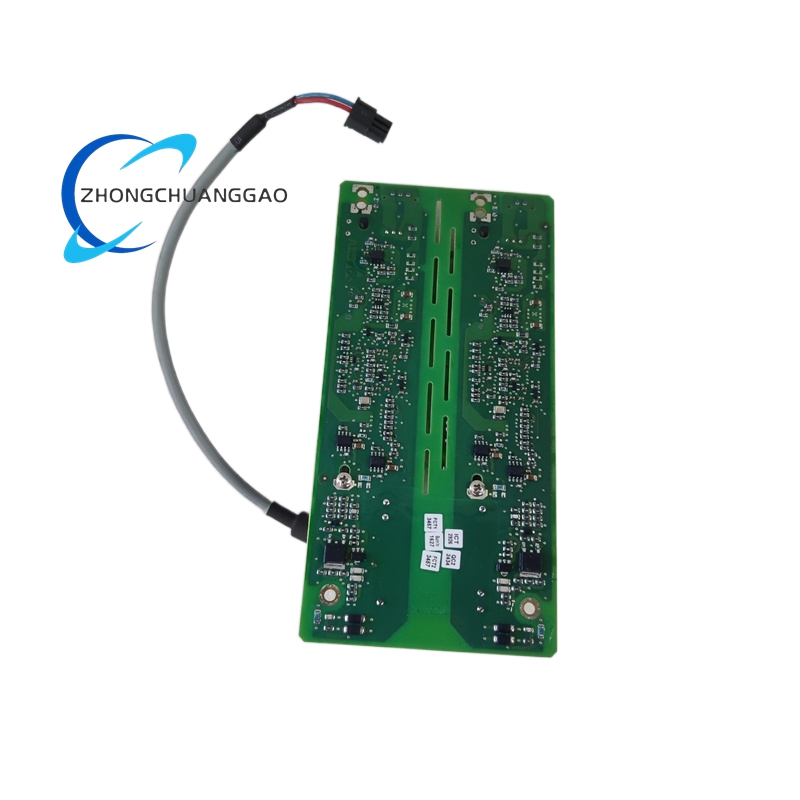

The ABB 3BHE044249R0003 (GDC806C0003) is a high‑performance, industrial‑grade main control module designed as the core processing unit for ABB’s medium‑voltage variable‑frequency drive systems. It serves as the central intelligence hub, executing advanced motor control algorithms, processing real‑time feedback data, managing power semiconductor gate drive signals, and coordinating system‑level protection logic. Built with robust industrial components and rigorous quality validation, this module delivers exceptional processing speed, signal accuracy, and operational reliability, ensuring precise, stable, and safe control of high‑power motors in demanding industrial environments. It integrates seamlessly with ABB’s drive ecosystem, supporting comprehensive diagnostics, communication, and system management functions.
Description
Technical Specifications
Electrical & Power Parameters
- Supply Voltage: 24 VDC (nominal, 18–32 VDC wide operating range)
- Power Consumption: ≤ 25 W (typical full‑load operation)
- Isolation Voltage: 2500 V AC (galvanic isolation between control and power circuits)
- Input Signal Types: Analog feedback (voltage, current, speed), digital status, encoder position signals
- Output Signal Types: IGBT gate drive signals, relay control outputs, fault indication signals
- Control Loop Update Rate: Sub‑millisecond (≤ 500 μs) for high‑precision motor control
- Fault Response Time: < 1 μs for critical overcurrent/short‑circuit protection
- EMC Compliance: IEC 61800‑6‑2, IEC 61800‑6‑4 (industrial electromagnetic compatibility standards)
- Protection Features: Over‑voltage, over‑current, short‑circuit, over‑temperature, reverse polarity, and earth‑fault protection
Mechanical & Environmental
- Form Factor: Compact multi‑layer PCB module for rack/slot mounting in medium‑voltage drive cabinets
- Dimensions: 220 mm × 160 mm × 30 mm (L × W × H)
- Weight: Approximately 0.8 kg
- Operating Temperature: -40°C to +70°C (extended industrial range)
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non‑condensing)
- Ingress Protection: IP20 (designed for indoor industrial cabinet installation)
- Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock) standards
- Environmental Coating: Conformal coating for resistance to moisture, dust, and industrial contaminants
- Certifications: CE, RoHS, ABB drive system compatibility, and IEC 61800‑7
Processing & Communication
- Processing Core: High‑performance industrial microcontroller with floating‑point arithmetic unit
- Memory: Onboard non‑volatile memory for parameter storage, fault logs, and system configuration
- Communication Interfaces: RS‑485 (Modbus RTU), CANopen, Ethernet (Modbus TCP), and proprietary ABB drive bus
- Protocol Support: Modbus RTU/TCP, CANopen, Profibus DP, and ABB ACS drive native protocols
- System Compatibility: Fully integrated with ABB ACS2000, ACS6000, and other medium‑voltage drive series
- Diagnostics: Built‑in self‑diagnostics, real‑time status monitoring, and comprehensive fault logging
- Software Compatibility: Configurable via ABB DriveStudio, ACS Toolbox, and drive commissioning software
Key Features
- Centralized Drive Control: Acts as the main processing unit, executing advanced vector control and direct torque control algorithms for precise motor performance.
- High‑Speed Processing: Sub‑millisecond control loop updates enable rapid response to load changes and dynamic operating conditions.
- Multi‑Layer Protection: Instant fault detection and isolation for overcurrent, short‑circuit, and overtemperature, safeguarding power semiconductors and motors.
- Superior Signal Isolation: Galvanic isolation eliminates electrical noise and protects low‑voltage control circuits from high‑voltage transients.
- Comprehensive Communication: Supports multiple industrial protocols for seamless integration with SCADA, PLC, and plant automation systems.
- Advanced Diagnostics: Real‑time monitoring, fault logging, and status indication simplify troubleshooting and reduce downtime.
- Industrial Ruggedness: Wide temperature range and conformal coating ensure reliable operation in harsh industrial environments.
- Seamless Integration: Plug‑and‑play compatibility with ABB medium‑voltage drives simplifies installation, commissioning, and maintenance.
- Long‑Term Reliability: Industrial‑grade components and rigorous testing ensure extended service life with minimal maintenance.
- Flexible Configuration: User‑programmable parameters and customizable control logic adapt to diverse motor and application requirements.
Application Scenarios
- Medium‑Voltage Drive Systems: Core control module for ABB ACS2000, ACS6000, and other medium‑voltage variable‑frequency drives.
- Metallurgical Industry: Control for high‑power motors in steel rolling mills, electric arc furnaces, and continuous casting lines.
- Power Generation: Motor control for fans, pumps, compressors, and auxiliary systems in thermal, hydroelectric, and wind power plants.
- Oil & Gas Refining: Precise control for pumps, compressors, extruders, and pipeline transportation systems.
- Mining & Cement: Drive control for crushers, mills, kilns, conveyors, and material handling equipment.
- Marine & Offshore: Propulsion and auxiliary motor control for large vessels, drilling rigs, and offshore platforms.
- Pulp & Paper: High‑voltage motor control for paper machines, digesters, and drying systems.
- Water & Wastewater: Control for large pumps, blowers, and treatment process equipment in water distribution networks.
- Chemical & Petrochemical: Drive control for reactors, mixers, and process pumps in chemical production facilities.
