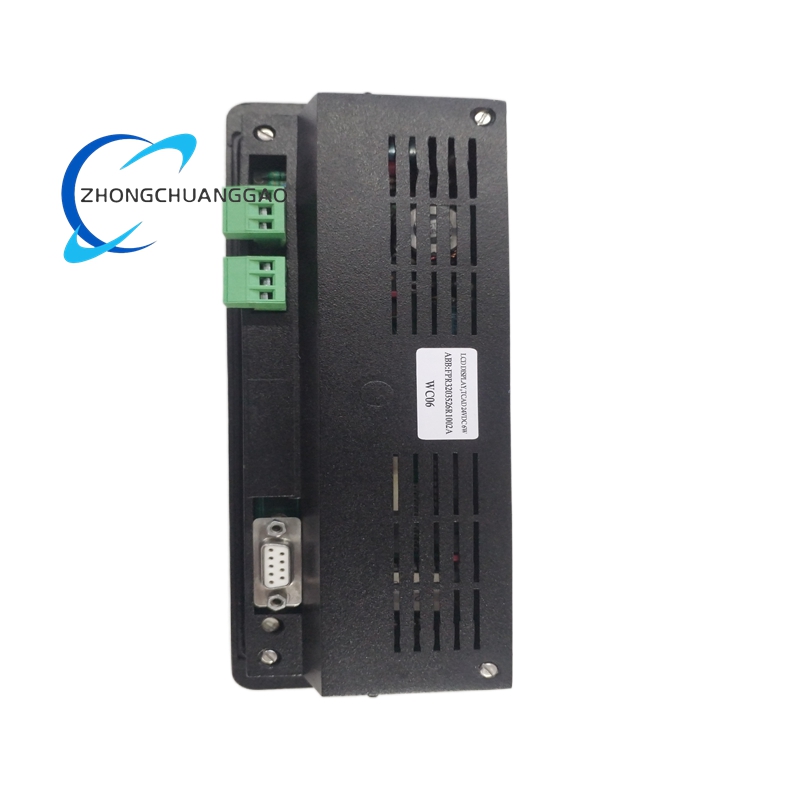

ABB FPR3203526R1002A Industrial Automation Controller

Description

Key Technical Specifications

• Manufacturer: ABB Group

• Part Number: FPR3203526R1002A

• Product Type: Freelance 800F Process Controller

• Power Requirements: 24V DC ±15% (dual redundant inputs)

• Maximum Power Consumption: 120W

• Digital I/O: 16 configurable digital inputs

• Analog I/O: 8 configurable analog inputs (4-20mA / 0-10V)

• Communication Interfaces:

  • 2x Ethernet ports (Modbus TCP support)

  • Profibus DP

  • RS485

• Dimensions (H x W x D): 140mm × 180mm × 60mm

• Weight: 1.2 kg

• Mounting: 35mm DIN rail (IEC 60715 standard)

• Operating Temperature: -25°C to +70°C (no derating required)

• Protection Rating: IP20

• MTBF (Mean Time Between Failures): 120,000 hours

• Certifications:

  • CE marked per EMC Directive 2014/30/EU

  • Machinery Directive 2006/42/EC

  • UL 61010-1 certified

  • RoHS 3 compliant

  • ISO 9001:2015 manufacturing

Core Features

• Redundant Power Inputs for High Availability: The controller features dual redundant 24V DC power inputs, ensuring continuous operation during brownouts and power fluctuations . This redundancy alone prevents multiple production stoppages annually in facilities with unstable grid conditions, providing exceptional system reliability for continuous processes.

• Hot-Swappable I/O Modules: The FPR3203526R1002A supports hot-swapping of I/O modules, allowing faulty components to be replaced without shutting down the production line . This capability preserves production continuity during maintenance and enables critical repairs to be performed during active batch operations, potentially saving hundreds of thousands in prevented waste.

• Comprehensive Industrial Protocol Support: Native support for Profibus DP and Modbus TCP enables seamless integration with legacy PLCs and existing automation infrastructure . The controller typically integrates with older systems in under two hours, eliminating the need for expensive custom gateways and reducing engineering time during system expansion.

• Advanced Predictive Diagnostics: Real-time health monitoring with predictive alert capabilities detects potential failures before they occur . The system’s diagnostic intelligence caught a failing power supply at a water treatment facility before it could cause overflow, demonstrating how predictive maintenance pays for itself through prevented incidents.

• Wide Operating Temperature Range: The controller operates reliably from -25°C to +70°C without derating, making it suitable for both extreme cold and hot industrial environments . This wide temperature tolerance eliminates the need for special environmental enclosures in many applications.

• Modular and Space-Efficient Design: The compact form factor (140mm × 180mm × 60mm) and lightweight construction (1.2kg) optimize control cabinet space utilization . The modular architecture facilitates straightforward installation, maintenance, and future system expansion to accommodate evolving process requirements .

• Built-in Audit Trail for Regulatory Compliance: For regulated industries, the controller includes built-in audit trail functionality that simplifies FDA validation and regulatory compliance documentation . This feature saved a dairy processing client three weeks of paperwork during validation, significantly reducing compliance overhead.

• High Reliability Construction: Premium materials and ISO 9001:2015 certified manufacturing processes ensure exceptional product longevity . With a 120,000-hour MTBF, the controller minimizes emergency service calls and provides dependable 24/7 operation in continuous process environments .

• Spring-Clamp Terminal Connections: Wiring terminals accept 0.2-2.5mm² wires with spring-clamp technology, providing secure connections even in vibration-prone industrial environments . Ferrules are recommended for installations subject to continuous mechanical vibration.

• Comprehensive Protection Features: The module incorporates multiple protection mechanisms including overvoltage protection, overcurrent protection, and short-circuit protection to safeguard both the controller and connected field devices from electrical faults .

• Compatibility with ABB Ecosystem: Seamless integration with ABB’s System 800xA and other ABB automation solutions avoids costly middleware and simplifies system architecture . This native compatibility reduces engineering hours during commissioning and offsets initial investment within one project cycle.

Typical Applications

The ABB FPR3203526R1002A process controller is deployed across diverse industries requiring high-reliability automation for critical processes.

• Water and Wastewater Treatment: In water treatment facilities, the controller handles sudden flow surges during monsoon seasons without performance degradation . It maintains precise chemical dosing for disinfection and pH control, ensuring consistent water quality despite varying influent conditions. The predictive diagnostics prevent overflow incidents by detecting equipment anomalies before failure.

• Chemical and Petrochemical Processing: Within chemical plants and oil refineries, the controller manages burner management systems where milliseconds matter for safe operation . It precisely regulates reactor temperatures, pressures, and flow rates for complex chemical reactions, maintaining process stability through power fluctuations that would compromise lesser systems.

• Food and Beverage Manufacturing: Food manufacturers rely on the controller’s hygienic design (IP20 rating) for washdown environments . The built-in audit trail functionality dramatically simplifies FDA validation for food safety compliance, reducing paperwork requirements and accelerating regulatory approvals for new products.

• Pharmaceutical Production: In pharmaceutical manufacturing, the controller maintains precise environmental conditions for drug production . One pharmaceutical client recently fixed a temperature sensor issue during an active batch run using hot-swappable I/O, saving approximately $85,000 in potential product waste.

• Power Generation and Distribution: The controller serves in power generation facilities for turbine control, boiler management, and emissions monitoring . Its redundant power inputs ensure continuous operation during grid disturbances, maintaining critical generation assets online when grid stability is compromised.

• Oil and Gas Industry: In upstream and midstream oil and gas operations, the controller manages pipeline pressure regulation, compressor station control, and emergency shutdown systems . The wide operating temperature range allows deployment in remote, unenclosed locations without climate control.

• Manufacturing and Production Lines: Automotive manufacturing facilities use the controller for paint shop environmental control, assembly line coordination, and quality assurance systems . The modular design enables easy reconfiguration as production requirements change.

• Mining and Minerals Processing: In mining operations, the controller manages conveyor systems, crusher optimization, and slurry pump control in harsh, dusty environments . The robust construction withstands the vibration and particulate contamination typical of mining applications.

• Pulp and Paper Industry: Paper mills deploy the controller for continuous digester control, bleach plant optimization, and paper machine coordination . The high MTBF ensures minimal unplanned downtime in these continuous 24/7 operations.

• Infrastructure and Transportation: The controller supports railway signaling systems, tunnel ventilation control, and intelligent grid management for critical infrastructure applications requiring fail-safe operation .

Installation and Maintenance Guidelines

Mounting Requirements: Install the controller on standard 35mm DIN rail per IEC 60715 specifications . Maintain at least 50mm clearance above and below the module for adequate airflow and heat dissipation. Proper ventilation is essential—keeping ambient temperature below 55°C ensures full operational lifespan.

Wiring Specifications: The spring-clamp terminals accept wire sizes from 0.2mm² to 2.5mm² . For installations in vibration-prone areas, use ferrules on stranded wires to ensure secure, long-term connections. Follow all applicable electrical codes and safety regulations during installation.

Environmental Considerations: While the controller operates from -25°C to +70°C, locating it away from direct heat sources and ensuring adequate cabinet ventilation optimizes longevity . Avoid installing near high-vibration equipment without proper isolation.

Maintenance Procedures: Perform quarterly inspections of terminal torque and visual condition checks . Schedule firmware updates during planned maintenance shutdowns—the web-based interface makes update procedures straightforward. Never use compressed air for cleaning, as static discharge could damage communication ports.

Commissioning: The controller’s native compatibility with ABB’s System 800xA streamlines configuration and commissioning . Engineering teams typically complete integration within standard project timelines, with reduced debugging requirements compared to multi-vendor solutions.

Quality Assurance and Support

Warranty Coverage: ABB provides comprehensive 365-day warranty coverage that extends beyond manufacturing defects to include field calibration errors . This inclusive warranty reduces risk during installation and initial operation.

Technical Support: On-site technical support is available for configuration issues during the warranty period . ABB’s global support network ensures responsive assistance regardless of installation location.

Manufacturing Quality: The controller is manufactured in ISO 9001:2015 certified facilities with meticulous traceability throughout production . The Turku, Finland manufacturing plant maintains rigorous quality control standards verified through regular audits.
