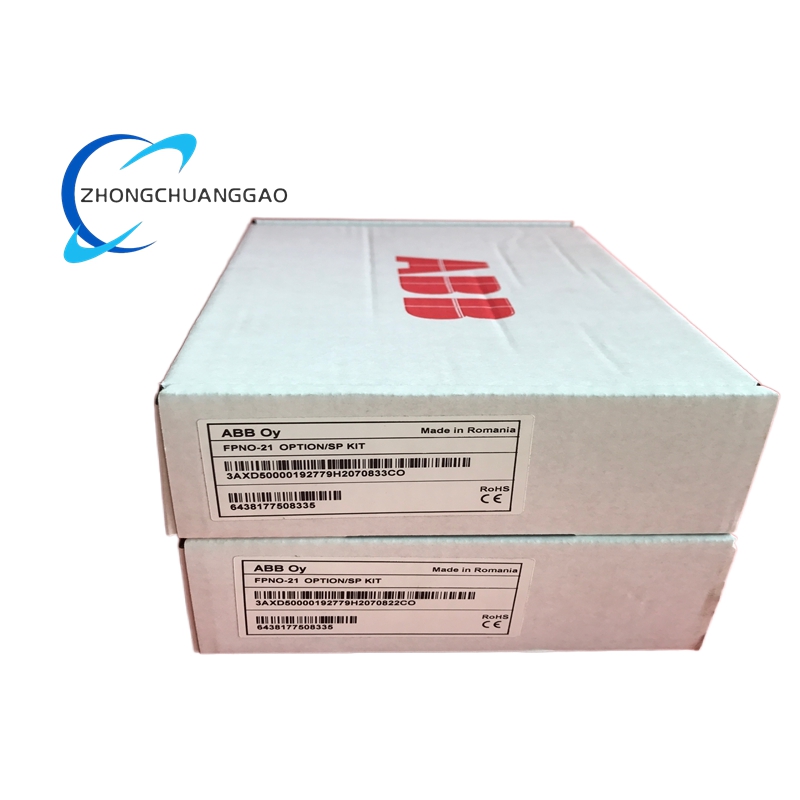

ABB FPNO-21 PROFINET IO Adapter Module

Description

Technical Specifications

• Product Type: PROFINET IO Communication Adapter Module
• Certification: PROFINET Conformance Class B (CC-B)ABB Group
• Communication Interface: 2 x RJ-45 Ports (X1, X2) acting as an embedded switchABB Group
• Data Transfer Rate: Auto-negotiation 10/100 Mbps, Full-Duplex
• Supported Protocols: PROFINET IO (RT), PROFIdrive, ABB Drives Profile, PROFIsafeABB Group
• Network Topology: Supports line, star, and ring topologies (via MRP)ABB Group
• Media Redundancy: Media Redundancy Protocol (MRP) supportABB Group
• System Redundancy: S2 System Redundancy (primary/backup controller)ABB Group
• Shared Device: Supports separate controllers for Drive Control and PROFIsafeABB Group
• Power Supply: Internally powered by the host drive (no external power required)
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% – 95% RH (Non-condensing)
• Protection Degree: IP20
• Dimensions (W × H × D): 64 mm × 67 mm × 29 mmABB Group
• Weight: 0.049 kgABB Group
• Mounting: Direct slot-mounting into ABB drive option slots
• Standards & Certifications: CE, UL 508, RoHS, PROFINET CertifiedABB Group
• Additional Features: Integrated web server for configuration & diagnostics, OPC UA supportABB Group

Key Features & Benefits

1. Advanced PROFINET Performance
   • CC-B Certified for full compliance with PROFINET standards, guaranteeing interoperability with all major PROFINET controllersABB Group.
   • Supports PROFIdrive profile for standardized drive communication and ABB Drives profile for enhanced, native functionalityABB Group.
   • Enables PROFIsafe integration, allowing for safe communication of safety-related signals over the same networkABB Group.
   • Delivers deterministic, real-time data transfer critical for high-performance drive control applications.
2. Integrated Switch & Network Flexibility
   • Dual RJ-45 ports function as an embedded 2-port switch, eliminating the need for external switches in daisy-chain setupsABB Group.
   • Supports Media Redundancy Protocol (MRP), creating self-healing ring networks for maximum uptimeABB Group.
   • Facilitates easy network deployment with support for line, star, and ring topologiesABB Group.
   • Auto-negotiating ports ensure seamless connection to various network infrastructures.
3. High-Reliability Redundancy Features
   • Implements S2 System Redundancy, allowing connection to two controllers (primary and backup) for uninterrupted operationABB Group.
   • Shared Device functionality permits one controller for standard drive control and another for safety-related PROFIsafe tasksABB Group.
   • Fast switchover times ensure no loss of control or process interruption during redundancy activation.
   • Critical for high-availability applications in process and infrastructure industriesABB Group.
4. Simplified Installation & Maintenance
   • Tool-free slot-mounting design for quick installation into compatible ABB drives.
   • Easy station naming via the PLC programming environment using index parametersABB Group.
   • Drive replacement is simplified; the PROFINET station name is stored in the drive’s backup fileABB Group.
   • Integrated web server enables browser-based configuration, monitoring, and diagnostics without specialized software.
5. Comprehensive Diagnostics & Monitoring
   • On-board diagnostic LEDs provide instant visual feedback on power, network status, and faults.
   • Detailed diagnostic data accessible via the drive’s control panel, fieldbus, or web server.
   • Supports OPC UA for secure, standardized condition monitoring and asset managementABB Group.
   • Proactive fault detection minimizes downtime and simplifies troubleshooting.
6. Robust Industrial Design
   • Compact, lightweight form factor optimizes space in control cabinetsABB Group.
   • Wide operating temperature range and high resistance to vibration and shock.
   • Complies with strict EMC standards for reliable operation in electrically noisy environments.
   • Internally powered design reduces wiring complexity and potential failure points.

Application Scenarios

• Automotive Manufacturing
  • Real-time control of drives in assembly lines, robotic cells, and paint shops.
  • Seamless integration with Siemens PLC-based production systems.
  • Precise synchronization of conveyors, lifts, and material handling equipment.
• Food & Beverage Industry
  • Control of packaging machines, fillers, and mixers in hygienic environments.
  • Remote parameterization and monitoring via PROFINET for flexible production lines.
  • Safe speed control and safety stop functions using PROFIsafe.
• Water & Wastewater Treatment
  • Efficient control of pumps, blowers, and valves with PROFINET connectivity.
  • Integration into SCADA systems for remote monitoring and process optimization.
  • Reliable operation in harsh, humid environments.
• Material Handling & Logistics
  • High-performance control for conveyors, cranes, and automated storage systems.
  • MRP ring topology ensures uninterrupted material flow in distribution centers.
  • Fast and precise positioning with PROFIdrive profile.
• Metals & Mining
  • Heavy-duty drive control in rolling mills, crushers, and conveyors.
  • System redundancy (S2) ensures continuous operation in critical processes.
  • Robust design withstands extreme temperatures, dust, and vibration.
• Oil & Gas / Petrochemical
  • Integration of drives in compressors, pumps, and process systems.
  • PROFIsafe enables safe shutdowns in hazardous areas.
  • OPC UA provides secure data for asset management and predictive maintenance.
