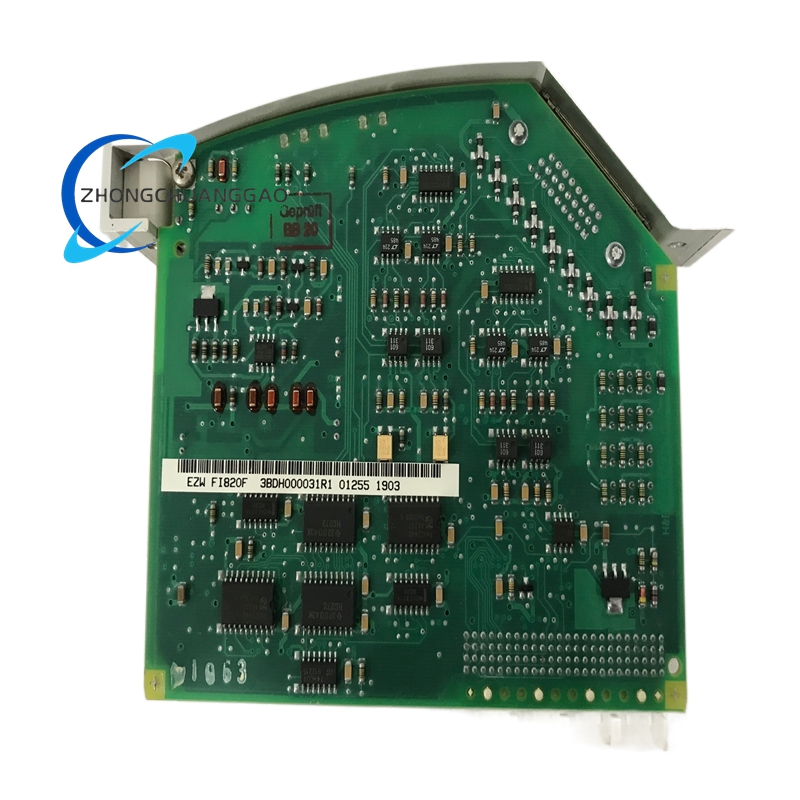

ABB FI820F Dual-Channel Serial Fieldbus Interface Module

Technical Specifications

Functional Features

1. Dual Independent Channel Architecture
   • Dual-Channel Operation: Two completely separate serial channels operate simultaneously, enabling connection to two distinct field networks or device groups without interference.
   • Per-Channel Configuration: Each channel independently configurable for interface type (RS232/RS422/RS485), protocol, and baud rate, maximizing system design flexibility.
   • Channel Isolation: Full galvanic isolation between both channels and between field/controller sides eliminates ground loops and cross-channel electrical interference.
   • Simultaneous Protocol Support: Runs different protocols on each channel (e.g., Modbus RTU on Channel 1, generic serial on Channel 2) for diverse device integration.
2. Multi-Interface & Protocol Compatibility
   • Triple Interface Support: Dynamic selection between RS232, RS422, and RS485 via cable configuration, adapting to all common serial device interfaces.
   • Wide Protocol Coverage: Native support for Modbus RTU/ASCII (industry-standard for industrial communication) and Sartorius balance protocols, with generic serial mode for custom devices.
   • Long-Distance Communication: RS485/RS422 modes support cable lengths up to 1,200 meters at low baud rates, ideal for distributed field installations.
   • Multi-Drop Capability: RS485 interface supports up to 32 serial devices on a single bus, reducing wiring complexity and installation costs.
3. Industrial-Grade Reliability & Safety
   • High Isolation Voltage: 500V AC isolation voltage protects the controller and module from voltage transients, surge voltages, and electrical faults in field wiring.
   • Extreme Environment Durability: Operates reliably across -40°C to +70°C temperature range and withstands high vibration, shock, and humidity common in industrial settings.
   • Surge & EMC Protection: Built-in surge suppression and electromagnetic compatibility (EMC) filtering resist electromagnetic interference (EMI) and radio-frequency interference (RFI).
   • Short-Circuit Protection: Each channel features electronic short-circuit protection that automatically disables faulty channels without affecting system operation.
4. Hot-Swappable & Easy Installation
   • Hot-Swap Capability: Full hot-swappable design allows installation, removal, or replacement during system operation without powering down the controller.
   • Plug-and-Play Integration: Directly inserts into any available slot (F1–F4) of AC 800F controller with automatic backplane connection, no external wiring required for power.
   • Front-Access Terminals: All field wiring terminals are front-facing with captive screw terminals for secure, fast connections and simplified maintenance.
   • Compact Design: Slim, space-efficient form factor minimizes control cabinet space usage while maximizing communication capacity.
5. Advanced Diagnostics & Status Monitoring
   • LED Status Indicators: Dedicated LEDs per channel show TX/RX activity, communication status, fault conditions, and power status for instant visual feedback.
   • Real-Time Fault Detection: Continuously monitors for line breaks, short circuits, protocol errors, and device timeouts with automatic fault reporting to the controller.
   • Diagnostic Data Logging: Records communication errors, signal quality, and operational statistics for predictive maintenance and troubleshooting.
   • Controller Integration: Full diagnostic integration with AC 800F system allows remote monitoring via control panel or engineering software without physical access.
6. Flexible System Integration
   • Legacy Device Connectivity: Enables seamless integration of older RS232/RS422/RS485 equipment into modern AC 800F control systems.
   • Multi-Vendor Device Support: Communicates with third-party devices from all manufacturers supporting standard serial protocols.
   • Redundancy Support: Operates in redundant controller configurations, maintaining communication when switching between primary and backup controllers.
   • Easy Configuration: Fully configurable via AC 800F Freelance engineering software with intuitive parameter setup for all communication settings.

Application Scenarios

• Oil & Gas Industry
  • Communication with flow meters, pressure transmitters, and level sensors in oil refineries and pipeline monitoring systems.
  • Connection to valve actuators, pump controllers, and safety instrumented systems (SIS) in offshore platforms.
  • Data acquisition from tank gauging systems and custody transfer metering stations.
  • Integration with legacy wellhead control equipment and distributed monitoring systems.
• Chemical & Petrochemical Processing
  • Connectivity to analytical instruments, pH meters, and conductivity sensors in chemical production plants.
  • Control communication with dosing systems, mixers, and reactor control devices.
  • Data exchange with weighing systems and inventory management equipment.
  • Integration with safety systems and emergency shutdown (ESD) device networks.
• Power Generation & Distribution
  • Monitoring of transformers, switchgear, and circuit breakers in power substations.
  • Communication with turbine control systems and generator protection relays.
  • Data collection from smart meters, power quality analyzers, and energy management devices.
  • Integration with boiler control systems and emissions monitoring equipment.
• Water & Wastewater Treatment
  • Connection to flow monitors, level sensors, and pressure transmitters in water distribution networks.
  • Control communication with pump stations, valve actuators, and filter systems.
  • Data exchange with water quality analyzers and chemical dosing equipment.
  • Integration with SCADA systems for remote monitoring of treatment facilities.
• Pharmaceutical & Food & Beverage
  • Communication with batch processing systems and recipe management equipment.
  • Connection to weighing scales, filling machines, and packaging line controllers.
  • Data acquisition from temperature, humidity, and pressure monitoring systems.
  • Integration with clean-in-place (CIP) systems and utility monitoring equipment.
• Mining & Metals Processing
  • Control communication with conveyor systems, crushers, and material handling equipment.
  • Connection to ore analyzers, level sensors, and processing controllers.
  • Data exchange with motor control centers and variable speed drives.
  • Integration with safety monitoring systems and asset management platforms.
• Manufacturing & General Automation
  • Legacy machine integration in automotive assembly lines and material handling systems.
  • Communication with PLCs, HMIs, and specialized industrial controllers.
  • Data collection from production line sensors, counters, and barcode scanners.
  • Integration with building automation systems and HVAC controllers.

Key Advantages

• Dual Channel Flexibility: Doubles communication capacity with two independent, isolated channels in a single module slot.
• Universal Serial Compatibility: Supports all major serial interfaces and protocols for comprehensive field device connectivity.
• Superior Isolation & Protection: 500V isolation and industrial-grade durability ensure maximum uptime in harsh environments.
• Hot-Swappable Design: Minimizes downtime with in-service installation and replacement capability.
• Advanced Diagnostics: Comprehensive monitoring and fault detection simplify maintenance and troubleshooting.
• Seamless DCS Integration: Native compatibility with AC 800F system for effortless configuration and operation.
• Space-Efficient Design: Compact form factor optimizes cabinet space while maximizing communication capabilities.
• Long-Term Reliability: High-quality components and rigorous testing ensure years of maintenance-free operation.
• Global Compliance: Certified to international standards for worldwide deployment across all industry sectors.
