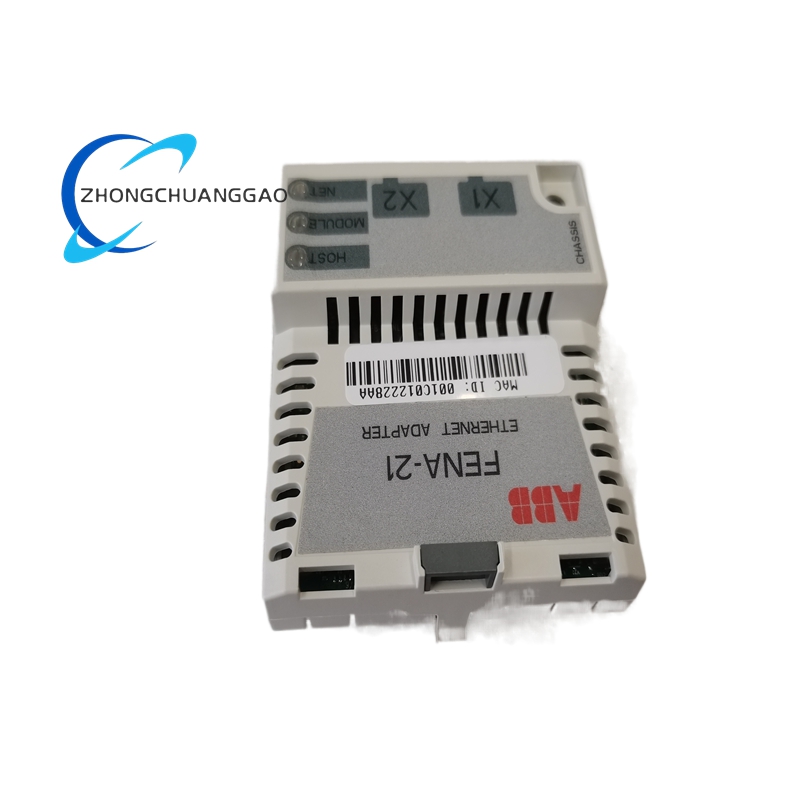

ABB FENA-21 Dual-Port Ethernet Adapter Module

Description

Technical Specifications

Key Features & Benefits

1. Multi-Protocol Flexibility
   • Unifies support for PROFINET IO, EtherNet/IP, and Modbus TCP within a single module, eliminating the need for separate adapters for different networksABB Group[6].
   • Protocol selection is configured via a simple parameter setting on the host drive, streamlining deployment and reducing inventory costs.
   • Complies with major industrial standards, ensuring interoperability with leading PLCs, HMIs, and control systems from Siemens, Rockwell, and others.
2. High-Speed, Reliable Communication
   • Delivers 10/100 Mbps full-duplex data transfer for fast, deterministic communication, critical for real-time control applications.
   • Dual RJ-45 ports support daisy-chaining, simplifying network topology and reducing cabling costs by allowing multiple devices to share a single switch port.
   • Supports implicit messaging (for high-speed I/O data) and explicit messaging (for parameter access and configuration), meeting diverse communication needsABB Group[6].
3. Comprehensive Protocol Profiles
   • PROFINET IO: Supports the PROFIdrive profile for standardized drive communication and the ABB Drives profile for optimized integration with ABB systems. Includes 16-bit and 32-bit transparent modes for flexible data exchangeABB Group[6].
   • EtherNet/IP: Acts as an EtherNet/IP server, supporting the ODVA AC/DC Drive profile and the ABB Drives profile. Enables both explicit attribute access and implicit I/O data exchange via input/output instancesABB Group[6].
   • Modbus TCP: Functions as a Modbus TCP server, supporting standard read/write function codes for single and multiple registers, ensuring compatibility with a wide range of Modbus-enabled devicesABB Group[6].
4. User-Friendly Design & Diagnostics
   • Integrated diagnostic LEDs (Power, Communication, Error) provide real-time status monitoring, simplifying troubleshooting and maintenance[15].
   • Built-in web server allows for local configuration and monitoring via a standard web browser, accessible using the module’s IP address.
   • Secure, tool-free slot-mounting design ensures quick installation and removal, minimizing downtime during replacement or system upgrades.
   • Captive mounting screws prevent loss and ensure reliable connection, maintaining EMC performance in harsh industrial environments.
5. Robust Durability & Safety
   • Constructed with high-quality industrial components to ensure long-term reliability in demanding conditions, including high vibration, temperature fluctuations, and electromagnetic interference.
   • Complies with strict international safety and EMC standards, ensuring safe operation and resistance to electrical surges and noise.
   • Internally powered by the host drive, eliminating the need for external power supplies and reducing system complexity.

Application Scenarios

• Automotive Manufacturing
  • Enables real-time control of ABB drives in robotic assembly lines, painting systems, and powertrain manufacturing.
  • Facilitates seamless communication with PLCs for closed-loop control of speed, torque, and position in automotive production lines.
  • Supports remote monitoring and diagnostics to minimize unplanned downtime in high-volume manufacturing environments.
• Food & Beverage Processing
  • Integrates drives into packaging machines, filling lines, and conveyor systems for precise control of production processes.
  • Ensures compliance with hygiene standards by enabling remote parameter adjustment and process monitoring without physical contact.
  • Supports efficient energy management by providing real-time data on drive performance and energy consumption.
• HVAC & Building Automation
  • Connects variable frequency drives (VFDs) in heating, ventilation, and air conditioning systems to building management systems (BMS).
  • Enables centralized control and monitoring of air handling units, chiller plants, and pump stations for optimal energy efficiency.
  • Supports quick integration into existing BMS networks, reducing installation time and costs.
• Water & Wastewater Treatment
  • Controls pumps, blowers, and valves in water treatment plants and sewage systems via Ethernet-connected drives.
  • Provides real-time feedback on system performance, allowing operators to adjust flow rates and pressure dynamically.
  • Enhances system reliability through remote diagnostics and predictive maintenance capabilities.
• Material Handling & Logistics
  • Integrates drives in conveyors, cranes, hoists, and automated guided vehicles (AGVs) for efficient material movement.
  • Supports high-speed communication for precise positioning and control of heavy loads in distribution centers and ports.
  • Enables seamless integration with warehouse management systems (WMS) for end-to-end automation.
• Oil & Gas, Petrochemical Industry
  • Connects drives in compressors, pumps, and separation systems to control systems in refineries and offshore platforms.
  • Ensures safe, reliable operation in hazardous areas by supporting fast emergency shutdown (ESD) responses via high-priority communication.
  • Facilitates remote monitoring and control, reducing the need for on-site personnel in harsh environments.
