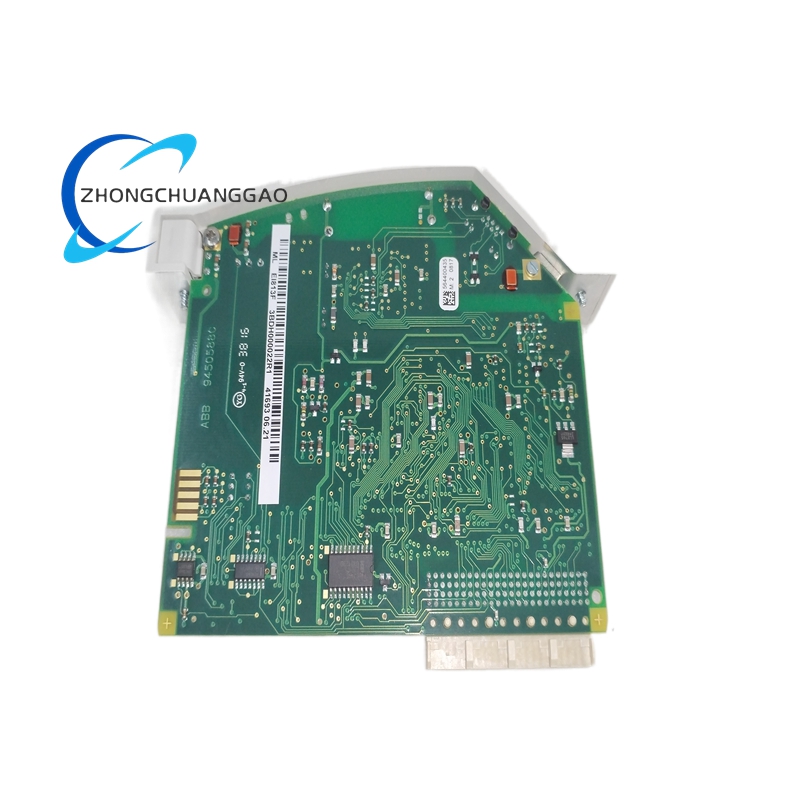

ABB EI813F 3BDH000022R1

Description

Key Technical Specifications

• Manufacturer: ABB

• Part Number: 3BDH000022R1

• Product Type: 10BaseT Ethernet Fieldbus Module

• Compatible Systems: Freelance AC 800F (with PM802F/PM803F controllers)

• Communication Standard: IEEE 802.3

• Interface Type: 1 x RJ-45 (shielded)

• Transmission Rate: 10 Mbit/s

• Protocol Support: Modbus/TCP

• Maximum Connected Devices: Up to 32 devices

• Data Bus: 32-bit with Direct Memory Access (DMA)

• Power Supply: 24 V DC (via backplane bus)

• Power Consumption: 2.5 W

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Dimensions (H x W x D): 125 mm × 155 mm × 28 mm

• Weight: Approximately 0.15 kg

• Protection Rating: IP20

• Status Indicators: 2 x LED (Yellow for link status, Green for communication activity)

• Software Compatibility: Freelance System Software V7.1SP2a and higher

Core Features

• Seamless AC 800F Integration: The EI813F is designed as a native component for the Freelance AC 800F system, specifically engineered to work with PM802F and PM803F controllers. It connects directly to the controller’s backplane, ensuring a perfect fit and immediate system recognition .

• Efficient, Low-Overhead Communication: Featuring a 32-bit data bus and Direct Memory Access (DMA) technology, the module allows data to be exchanged directly with the controller’s memory without burdening the central processing unit. This architecture ensures that the main CPU remains free to handle critical control tasks, maintaining high system performance .

• Standardized Ethernet and Protocol Support: By adhering to the IEEE 802.3 standard and supporting the open Modbus/TCP protocol, the EI813F guarantees straightforward interoperability with a vast array of industrial equipment, including HMIs, SCADA systems, and programmable logic controllers (PLCs) from various manufacturers .

• Robust Industrial Design: Housed in a compact, IP20-rated enclosure, the module is built to withstand the demanding conditions of industrial control cabinets. It operates reliably across a wide temperature range (-20°C to +60°C) and is resistant to the vibrations and electrical noise typical of factory floors and process plants .

• Real-Time Status Diagnostics: Two front-panel LEDs provide immediate visual feedback on the module’s operational status. A yellow LED confirms a valid physical network link, while a green LED flashes to indicate active data communication, allowing for quick on-site troubleshooting without specialized tools .

• Plug-and-Play Functionality with Auto-Configuration: The module supports automatic parameter recognition by the Freelance engineering station software upon connection. This “plug-and-play” capability simplifies initial commissioning and reduces the time and expertise required for module replacement, minimizing potential downtime .

• Fault Reporting and Reliability: Equipped with a fault-level interrupt reporting mechanism, the EI813F can immediately alert the control system to any internal issues or communication failures, enabling rapid diagnostic response and enhancing overall system reliability .

Typical Applications

The ABB EI813F is deployed in a wide range of industries where the Freelance AC 800F system is used for process control, requiring robust and standardized Ethernet connectivity .

• Process Industries (Chemical & Petrochemical): Used to connect the AC 800F controller to the plant’s Distributed Control System (DCS) network, enabling operators to monitor critical process parameters like reactor temperatures, pressures, and flow rates from central control rooms. It also facilitates data exchange with advanced process control (APC) systems for optimization .

• Power Generation and Distribution: In thermal, hydro, and gas power plants, the EI813F connects turbine and boiler control systems to higher-level plant management systems for supervisory control and data acquisition (SCADA), ensuring coordinated operation and grid compliance .

• Manufacturing and Automotive: Integrates Freelance-based automation cells (e.g., for painting, stamping, or assembly) with the wider factory Manufacturing Execution System (MES) for real-time production tracking, quality data logging, and centralized equipment monitoring .

• Water and Wastewater Treatment: Provides the communication link between treatment plant controllers and remote terminal units (RTUs) at pumping stations, enabling centralized monitoring of pump status, flow rates, and tank levels across a wide geographical area .

• Building and Infrastructure Automation: Deployed in large-scale infrastructure projects to connect control systems for HVAC, lighting, and security in commercial buildings, airports, or tunnels to a central building management system (BMS) .
