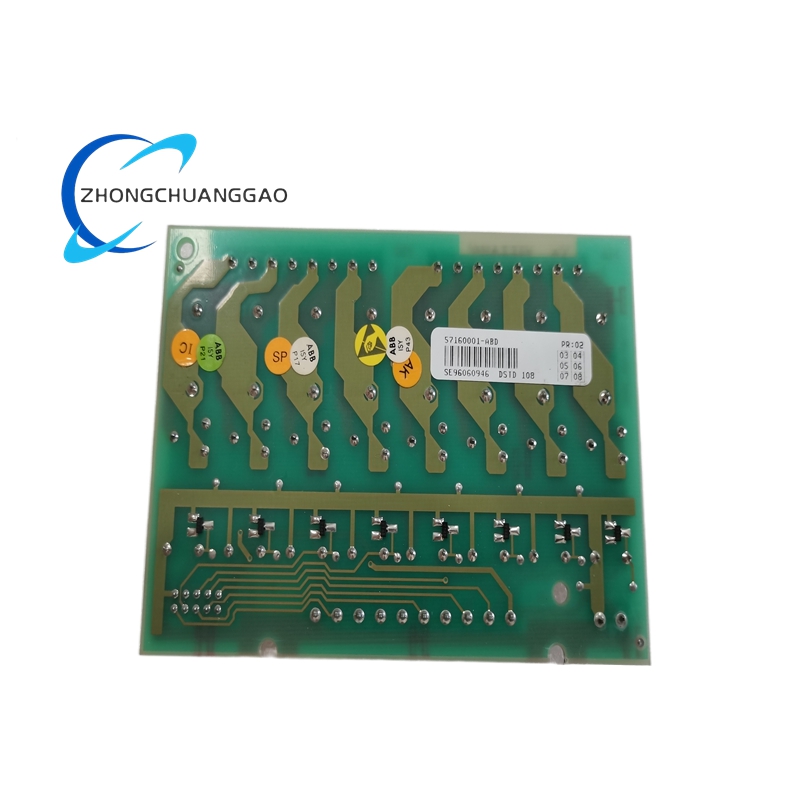

ABB DSTD108 Connection Unit

Description

Technical Specifications

Functional Features

1. High-Capacity Relay Output Control
   • 8 Independent Relay Channels: Provides 8 fully isolated relay outputs, each capable of switching up to 3 A, enabling direct control of high-current field devices like motors, solenoid valves, pumps, and lighting circuits.
   • Dual Voltage Compatibility: Supports both AC and DC output voltages (24–250 V), offering universal compatibility with most industrial actuators and signaling devices.
   • Low-Level Load Support: Handles minimum loads as low as 0.1 A at 24 V, ensuring reliable operation with low-power indicators and small actuators.
   • Galvanic Isolation: Each relay channel incorporates full electrical isolation to prevent ground loops and protect the control system from voltage transients and noise induced by field devices.
2. Industrial-Grade Reliability & Durability
   • Rugged Relay Design: Features high-quality electromechanical relays rated for long operational life and high switching cycles, ensuring consistent performance in 24/7 industrial environments.
   • Wide Environmental Tolerance: Operates reliably across a broad temperature range (-20 °C to +60 °C) and humidity levels up to 95% non-condensing, suitable for installation in control cabinets in manufacturing, energy, and process industries.
   • Vibration & Shock Resistance: Built with robust mechanical construction to withstand vibration and mechanical shock common in heavy industrial settings, preventing module damage and signal loss.
3. Simplified Installation & Maintenance
   • Compact Modular Design: Space-saving form factor (110 x 75 x 40 mm) allows flexible mounting in crowded control cabinets, optimizing space utilization.
   • DIN-Rail/Rack Mounting: Compatible with standard DIN-rail and system rack mounting systems, enabling quick and easy installation and replacement without complex wiring modifications.
   • Front-Facing Terminals: All field connections and wiring are accessible from the front, simplifying wiring, inspection, and troubleshooting during maintenance or system modifications.
   • Hot-Swappable Operation: Supports installation or removal under system power (hot-swapping), minimizing process downtime during module replacement or system expansion.
4. Comprehensive System Integration & Protection
   • Native ABB DCS Compatibility: Seamlessly integrates with ABB Advant OCS, Advant Master, and 800xA systems, ensuring plug-and-play operation and perfect interoperability with other system components.
   • Built-In Circuit Protection: Integrates overcurrent and overvoltage protection for each relay channel, safeguarding the module and connected field devices from damage caused by wiring errors, short circuits, or power surges.
   • High Noise Immunity: Multi-layered shielding and isolation design effectively filters electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity in electrically noisy industrial environments.
   • System Diagnostics: Works in conjunction with the host control system to provide real-time status monitoring of relay channels, including open-circuit detection, short-circuit alerts, and fault reporting for efficient predictive maintenance.

Application Scenarios

• Power Generation & Distribution
  • Control of auxiliary motors, fans, and pumps in thermal, hydro, and nuclear power plants.
  • Switching of circuit breakers, transformers, and substation equipment in grid management systems.
  • Indicator control for power plant monitoring and alarm systems.
• Oil & Gas Industry
  • Operation of solenoid valves, actuators, and safety shutdown valves in drilling, production, and refinery facilities.
  • Control of pipeline monitoring equipment and remote field devices in onshore and offshore installations.
  • Alarm and annunciator control for critical process safety systems.
• Chemical & Petrochemical Processing
  • Control of chemical dosing pumps, agitators, and heat exchangers in batch and continuous processes.
  • Switching of isolation valves and transfer pumps in hazardous area installations.
  • Indicator and alarm management for reaction vessels and distillation columns.
• Water & Wastewater Treatment
  • Control of pump stations, sludge conveyors, and aeration systems in water treatment plants.
  • Operation of gate valves, sluices, and chemical feed systems in wastewater facilities.
  • Status indication for water quality monitoring sensors and treatment process equipment.
• Metals & Mining
  • Motor control for conveyors, crushers, and smelting equipment in mining and metal processing plants.
  • Actuator control for ore sorting and material handling systems.
  • Alarm and interlock systems for high-temperature and high-pressure furnaces.
• General Manufacturing & Automation
  • Machine control for assembly lines, packaging systems, and material handling equipment.
  • Indicator and pushbutton interface for operator control stations.
  • Safety interlock and emergency shutdown system integration.

Key Advantages

• Universal Output Compatibility: Supports both AC and DC loads up to 3 A, eliminating the need for separate relay modules and simplifying system design.
• Superior Isolation & Protection: Full galvanic isolation and built-in circuit protection safeguard control hardware and ensure reliable operation in harsh electrical environments.
• Space-Efficient Modular Design: Compact form factor and flexible mounting reduce cabinet space requirements and support easy system expansion.
• Seamless ABB Ecosystem Integration: Native compatibility with ABB’s leading DCS platforms ensures fast deployment and reliable performance within existing control systems.
• Low Maintenance & High Reliability: Rugged construction and long-life relay components deliver exceptional MTBF (Mean Time Between Failures) and minimize operational downtime.
• Cost-Effective Solution: Consolidates multiple relay functions into a single module, reducing hardware costs, wiring complexity, and overall system ownership costs.
