Product Introduction

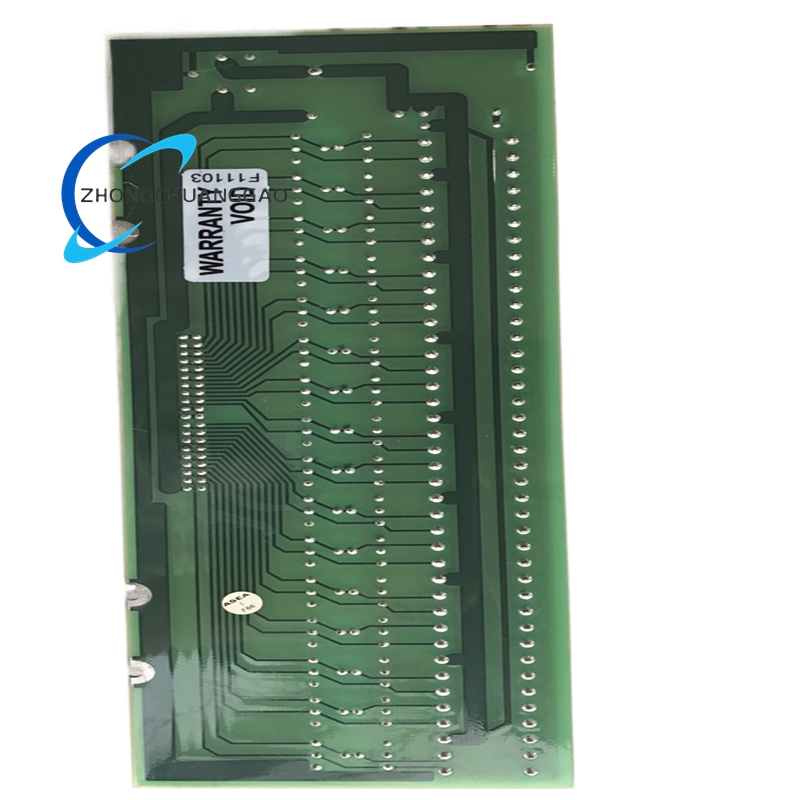

The ABB DSTA180 is a high-performance connection unit engineered for industrial automation systems, serving as a critical interface between field devices and central control systems. It enables reliable data exchange, signal conversion, and device communication, supporting seamless integration within ABB’s distributed control and automation architectures. Designed for robustness and versatility, it excels in harsh industrial environments, ensuring stable, high-speed data transmission and precise control signal execution.
Description
Technical Specifications
| Parameter | Detail |
|---|---|
| Product Type | Connection Unit / Interface Module |
| Material Coding | 57120001-ET / 57120001-ET/2 |
| Weight | 0.22 kg |
| Dimensions (W x H x D) | 150 mm x 90 mm x 40 mm |
| Power Supply | 24 V DC (operating range: 20.4 V DC to 28.8 V DC) |
| Power Consumption | ≤ 1 W (typical operation) |
| Communication Interfaces | – RS-485 (half-duplex, up to 115.2 kbps)
– Ethernet (TCP/IP, Modbus/TCP, EtherNet/IP) – RS-232 (optional, for direct configuration) |
| Isolation | Galvanic isolation between field and system sides |
| Input Signal | 24 V DC digital signals (compatible with dry contacts, sensors, and switches) |
| Output Signal | Relay contact outputs (24 V AC/DC, 0.5 A per channel) |
| Number of Channels | 16 independent channels (configurable input/output) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Protection Class | IP20 (indoor cabinet use) |
| Mounting | Standard DIN rail mounting |
| Certifications | CE, UL, EMC compliant (EN 61000-6-2, EN 61000-6-4) |
| Safety Standards | IEC 61000-6-2, IEC 60603-1 |
Key Features & Benefits
-
Dual-Protocol Communication & High Flexibility
- Integrates RS-485 and Ethernet interfaces, supporting Modbus/TCP, EtherNet/IP, and TCP/IP protocols for seamless connection to PLCs, HMIs, and field devices.
- Enables bidirectional data exchange between remote sensors, actuators, and the central control system, supporting both digital input and relay output operations.
- Configurable channel direction (input/output) adapts to diverse application requirements, reducing system complexity and component count.
-
Superior Electrical Isolation & Anti-Interference
- Galvanic isolation between field and system sides eliminates ground loops and voltage transients, protecting sensitive control circuits from industrial noise.
- High EMC performance resists interference from motors, drives, and other high-power equipment, ensuring reliable operation in electrically harsh environments.
- Built-in overvoltage, overcurrent, and short-circuit protection safeguard the unit and connected devices from electrical faults.
-
Compact Design & Easy Integration
- Ultra-compact form factor (150 x 90 x 40 mm) minimizes cabinet space usage, ideal for dense I/O installations.
- DIN rail mounting simplifies installation and maintenance, reducing downtime during system upgrades or replacements.
- Plug-and-play compatibility with ABB DCS and PLC systems ensures seamless integration without extensive reconfiguration.
-
High Reliability & Industrial-Grade Durability
- Constructed with industrial-grade components to withstand temperature fluctuations, vibration, and humidity common in manufacturing environments.
- Low power consumption (< 1 W) reduces energy costs and heat generation, supporting 24/7 continuous operation.
- Long Mean Time Between Failures (MTBF) ensures minimal unplanned downtime, critical for continuous production processes.
-
Advanced Diagnostics & Easy Maintenance
- On-board diagnostic LEDs provide real-time status monitoring for communication links, power supply, and channel activity.
- RS-232 configuration interface enables local parameter setup and fault troubleshooting without disrupting system operation.
- Hot-swappable design allows unit replacement without shutting down the entire control system, reducing maintenance costs.
Application Scenarios
The ABB DSTA180 is widely deployed across industrial sectors requiring reliable field device communication and control:
- Oil & Gas, Petrochemicals
- Connects remote pressure/temperature switches, flow meters, and emergency shutdown (ESD) sensors in oil fields and refineries.
- Controls solenoid valves, pumps, and alarm systems in pipeline and storage terminal networks.
- Interfaces with explosion-proof field devices in offshore platforms, ensuring safe and stable operation.
- Power Generation & Distribution
- Monitors status of generator set sensors, circuit breakers, and transformer auxiliary equipment in power plants.
- Controls remote switchgear, fans, and pumps in substations and distribution centers.
- Supports real-time data collection for SCADA systems, enabling efficient grid management.
- Water & Wastewater Treatment
- Acquires data from level sensors, flow meters, and valve positioners in water treatment plants.
- Controls dosing pumps, sluice gates, and aeration systems in water distribution networks.
- Interfaces with remote monitoring stations to optimize water quality and supply efficiency.
- Chemical & Pharmaceutical Manufacturing
- Connects precision sensors, pressure transducers, and safety interlocks in chemical reactors.
- Controls small actuators, valves, and heating/cooling systems in sterile production lines.
- Supports batch process control and data logging for compliance with industry standards.
- Mining & Mineral Processing
- Monitors conveyor belt position sensors, ore chute limit switches, and equipment safety interlocks.
- Controls material feeders, dust extraction systems, and ventilation fans in mining facilities.
- Ensures reliable communication in harsh, high-dust environments.
- Automotive & General Manufacturing
- Interfaces with machine tools, assembly line robots, and quality inspection systems.
- Controls conveyors, packaging machines, and sorting systems in automotive and electronics production.
- Supports flexible I/O expansion for custom production line configurations.
