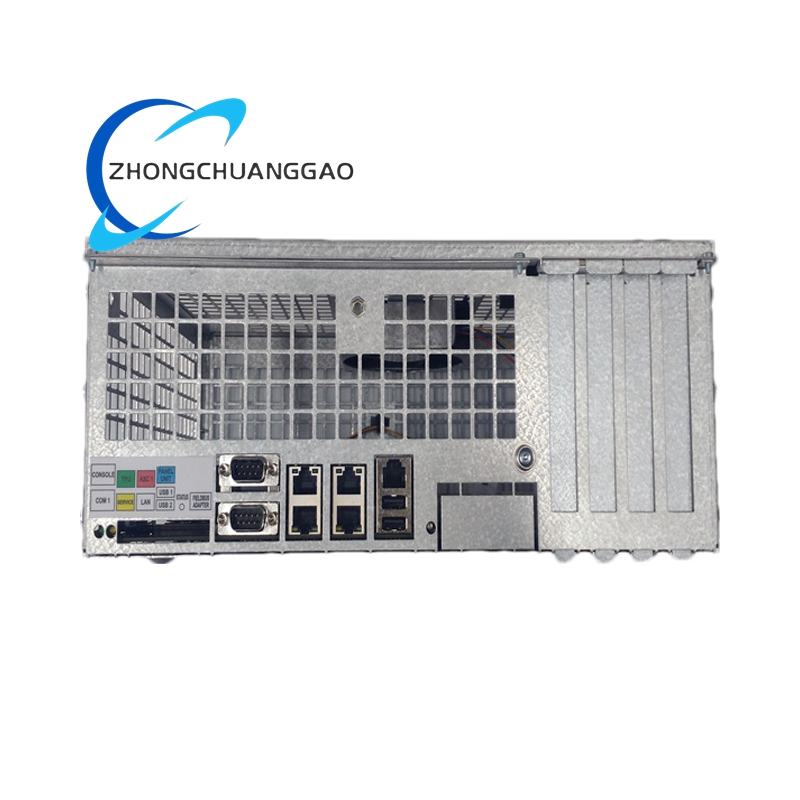

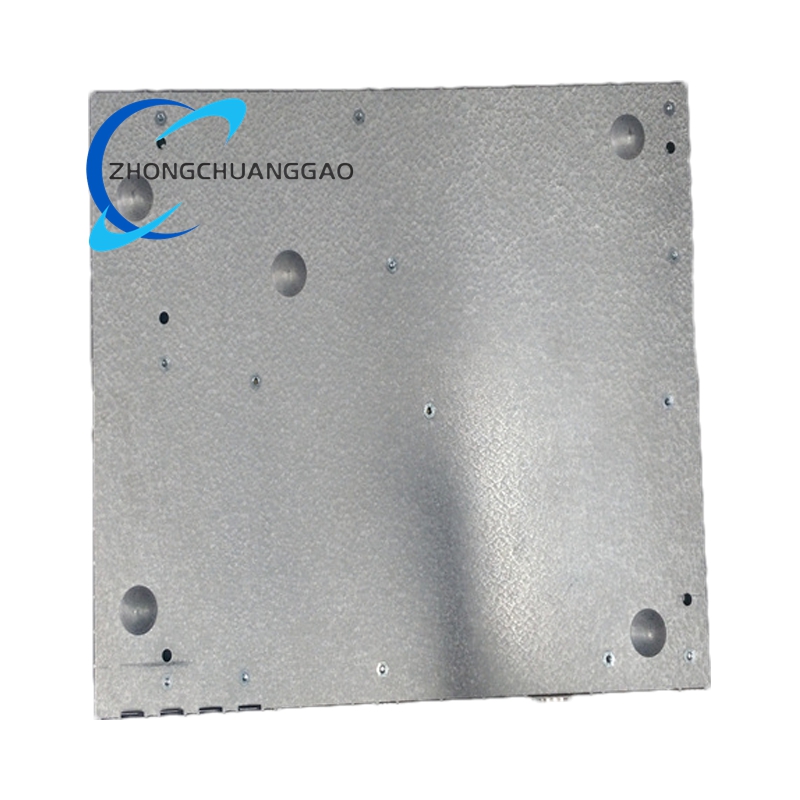

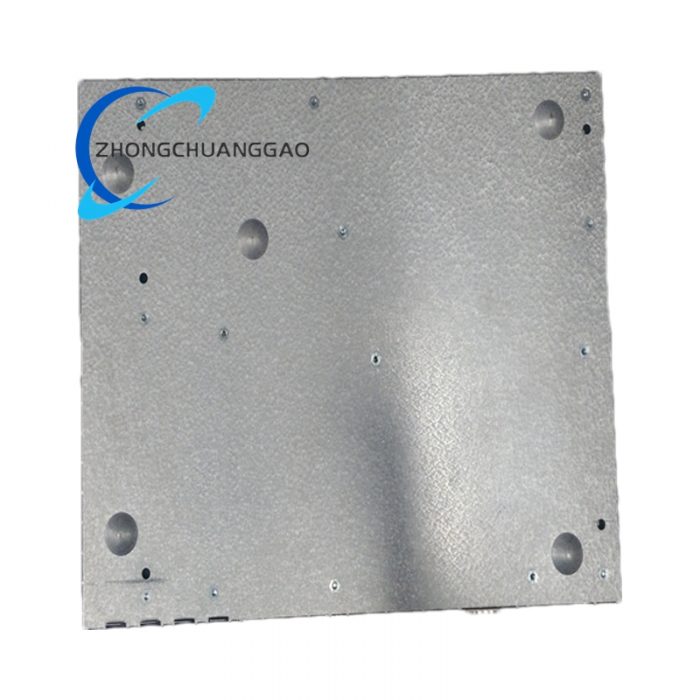

ABB DSQC639 3HAC025097-001

Product Short Description

Technical Specifications:

Model: DSQC639 3HAC025097-001
Weight: Approximately 0.76 kg
Power Supply: Operates on 24V DC, with built-in protection against voltage fluctuations.
Communication Interfaces: Supports multiple protocols, including DeviceNet, Ethernet, and serial ports (RS232, RS422, RS485).
Processor: Dual-core processor for real-time multi-tasking, with task switching delay <1ms.
Synchronization: Achieves nanosecond-level synchronization via EtherCAT bus, ensuring multi-axis linkage error <0.1mm.
I/O Management: Integrates CPU, communication interfaces, and I/O management functions.
Environmental Resistance: Designed for industrial environments, with resistance to vibration, temperature changes, and electromagnetic interference.
Safety Features: Includes overcurrent and overheating protection.

Functional Features:

High-Precision Control: Enables precise trajectory planning and multi-axis synchronization for complex robotic tasks.
Real-Time Multi-Tasking: Supports simultaneous motion control, logic control, and HMI interaction.
Modular Design: Supports hot-swapping of I/O modules without powering down, improving maintenance efficiency by up to 80%.
Industrial-Grade Reliability: Adopts a fanless cooling design, with an MTBF (Mean Time Between Failures) of 100,000 hours.
Diagnostic Capabilities: Provides real-time status feedback on robot operations, enabling quick response to abnormalities.

Application Scenarios:

Automotive Manufacturing: Controls multiple robots for synchronous welding operations in car body assembly lines.
Electronics Assembly: Monitors force sensor data in real-time to adjust robot gripping force and path during smartphone camera module assembly.
Metal Processing: Ensures stable control of spray gun trajectories in offshore wind tower coating applications.
General Industrial Automation: Supports custom projects requiring reliable robot control, such as in textile machinery, boiler systems, and facility management.

Compatibility:

Designed for seamless integration with ABB IRC5 robot controllers.
May be compatible with third-party controllers supporting DeviceNet or other open standards, subject to configuration adjustments.
