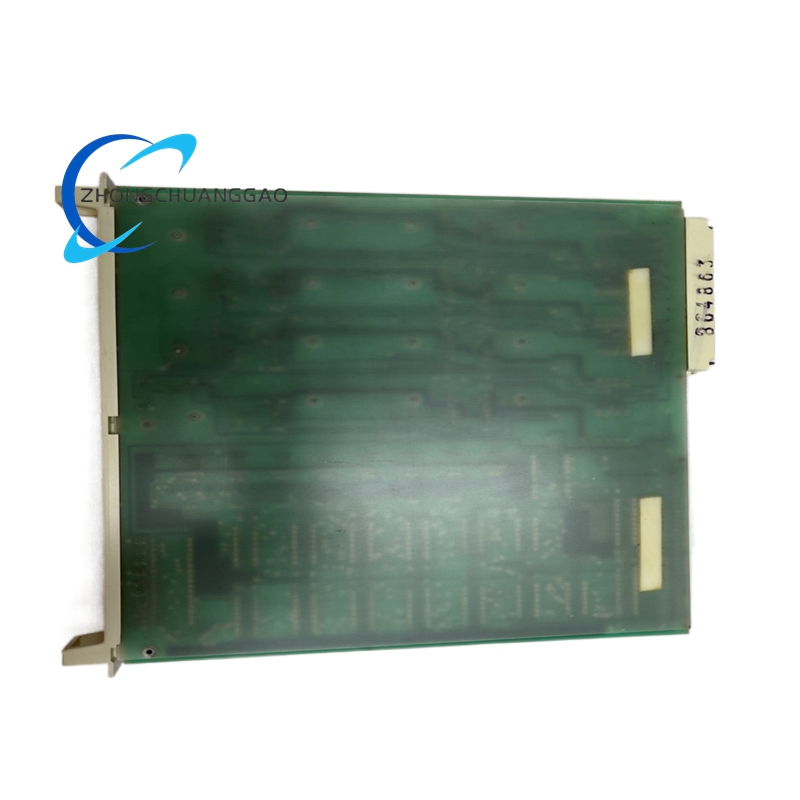

The ABB DSDO120 is a high-performance, industrial-grade digital output module featuring electromechanical relay outputs, specifically engineered for integration with the ABB AC 800M controller and the System 800xA automation platform. It serves as a critical interface, converting logical control signals from the controller into physical, galvanically-isolated switch actions to directly drive field devices.
Designed for demanding process and factory automation environments, this module provides true electrical isolation between channels and the backplane, enabling direct control of higher-power loads such as contactors, solenoid valves, motors, and indicator lamps.
Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Output Module (Electromechanical Relay) |
| Number of Channels | 16 Independent Output Channels |
| Contact Type | Normally Open (NO) |
| Switching Capacity | 2 A at 250 V AC / 110 V DC (Resistive Load) |
| Input Voltage | 24 – 48 V DC |
| Isolation Voltage | ≥ 2500 V RMS (Channel-to-Channel & Channel-to-Backplane) |
| Response Time | ≤ 10 ms |
| Electrical Protection | Per-channel fuse protection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 – 95% (Non-condensing) |
| Enclosure Rating | IP20 |
| Mounting | DIN Rail Mounting (Requires TB820 or TB840 Terminal Base) |
| Certifications | CE, UL, cUL, IEC 61010-1, IEC 61508 (SIL 2 Capable) |
| Weight | Approx. 0.5 kg |
| Country of Origin | Sweden |
Functional Features
-
Robust Electromechanical Relay Outputs
- High Load Compatibility: Equipped with 16 heavy-duty relay contacts capable of switching up to 2 A at 250 V AC, allowing direct control of a wide range of field devices without needing external interposing relays.
- Versatile Load Handling: Reliably operates both resistive and inductive loads (e.g., motor coils, solenoids), ensuring consistent performance in challenging industrial applications.
- Long Mechanical Life: Designed for high-cycle operation, ensuring long-term durability and reducing maintenance requirements.
-
Full Electrical Isolation & Safety
- Galvanic Isolation: Provides 2500 V RMS isolation between all output channels and the system backplane, effectively eliminating ground loops, preventing electrical interference, and protecting the controller from high-voltage field faults.
- Per-Channel Fusing: Each output channel is individually fused, ensuring that a short circuit or overload on one channel does not disable the entire module or disrupt other I/O points, maximizing system uptime.
- SIL 2 Certification: Certified for use in safety-related applications up to SIL 2 (IEC 61508), making it ideal for implementing safety interlocks and emergency shutdown (ESD) systems.
-
Advanced Diagnostics & Status Monitoring
- LED Indicators: Features clear LED status indicators for each channel, providing real-time visual feedback on the output state (ON/OFF) for quick local diagnostics.
- Fault Detection: Integrates comprehensive diagnostic functions that report module health, channel status, and fault conditions back to the control system, enabling remote monitoring and predictive maintenance.
- System Integration: Seamlessly transmits diagnostic data to the ABB System 800xA for centralized alarm management and troubleshooting.
-
High Reliability & Easy Integration
- Industrial Durability: Built with industrial-grade components to withstand harsh conditions including wide temperature variations, high humidity, and electrical noise.
- Hot-Swappable: Supports hot-swapping when used with the appropriate terminal base, allowing for module replacement or maintenance without powering down the entire system, minimizing process downtime.
- Seamless Compatibility: Fully compatible with ABB AC 800M controllers and the System 800xA platform, offering plug-and-play configuration and easy integration into new or existing systems.
Application Scenarios
The ABB DSDO120 is widely deployed across various industries where reliable, isolated, high-capacity digital control is critical:
- Oil & Gas Industry
- Direct control of emergency shutdown (ESD) valves and compressor shutoffs in refineries, pipelines, and offshore platforms.
- Actuation of safety interlocks and pump/motor starters in processing units.
- Power Generation
- Control of auxiliary systems such as boiler feed pumps, fans, and circuit breakers.
- Operation of annunciation systems and safety lockouts in power plants.
- Chemical & Pharmaceutical
- Driving solenoid valves for reactor feedstock control and safety relief valves.
- Control of mixers, conveyors, and clean-in-place (CIP) systems.
- Water & Wastewater Treatment
- Remote start/stop control for large pumps, blowers, and filter presses.
- Actuation of chemical dosing valves and gate controls.
- Manufacturing & Automotive
- Control of motor contactors, robotic grippers, and pneumatic/hydraulic actuators.
- Operation of assembly line components, safety gates, and warning beacons.
Key Advantages
- Direct Load Driving: Eliminates the need for external relays, reducing system complexity, cost, and potential points of failure.
- Superior Isolation: High galvanic isolation ensures system safety, signal integrity, and protection against electrical faults.
- Safety Compliance: SIL 2 certification enables deployment in critical safety functions.
- High Channel Density: 16-channel design optimizes cabinet space and cost efficiency.
- Operational Resilience: Individual channel fusing and robust construction ensure uninterrupted operation.
- Simplified Maintenance: Hot-swappable design and comprehensive diagnostics reduce downtime and service costs.
