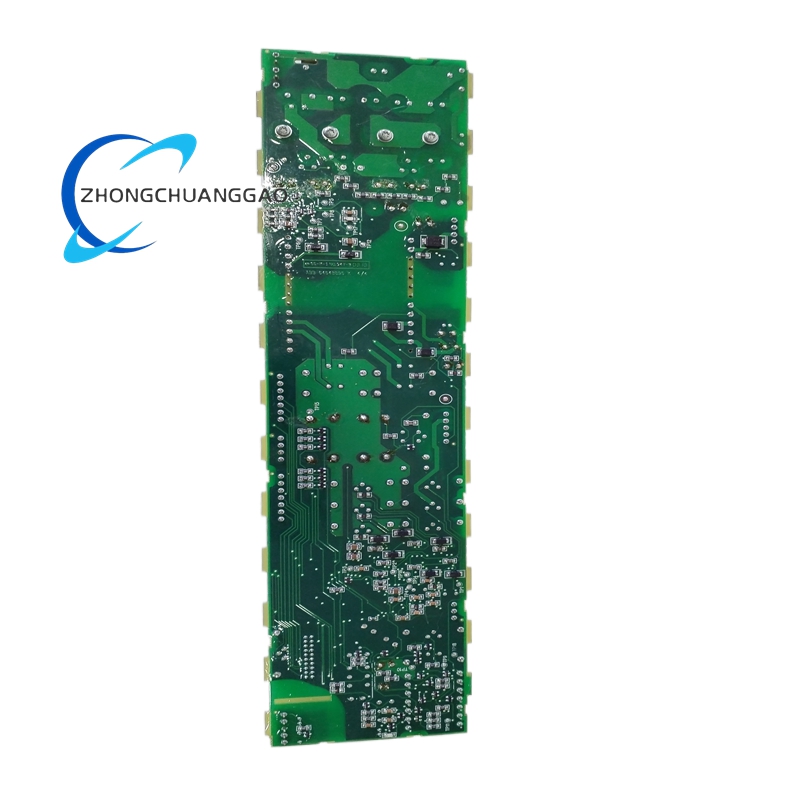

ABB DSBM-01C 8-Channel Analog Output Module

Description

Technical Specifications

Core Output Parameters

• Number of Channels: 8 independent analog output channels
• Output Signal Types: 4–20 mA current (default) or 0–10 V voltage (per-channel configurable)
• Load Capacity: 4–20 mA: Max 750 Ω; 0–10 V: Min 2 kΩ
• Accuracy: ±0.1% of full scale (at 25°C)
• Response Time: ≤ 10 ms (typical)
• Isolation: ≥ 500 Vrms galvanic isolation between channels and between channels and system bus
• Update Rate: Synchronized with DCS control cycle (configurable)
• Output Protection: Overload protection, short-circuit protection, and reverse polarity protection for each channel

Power & Communication

• Supply Voltage: 24 V DC (18–32 V DC) from Symphony Plus I/O backplane
• Power Consumption: ≤ 3.0 W total
• Bus Interface: Symphony Plus high-speed backplane bus
• Communication Protocol: Proprietary Symphony Plus I/O communication protocol
• Controller Compatibility: ABB AC 800M series controllers
• Base Unit Compatibility: Standard Symphony Plus I/O rack mounting bases

Physical & Mechanical Specifications

• Form Factor: Standard Symphony Plus I/O rack-mount module
• Dimensions: 119 mm (H) × 45 mm (W) × 102 mm (D)
• Weight: Approx. 0.18 kg
• Mounting: Vertical installation in 19-inch industrial cabinets
• Terminals: Detachable screw-type field terminals
• Enclosure Rating: IP20 (front panel)
• Housing Flammability: UL 94 V-0

Environmental Specifications

• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: -40 °C to +70 °C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (5–200 Hz, 1 g)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms, half-sinusoidal)
• EMC Compliance: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emission, Level 3)
• Environmental Classification: G3 severity (harsh industrial environments)
• Pollution Degree: Degree 2 (IEC 60664-1)

Certifications & Reliability

• Safety Certifications: CE, EN 61010-1, UL 61010-1
• Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
• Marine Certifications: ABS, BV, DNV, LR
• RoHS 2 (2011/65/EU), WEEE compliance
• MTBF: > 200,000 hours
• MTTR: ≤ 30 minutes

Functional Features

1. High-Precision Multi-Channel Output

• 8 Independent Channels: Delivers simultaneous, isolated analog control signals to multiple field devices
• Per-Channel Configuration: Each channel independently set to 4–20 mA or 0–10 V to match diverse actuator requirements
• High Accuracy: Maintains ±0.1% full-scale accuracy for precise process control
• Fast Response: ≤ 10 ms response time ensures tight control loop performance

2. Robust Isolation & Protection

• Full Galvanic Isolation: ≥ 500 Vrms isolation eliminates ground loops and protects the DCS from field-side voltage transients
• Multi-Level Protection: Built-in overload, short-circuit, and reverse polarity protection for each output channel
• Fault Detection: Automatic fault detection and reporting for each channel, including open-circuit and short-circuit status
• Surge Suppression: Integrated surge protection safeguards against electrical disturbances in industrial environments

3. Seamless System Integration

• Symphony Plus Compatibility: Fully integrated with ABB Symphony Plus DCS and AC 800M controllers
• Hot-Swappable Design: Supports module replacement without system shutdown, minimizing downtime
• Plug-and-Play Installation: Simple mounting in standard Symphony Plus I/O racks with automatic configuration recognition
• Software Configuration: Configurable via ABB Control Builder software for output type, range, and fault behavior

4. Advanced Diagnostics & Monitoring

• Per-Channel Status Monitoring: Real-time supervision of each output channel for operational status and fault conditions
• System Diagnostics: Continuous monitoring of module health, power supply, and communication integrity
• Status Indicators: Front-panel LEDs provide visual feedback on module operation and channel faults
• Remote Diagnostic Access: Centralized DCS access to output values, status, and diagnostic data for predictive maintenance

5. Industrial-Grade Durability

• Harsh Environment Rating: G3 classification for operation in corrosive industrial atmospheres
• Wide Temperature Range: Stable performance in industrial environments from 0 °C to +55 °C
• Vibration & Shock Resistance: Withstands mechanical stress in heavy industrial environments
• Long Service Life: High-quality components ensure reliable operation in continuous process control applications

Application Scenarios

1. Power Generation

• Thermal Power Plants: Boiler feedwater control, steam turbine valve positioning, flue gas desulfurization system control
• Nuclear Power Plants: Reactor coolant system control, safety system actuator driving, containment pressure regulation
• Renewable Energy: Wind turbine pitch control, solar inverter output regulation, hydroelectric turbine gate control
• Substations: Transformer tap changer control, reactive power compensation device regulation

2. Oil & Gas Industry

• Upstream Production: Wellhead pressure control, pipeline flow regulation, separator level control
• Midstream Transportation: Pipeline pump control, compressor station regulation, metering station control
• Downstream Refining: Distillation column control, reactor temperature regulation, product blending system control
• LNG Facilities: Liquefaction process control, storage tank level regulation, vapor recovery system control

3. Chemical & Petrochemical Processing

• Chemical Reactors: Temperature control, pressure regulation, feed flow control
• Fertilizer Production: Ammonia synthesis control, urea process regulation, gas purification system control
• Polymer Manufacturing: Extruder speed control, polymerization reactor regulation, product quality control
• Specialty Chemicals: Batch process control, reaction vessel regulation, purification system control

4. Manufacturing & Industrial Automation

• Metalworking: Furnace temperature control, rolling mill speed regulation, hydraulic press control
• Automotive Production: Paint shop process control, assembly line regulation, robotic welding system control
• Electronics Manufacturing: Semiconductor fabrication control, PCB processing regulation, cleanroom environment control
• Food & Beverage: Pasteurization process control, filling machine regulation, packaging line control

5. Water & Wastewater Treatment

• Water Purification: Filtration system control, chemical dosing regulation, disinfection process control
• Wastewater Treatment: Aeration tank control, sludge processing regulation, effluent quality control
• Desalination Plants: Reverse osmosis system control, brine disposal regulation, energy recovery system control

6. Marine & Offshore Applications

• Offshore Platforms: Process control valve regulation, pump control, safety system actuator driving
• Shipboard Systems: Engine control, cargo handling system regulation, ballast water treatment control
• Port & Terminal Equipment: Crane control, loading/unloading system regulation, conveyor control

7. Retrofit & System Expansion

• Legacy System Upgrades: Replaces obsolete analog output modules in older ABB control systems
• System Modernization: Expands control capabilities in existing Symphony Plus DCS architectures
• Spare Part Replacement: Direct replacement for faulty modules in analog output control applications
