Product Introduction

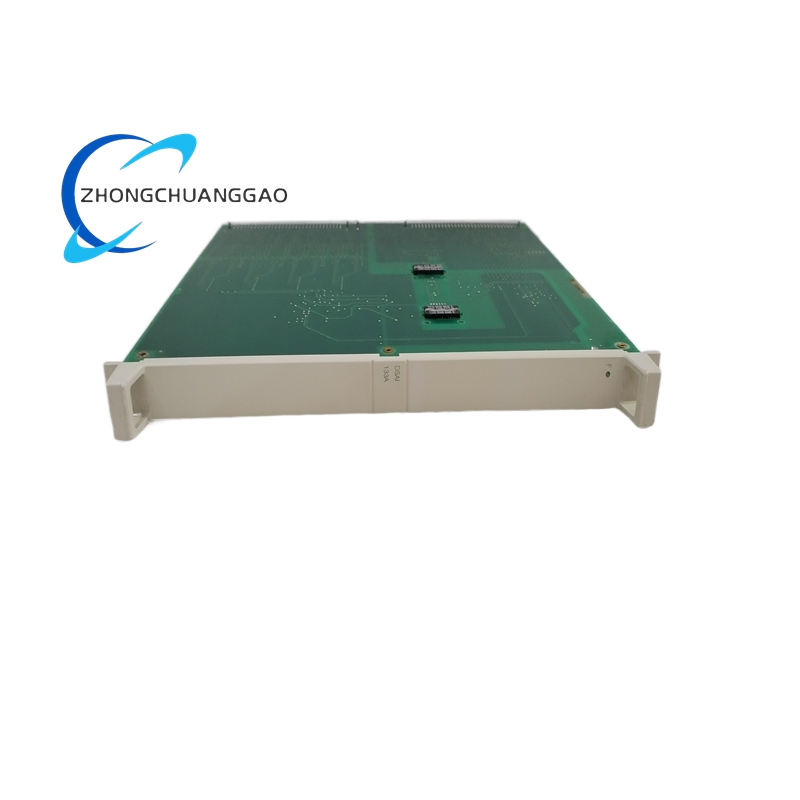

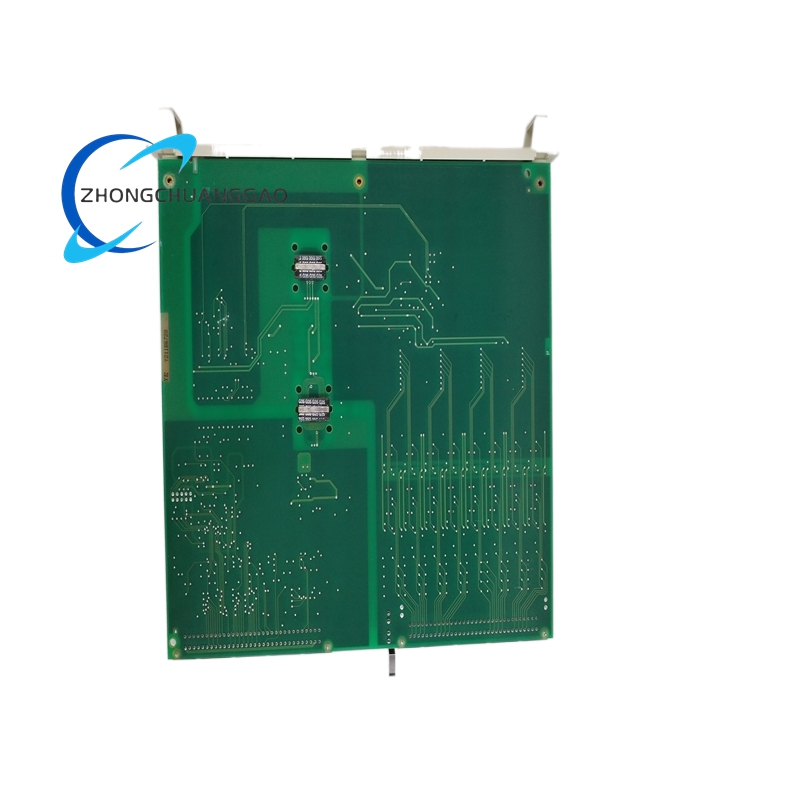

The ABB DSAI133A is a high‑density, 32‑channel universal analog input board designed for ABB Advant OCS (Open Control System) and System 3000 automation platforms. It converts industrial field analog signals (current, voltage) into high‑resolution digital data for processing by central controllers. The module features software‑configurable input ranges, per‑channel galvanic isolation, and built‑in HART transparent transmission, enabling seamless integration with smart field devices. It includes comprehensive diagnostics for loop faults, overrange conditions, and module health, with LED status indicators for quick troubleshooting. The DSAI133A supports redundant controller architectures and is built to withstand harsh industrial environments with G3 corrosion resistance and robust EMC performance, making it a core component for large‑scale process control and data acquisition systems.
Description
Technical Specifications
Input Configuration
- Number of Input Channels: 32 independent, software‑configurable analog inputs
- Input Types: Current (4–20 mA, 0–20 mA); Voltage (±10 V, ±5 V, 0–10 V, 1–5 V)
- ADC Resolution: 16 bits
- Accuracy (25 °C): ±0.1 % of full scale (typical)
- Total Uncertainty (25 °C): ±0.2 % of full scale (maximum)
- Sampling Rate: ≤ 10 ms for full 32‑channel scan
- Input Impedance: 1 MΩ (voltage), 250 Ω (current)
- Common Mode Rejection Ratio (CMRR): > 80 dB at 50/60 Hz
- HART Support: Transparent transmission for HART 5/6/7 devices (no impact on analog measurement)
Isolation & Protection
- Isolation Type: Galvanic isolation between channels and backplane
- Isolation Voltage: 500 V RMS
- Dielectric Test Voltage: 1500 V AC (1 minute)
- Overvoltage Protection: Clamped to ±30 V DC
- Overcurrent Protection: Current‑limited per channel
- EMC Compliance: IEC 61000‑6‑2 (immunity), IEC 61000‑6‑4 (emission)
- Overvoltage Category: II
- Pollution Degree: 2
Power Specifications
- Power Supply: 24 V DC (from Advant OCS backplane)
- Power Consumption: 4.5 W typical, 6.0 W maximum
- Backplane Current Draw: 180 mA typical at 24 V DC
Physical & Mechanical Data
- Dimensions (W × H × D): 225 mm × 22.5 mm × 324 mm
- Net Weight: 0.29 kg
- Mounting: Advant OCS rack‑mounted (backplane compatible)
- Terminals: Phoenix Contact spring‑clamp terminals (field wiring)
- LED Indicators: Run, Fault, Channel Status (grouped), HART Activity
- Ingress Protection: IP20 (front face)
Environmental Ratings
- Operating Temperature: 0 °C to +60 °C
- Storage/Transport Temperature: -40 °C to +70 °C
- Relative Humidity: 5 % to 95 % non‑condensing (93 % at 40 °C, non‑condensing)
- Corrosion Protection: ISA‑S71.04 G3
- Vibration/Shock: Complies with IEC 61131‑2 (5 g rms, 10 Hz–150 Hz; 30 g peak)
Certifications & Compliance
- Safety: CE, UL 61010‑1, CSA C22.2 No. 61010‑1
- EMC: IEC 61000‑6‑2, IEC 61000‑6‑4
- RoHS: Exempt per EU 2011/65/EU Article 2(4)(c), (e), (f) (industrial control equipment exemption)
- WEEE: EU WEEE 2012/19/EU compliant
Functional Features
- 32 Universal Input Channels: Single board handles all standard current/voltage signals, reducing inventory and panel space
- 16‑Bit High Resolution: Ensures precise measurement for critical process variables (pressure, flow, level, temperature)
- Per‑Channel Galvanic Isolation: Eliminates ground loops and electrical interference between channels and system
- HART Transparent Transmission: Enables configuration and diagnostics of HART smart transmitters without additional modules
- Comprehensive Diagnostics: Real‑time detection of loop open, short circuit, overrange, and underrange conditions
- Fast Full‑Channel Scanning: ≤ 10 ms scan rate for 32 channels, supporting real‑time control and high‑speed data acquisition
- Redundancy Support: Works with dual AC 800M CPUs (via CI854/TB854) for fault‑tolerant systems
- Spring‑Clamp Terminals: Tool‑free wiring for fast installation and maintenance, reducing downtime
- LED Status Indicators: Instant visual feedback for module health, channel activity, and fault conditions
- G3 Corrosion Resistance: Coated PCB for reliable operation in highly corrosive industrial environments
- Software Configurability: Input ranges, filtering, and scaling set via ABB Control Builder software, no hardware jumpers
Application Scenarios
- Oil & Gas: Upstream drilling, midstream pipelines, downstream refineries (flow, pressure, level monitoring)
- Chemical & Petrochemical: Batch and continuous processes, reactor control, safety instrumented systems (SIS)
- Power Generation: Thermal, hydro, nuclear, and renewable plants (boiler control, turbine monitoring, grid stability)
- Pulp & Paper: Digester control, paper machine speed, moisture measurement, chemical dosing
- Water & Wastewater: Treatment plants, pumping stations, reservoir management (flow, pH, turbidity monitoring)
- Metals & Mining: Smelter control, ore processing, flotation circuits (temperature, pressure, level)
- Pharmaceutical & Biotech: Cleanroom process control, batch tracking, critical parameter monitoring
- Manufacturing Automation: Automotive assembly, food & beverage processing, packaging lines (process variable feedback)
- Data Acquisition Systems: Test benches, environmental monitoring, industrial IoT (IIoT) gateways
- System Retrofits: Upgrading legacy Advant OCS systems with high‑density analog input capability
