Product Short Description
Product Description

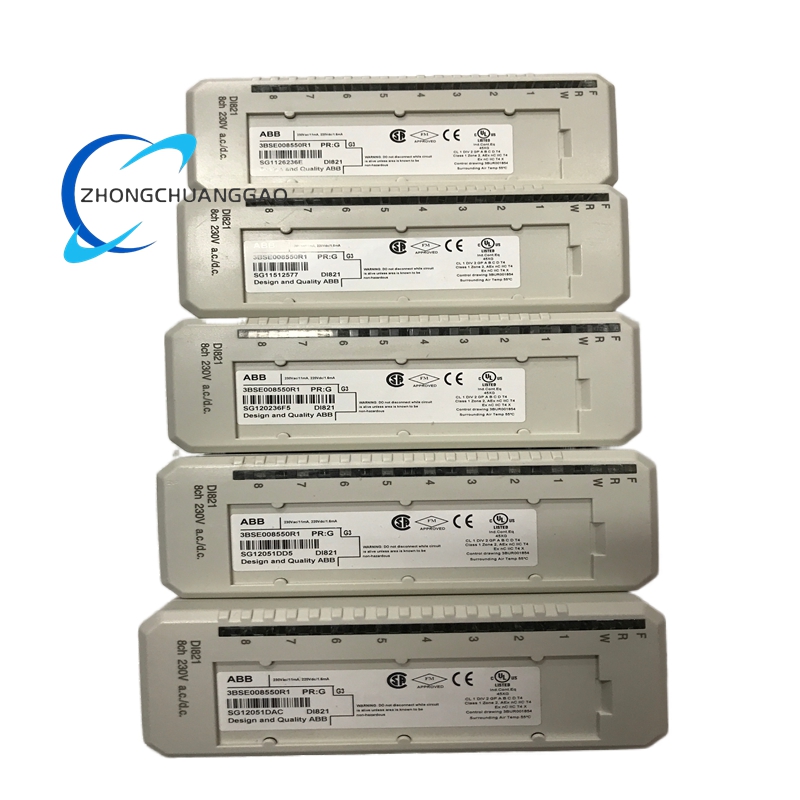

The ABB DI821 is a high-performance, industrial-grade digital input module designed exclusively for the S800 I/O distributed I/O system. It serves as a robust interface for acquiring high-voltage binary signals (230V AC/DC) from field devices, converting them into logical signals readable by the main controller (such as the AC 800M). This module features 8 individually galvanically isolated input channels, providing superior electrical protection and noise immunity. It is purpose-built for demanding industrial environments where high-voltage signal monitoring, reliable state detection, and system safety are critical.
Description
Technical Specifications
表格
| Parameter | Specification |
|---|---|
| Product Type | S800 I/O Digital Input Module |
| Number of Channels | 8 (Individually isolated) |
| Input Signal Type | 230V AC / 220V DC (Current sinking) |
| AC Input Voltage Range | Logic 0: 0 – 50 V AC
Logic 1: 164 – 264 V AC |
| DC Input Voltage Range | Logic 0: 0 – 40 V DC
Logic 1: 175 – 275 V DC |
| Input Current | AC: 11 mA at 230V AC
DC: 1.6 mA at 220V DC |
| Input Impedance | AC: 21 kΩ
DC: 134 kΩ |
| Frequency Range (AC) | 47 – 63 Hz |
| Isolation Voltage | 500 V AC (Channel-to-channel, Channel-to-backplane) |
| Signal Filter | Analog filter, 6 ms time constant |
| Response Time | < 1 ms (Typical) |
| Voltage Supervision | Yes (Channel 1 supervises 2-4; Channel 8 supervises 5-7) |
| Power Consumption | Typical 1.2 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 – 95% (Non-condensing) |
| Enclosure Rating | IP20 (IEC 60529) |
| Pollution Degree | 2 (IEC 60664-1) |
| Certifications | CE, IEC 61131-2, IEC 61000 (EMC), RoHS |
| Dimensions (W x H x D) | 45 x 119 x 102 mm |
| Weight | 0.18 kg |
| Compatible Termination Units | TU811, TU813, TU831, TU839, TU851 |
Functional Features
-
High-Voltage Input & Individually Isolated Channels
- Supports direct connection to 230V AC/DC field devices, eliminating the need for external signal conditioning or interposing relays.
- Full galvanic isolation (500V AC) between all eight input channels and the backplane prevents ground loops, blocks electrical interference, and protects the controller and module from high-voltage transients.
- Each channel operates independently, ensuring a fault on one channel does not affect the others, significantly enhancing system reliability.
-
Built-in Voltage Supervision Function
- Integrates a unique field power supply supervision feature. Channel 1 monitors the power for channels 2-4, and channel 8 monitors the power for channels 5-7.
- If the field power supply fails or is disconnected, the module automatically detects the loss, activates an internal error flag, illuminates a dedicated Warning LED, and sends a diagnostic signal over the ModuleBus to the controller.
- This function is critical for preventive maintenance and safety systems, ensuring loss of input power does not lead to undetected false signals.
-
Advanced Signal Conditioning & Protection
- Each channel is equipped with current limiting resistors, EMC protection circuits, optical isolation barriers, and a 6 ms analog filter.
- The filter effectively suppresses electrical noise, contact bounces, and transient spikes common in industrial environments, guaranteeing stable and accurate signal reading.
- Comprehensive EMC compliance ensures reliable performance in electrically noisy environments such as power plants and industrial factories.
-
Real-Time Status Indication & Diagnostics
- Features per-channel green LED indicators for clear visual feedback of the input ON/OFF status.
- A dedicated red Warning LED alerts operators to module faults, field power loss, or internal errors.
- Full diagnostic data is accessible via the control system (e.g., 800xA), enabling remote monitoring, rapid troubleshooting, and minimizing system downtime.
-
Seamless S800 I/O Integration
- Designed as a plug-and-play module for the S800 I/O system, compatible with standard S800 base units and termination units.
- Supports hot-swapping under specific configurations, allowing for module replacement without shutting down the entire system.
- Fully compatible with ABB AC 800M controllers and System 800xA, ensuring seamless integration into modern distributed control architectures.
Application Scenarios
The ABB DI821 is widely deployed across industries requiring monitoring of high-voltage (230V) digital signals:
- Power Generation & Distribution
- Monitoring the status of high-voltage switchgear, circuit breakers, contactors, and protection relays.
- Feedback signals from transformer tap changers and capacitor bank switches.
- Status monitoring of UPS systems and emergency power supplies in power plants and substations.
- Oil & Gas, Petrochemical & Chemical
- Status detection of 230V solenoid valves, actuators, and emergency shutdown (ESD) valves.
- Monitoring position feedback from large process valves and dampers.
- Receiving signals from safety interlocks and fire/gas detection systems.
- Water & Wastewater Treatment
- Monitoring the run/stop status of high-voltage pumps, blowers, and motors.
- Feedback signals from level switches, flow switches, and pressure switches operating on 230V.
- Manufacturing & Material Processing
- Status monitoring of conveyors, large motors, and contactors in automotive, steel, and cement plants.
- Feedback from safety gates, emergency stops, and limit switches in heavy machinery.
- Building Automation & Infrastructure
- Monitoring the status of HVAC equipment, high-voltage lighting controls, and fire protection systems.
- Feedback signals from electrical distribution panels and generator sets.
Key Advantages
- Direct High-Voltage Interface: Eliminates external relays, reducing cost, complexity, and potential points of failure.
- Superior Isolation & Safety: Galvanic isolation protects the control system and personnel in high-voltage environments.
- Proactive Diagnostics: Integrated voltage supervision prevents silent failures caused by lost field power.
- Industrial Robustness: Filtered inputs and EMC protection ensure stable operation in harsh, noisy environments.
- System Compatibility: Full integration with ABB’s S800 I/O and 800xA ecosystem for a unified control solution.
