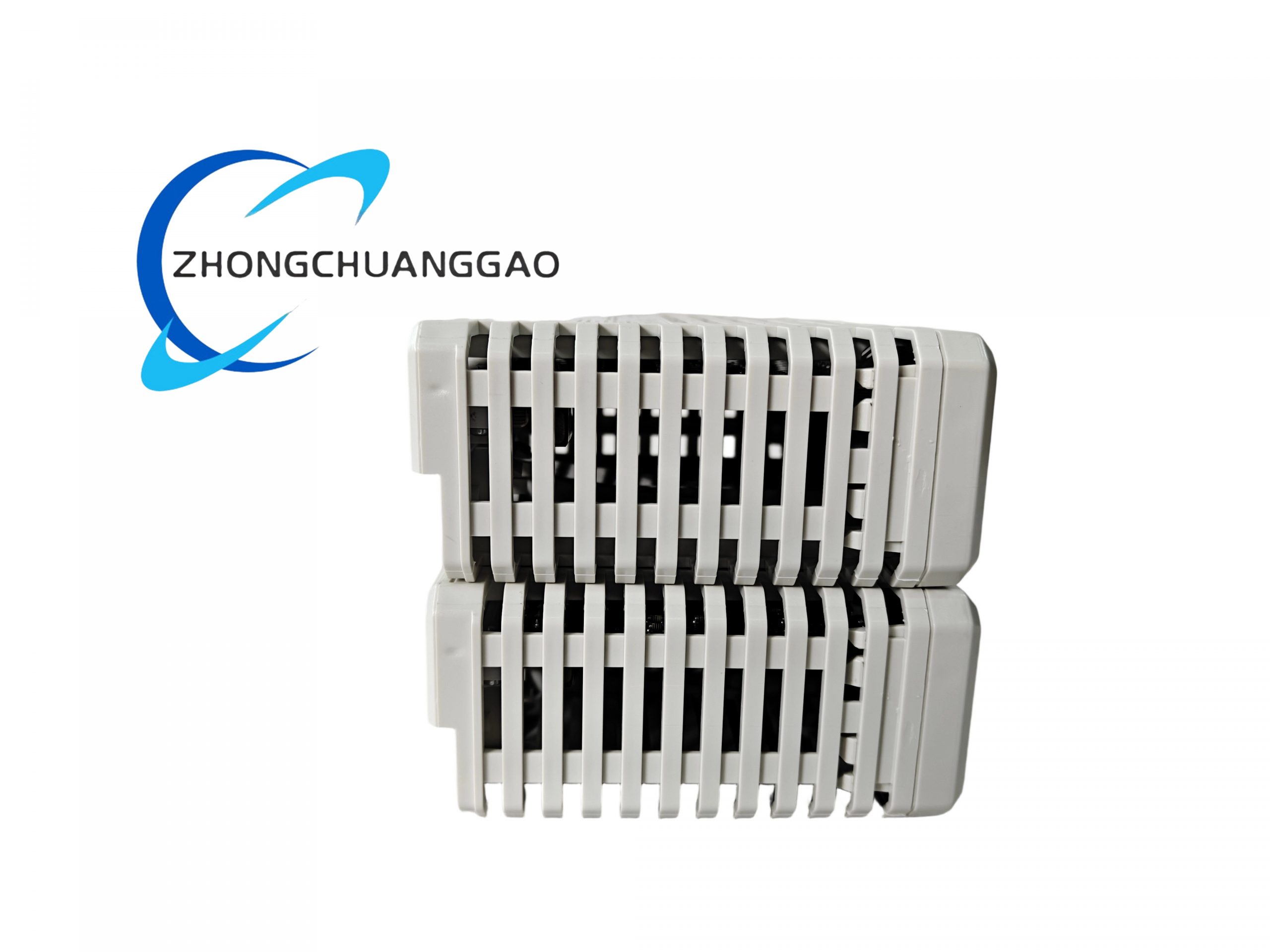

ABB DI810 3BSE008508R1 Digital Input Module

Product Short Description

Technical Specifications

Input Channels: 16 channels.
Input Voltage Range: 18 to 30 V DC.
Input Current: 6 mA at 24 V DC.
Isolation: Divided into two isolated groups, each with 8 channels.
Dimensions: The product is 102 mm in depth, 119 mm in height, and 45 mm in width, and weighs 0.2 kg.

Function Features

Current Sinking Capability: It has a current sinking capability for 24 V DC input.
Voltage Supervision: Each of the two isolated groups has a voltage supervision function. If the voltage disappears, the process voltage supervision input will send a channel error signal, and the error signal can be read via the ModuleBus.

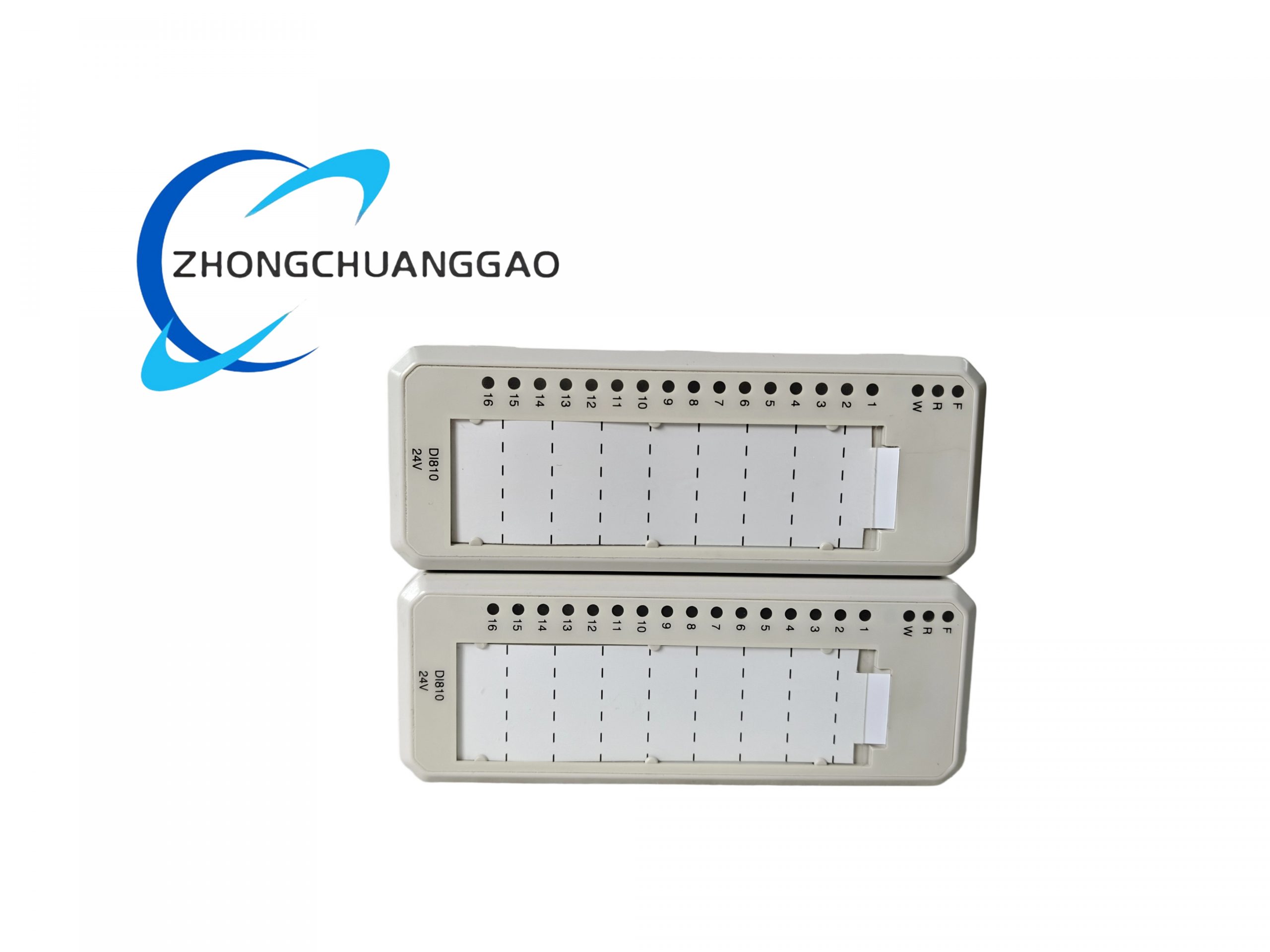

Input Status Indicator: Each input channel is equipped with an input status indicator LED, which allows for easy monitoring of the input state.
EMC Protection: Each input channel includes EMC protection components to ensure stable operation in a complex electromagnetic environment.

Application Scenarios

Power and Energy: Substation automation (monitoring circuit breaker and switch status), power plants (signal acquisition of boilers, turbines, and cooling systems), and smart grids (remote signal monitoring and control).
Process Industry: Oil and gas (monitoring pipeline pressure and valve status), chemical and pharmaceutical (equipment start/stop and alarm signal acquisition), and steel and metallurgy (signal acquisition of blast furnaces and rolling mills).
Manufacturing and Factory Automation: Automobile manufacturing (signal acquisition of robots and conveyor systems), electronics manufacturing (production line control), and logistics and warehousing (signal acquisition of conveyor belts and AGV carts).
Rail Transit: Train control (monitoring signal lights, turnouts, and door status) and subway and light rail (power system status acquisition).
Water Treatment and Environmental Protection: Sewage treatment (monitoring pump stations, valves, and alarm signals) and waterworks (level, flow, and pressure monitoring).
