Product Short Description
Product Introduction

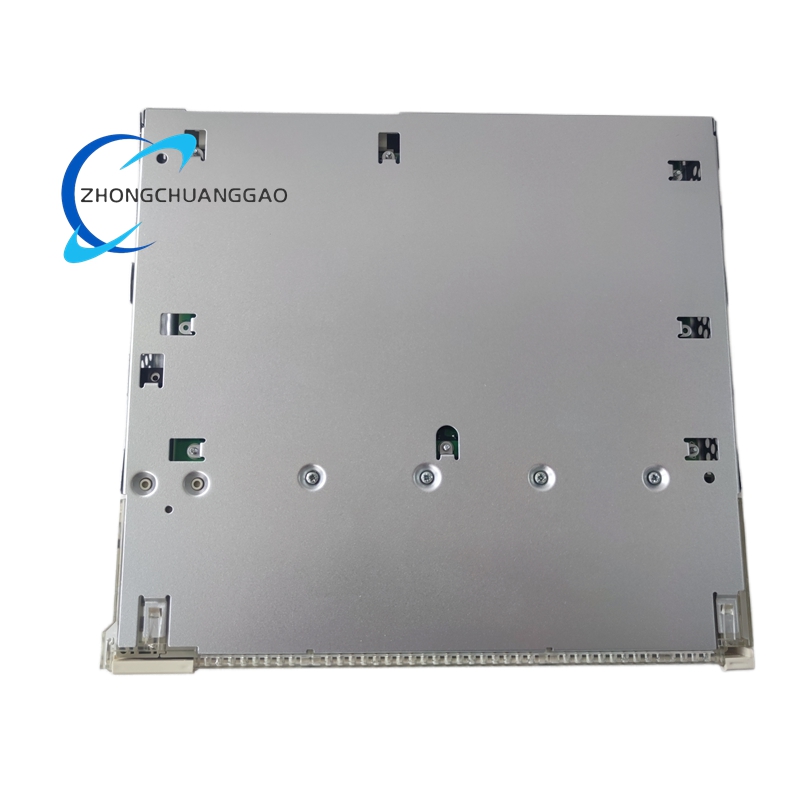

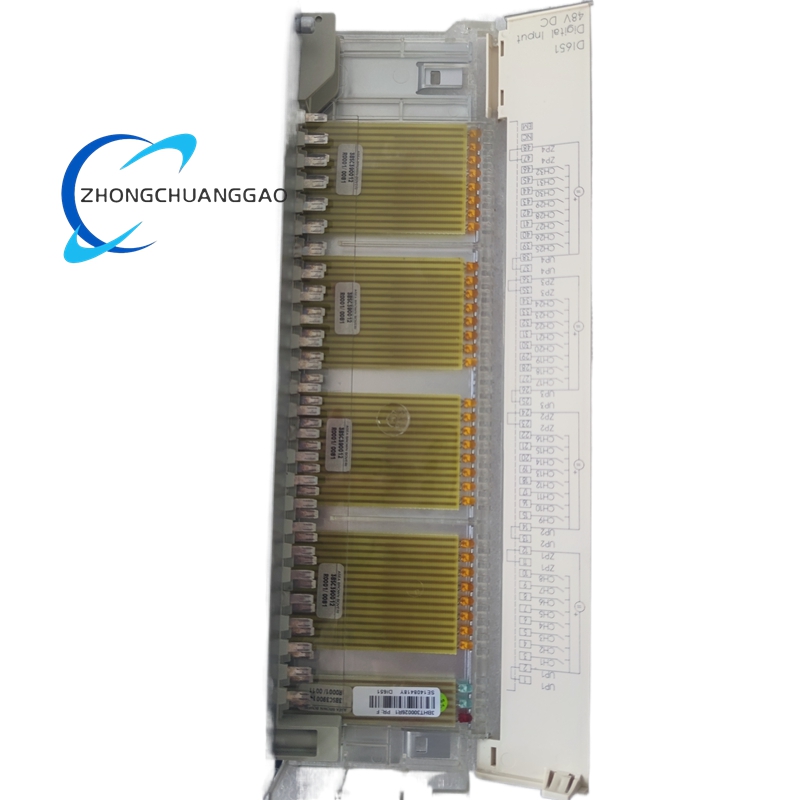

The ABB DI651 is a high‑performance, 32‑channel digital input module belonging to ABB’s S500/S600 I/O series, engineered for seamless integration with the AC 800M distributed control system (DCS). It serves as a robust interface for acquiring discrete on/off signals from industrial field devices, converting 24 V DC or 48 V DC input signals into processable digital data for real‑time control and monitoring. Designed for harsh industrial environments, the module features galvanic isolation, advanced signal conditioning, and built‑in diagnostics to ensure reliable operation and signal integrity. Its compact, modular design supports hot‑swap functionality, enabling module replacement without system shutdown, making it ideal for large‑scale process automation, power generation, and manufacturing applications requiring high‑channel‑count signal acquisition.
Description
Technical Specifications
Input Configuration
- Number of Input Channels: 32 digital input channels (organized into 4 isolated groups of 8 channels each)
- Input Signal Type: Dry contact, NAMUR, TTL, and 2‑wire proximity switch compatible
- Input Voltage: 24 V DC (18–30 V DC range); 48 V DC isolated variant available
- Input Current: Typical 5 mA per channel at 24 V DC
- Response Time: ≤ 1 ms (high‑speed mode); ≤ 5 ms (standard mode)
- Sampling Rate: Up to 1 ms per channel for high‑speed signal detection
- Signal Detection: Supports both sink and source input configurations
- Cable Length: Up to 500 m for shielded cables; up to 300 m for unshielded cables
Isolation & Protection
- Galvanic Isolation: 500 V AC between input groups; 1500 V AC between field and system electronics
- Opto‑Isolation: Integrated opto‑couplers for each channel group to eliminate ground loops
- Overvoltage Protection: Complies with IEC 61000‑4‑5 surge immunity standards
- Reverse Polarity Protection: Built‑in protection for input circuits
- Overvoltage Category: II, Pollution Degree 2
Power Specifications
- Supply Voltage: 24 V DC (-15%, +20%) via system backplane
- Power Consumption: Typical 2.5 W; Maximum 3.0 W
- Power Dissipation: ≤ 3.0 W
Physical & Mechanical Data
- Dimensions: 252 mm (L) × 273 mm (H) × 40 mm (W)
- Weight: 1.23 kg (net)
- Mounting: Rack‑mounted (standard 19‑inch cabinet) or DIN‑rail compatible
- Terminals: Pluggable screw terminal blocks for field wiring
- Housing: Industrial‑grade flame‑retardant plastic (UL 94 V‑0)
- Ingress Protection: IP20 (front face)
Environmental Ratings
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5%–95% non‑condensing
- Vibration Resistance: 5 Hz–2000 Hz, 1 g (IEC 60068‑2‑6)
- Shock Resistance: 15 g, 11 ms half‑sinusoidal (IEC 60068‑2‑27)
Certifications & Compliance
- Safety: CE, UL, CSA, ATEX (for hazardous areas)
- EMC: IEC 61000‑6‑2 (immunity), IEC 61000‑6‑4 (emission)
- RoHS: EU RoHS compliant
Functional Features
- 32‑Channel High Density: Maximizes I/O capacity in limited cabinet space for large‑scale systems
- Multi‑Signal Compatibility: Supports dry contacts, NAMUR, TTL, and proximity switch inputs for versatile field device connectivity
- Galvanic & Opto‑Isolation: Protects control system from electrical noise, surges, and ground loops
- High‑Speed Response: Sub‑1 ms response time for time‑critical process monitoring and interlocking
- Hot‑Swap Capability: Allows module installation/removal without powering down the control system, minimizing downtime
- Individual Channel LEDs: 32 status LEDs for real‑time visual monitoring of each input channel state
- Advanced Diagnostics: Built‑in module health monitoring, channel fault detection, and power supply status reporting
- Sequence of Event (SOE) Recording: Captures and time‑stamps input signal transitions with microsecond precision for process analysis
- Pulse Catching: Detects and registers short‑duration pulse signals for accurate event counting
- Flexible Configuration: Configurable input types and response times via system software
- Seamless Integration: Direct compatibility with ABB AC 800M DCS and S500/S600 I/O systems
- Robust Construction: Industrial‑grade design for reliable operation in extreme temperatures and high‑vibration environments
Application Scenarios
- Process Industries: Oil and gas refineries, chemical plants, pharmaceutical manufacturing, and food & beverage processing
- Power Generation: Thermal power plants, hydroelectric facilities, wind farms, and solar power installations
- Manufacturing Automation: Automotive assembly lines, metal fabrication, packaging machinery, and material handling systems
- Water & Wastewater: Treatment plants, pumping stations, water distribution networks, and sewage treatment facilities
- Mining & Minerals: Conveyor systems, crushing plants, ore processing, and material handling equipment
- Power Distribution: Substation automation, switchgear monitoring, circuit breaker status, and energy management systems
- Marine & Offshore: Shipboard automation, offshore drilling platforms, and vessel control systems
- Building Automation: HVAC systems, fire safety, access control, and lighting control
- Hazardous Areas: Explosion‑proof applications in petrochemical, pharmaceutical, and mining industries (ATEX compliant)
- System Retrofits: Upgrading legacy DCS/PLC systems with modern high‑density digital I/O capabilities
