Product Short Description
Technical Specifications
- Input Channels: 16 channels (configurable for PNP input type).
- Input Voltage: 24 V DC (compatible with 18–30 V DC).
- Isolation: Channel-to-bus isolation (500 V AC) to enhance system reliability.
- Response Time: ≤ 2 ms for rapid signal processing.
- Communication Interface: PROFIBUS DP protocol for high-speed data transmission.
- Operating Temperature: -20 °C to +70 °C (-4 °F to +158 °F).
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F).
- Mounting: DIN rail installation for easy deployment.
- Safety Features: Supports safety-related applications (e.g., emergency stop systems).
- Certifications: Compliant with IEC 61508 (SIL2/SIL3) and ISO 13849 (PL e) for functional safety.
Description
Key Features
- High Reliability: Built with industrial-grade components and advanced circuit design to withstand harsh conditions (e.g., vibration, EMI).
- Flexible Configuration: Supports multiple input types and channel quantities to meet diverse control requirements.
- Programmable Functionality: Enables customization of control logic and algorithms via software programming.
- Remote Monitoring: Facilitates remote access and management of the module through network connections, improving system maintainability.

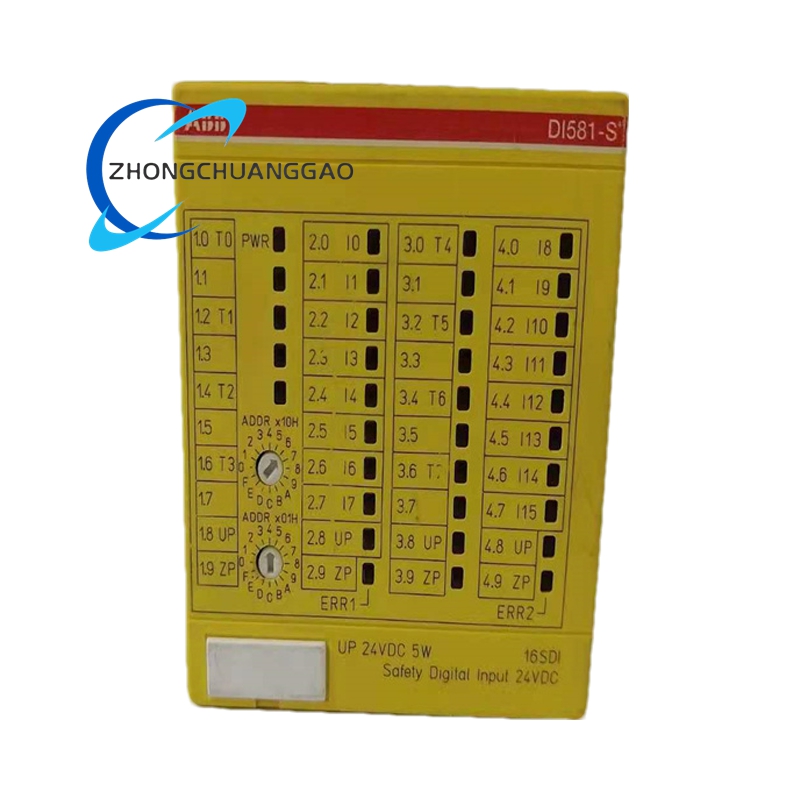

- Diagnostic Capabilities: Features LED indicators for channel status and module health monitoring, simplifying troubleshooting.
- Safety Integration: Designed for use in safety-critical systems, providing redundant protection for personnel and equipment.
Application Scenarios
- Process Control: Monitors and controls industrial processes (e.g., chemical reactions, power generation).
- Safety Systems: Implements emergency stop functions and alarm monitoring in hazardous environments.
- Material Handling: Manages conveyor belts, AGVs, and robotic systems in logistics and manufacturing.
- Machine Diagnostics: Detects faults and abnormal events in equipment (e.g., motor overheating, valve leakage).
- Building Automation: Integrates HVAC, lighting, and access control systems into centralized management platforms.
Integration and Compatibility
- Seamlessly interfaces with ABB’s Freelance 800F DCS, AC500 PLCs, and other control systems.
- Supports PROFIBUS DP, enabling integration with third-party devices and networks.
- Compatible with ABB’s engineering tools (e.g., Automation Builder) for streamlined configuration and diagnostics.
Industries
- Oil and Gas: Used in pipeline monitoring and refinery operations.
- Power Generation: Manages grid stability and transformer alarms.
- Metallurgy: Controls blast furnaces and rolling mills.
- Pharmaceuticals: Ensures compliance with safety standards in cleanroom environments.
- Food and Beverage: Monitors production lines and packaging equipment.
