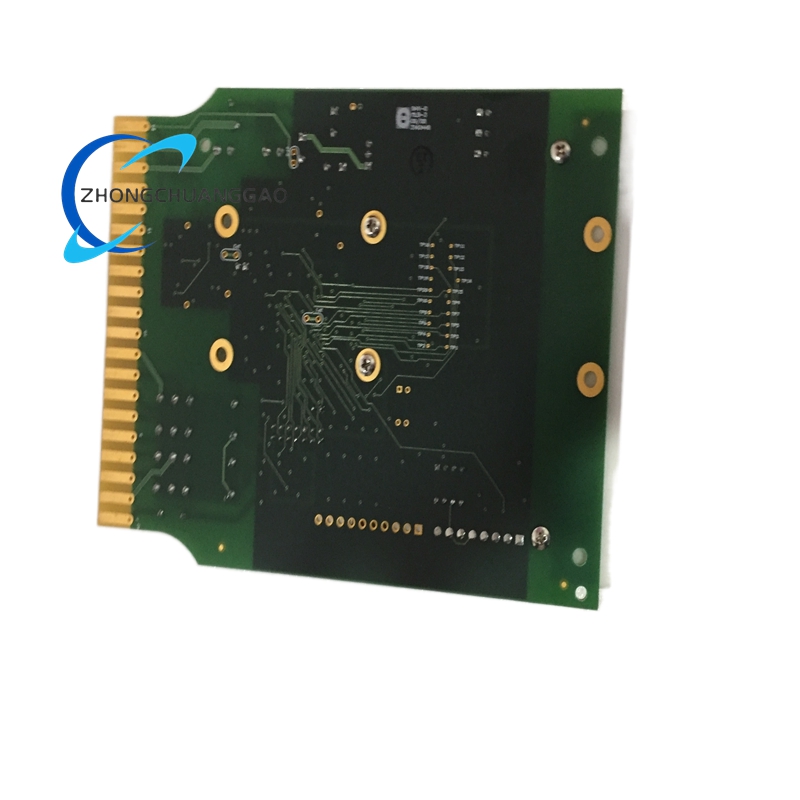

ABB DFI-110-340F Inverter Interface Module

Description

Technical Specifications

• Product Type: Inverter Interface Module
• Compatible Inverters: ABB ACS100, ACS500, ACS800 series variable frequency drives
• Input Signal Types:
  • Analog: 0–10 V DC, 4–20 mA DC
  • Digital: Switch signals, pulse signals (up to 10 kHz frequency)
• Output Signal Type: PWM (Pulse Width Modulation) pulse signals
• Power Supply: 24 V DC (voltage range 18–30 V DC)
• Power Consumption: ≤ 5 W
• Operating Temperature: -20 °C to +55 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% – 95% RH (non-condensing)
• Protection Class: IP20 (enclosed, panel mount)
• Isolation Voltage: 250 V AC (signal-channel to system isolation)
• Dimensions (W x H x D): Standard modular format, 70 mm x 120 mm x 40 mm
• Weight: Approximately 0.5 kg
• Mounting: DIN rail mounting or panel mounting
• Certifications: CE, UL, EMC compliant (EN 61000-6-2, EN 61000-6-4)
• Signal Accuracy: Analog signal error ≤ ±0.1% of full scale
• Response Time: ≤ 5 ms (signal input to output conversion)

Key Features & Benefits

1. Broad Compatibility with ABB Inverter Series
   • Fully compatible with ABB’s flagship ACS100, ACS500, and ACS800 inverter series, ensuring seamless integration without configuration conflicts.
   • Supports direct plug-and-play connection to ABB inverter control ports, eliminating the need for custom wiring or adapters.
   • Preserves full inverter functionality, including parameter control, fault monitoring, and speed regulation when connected.
2. Multi-Format Signal Conversion
   • Processes diverse input signals: 0–10 V/4–20 mA analog signals, switch digital signals, and high-speed pulse signals.
   • Converts input signals into precise PWM pulse outputs for accurate inverter control.
   • Supports bidirectional signal transmission, enabling both control command sending and status feedback reception.
3. High-Precision Signal Processing
   • Equipped with high-resolution analog-to-digital converters (ADC) and digital-to-pulse converters.
   • Delivers analog signal accuracy ≤ ±0.1% F.S. and stable pulse output with minimal jitter.
   • Fast response time (≤ 5 ms) ensures real-time signal conversion for dynamic motor control applications.
4. Robust Industrial Reliability
   • Galvanic isolation (250 V AC) between field signals and internal circuits prevents ground loops and electrical interference.
   • Operates stably in harsh environments with high electrical noise, vibration, and temperature fluctuations.
   • IP20 protection rating safeguards against dust and accidental contact in industrial cabinets.
5. Simplified Installation & Maintenance
   • Compact modular design with standard DIN rail mounting for easy installation in control cabinets.
   • Clearly labeled terminal blocks with color-coded connections reduce wiring errors and commissioning time.
   • Hot-swappable design allows module replacement without shutting down the entire inverter system.
   • Built-in LED indicators display power status, signal activity, and fault conditions for quick diagnostics.
6. Comprehensive Protection Mechanisms
   • Integrates overvoltage, overcurrent, and reverse polarity protection for power and signal terminals.
   • Short-circuit protection on output channels prevents damage to the inverter or connected field devices.
   • EMC compliance ensures stable operation without interfering with other electronic equipment in industrial facilities.

Application Scenarios

• Industrial Manufacturing & Automation
  • Controls motor speed and torque in conveyor systems, packaging machines, and assembly lines.
  • Connects pressure, flow, and speed sensors to ABB inverters for closed-loop process control.
  • Integrates with PLC systems to enable automated motor control in automotive and electronics manufacturing.
• HVAC & Building Automation
  • Regulates fan and pump motor speed in heating, ventilation, and air conditioning systems.
  • Interfaces with temperature/humidity controllers and building management systems (BMS).
  • Optimizes energy consumption by adjusting motor speed based on real-time demand signals.
• Water & Wastewater Treatment
  • Controls water pump and aerator motors in treatment plants and distribution networks.
  • Connects level sensors and flow meters to inverters for automated water flow regulation.
  • Ensures stable operation in damp, humid, and corrosive wastewater environments.
• Mining & Metals Processing
  • Drives crushers, mills, and material handling motors in mineral processing facilities.
  • Withstands high dust, vibration, and extreme temperatures in mining operations.
  • Provides reliable signal conversion for heavy-duty motor control in metal smelters and rolling mills.
• Oil & Gas Industry
  • Controls pump and compressor motors in oil extraction, refining, and pipeline systems.
  • Supports ATEX-compliant operation in hazardous areas with explosive gas atmospheres.
  • Ensures accurate speed control for critical processes in offshore platforms and refineries.
• Power Generation
  • Regulates auxiliary motors in power plants, including cooling systems and fuel handling equipment.
  • Interfaces with SCADA systems for remote monitoring and control of motor-driven equipment.
  • Operates reliably in high-electrical-noise environments of power generation facilities.
• Marine & Offshore Applications
  • Controls propulsion and auxiliary motors on commercial vessels and offshore rigs.
  • Resists salt spray, humidity, and vibration typical of marine environments.
  • Ensures stable motor control for shipboard pumping, ventilation, and cargo handling systems.
