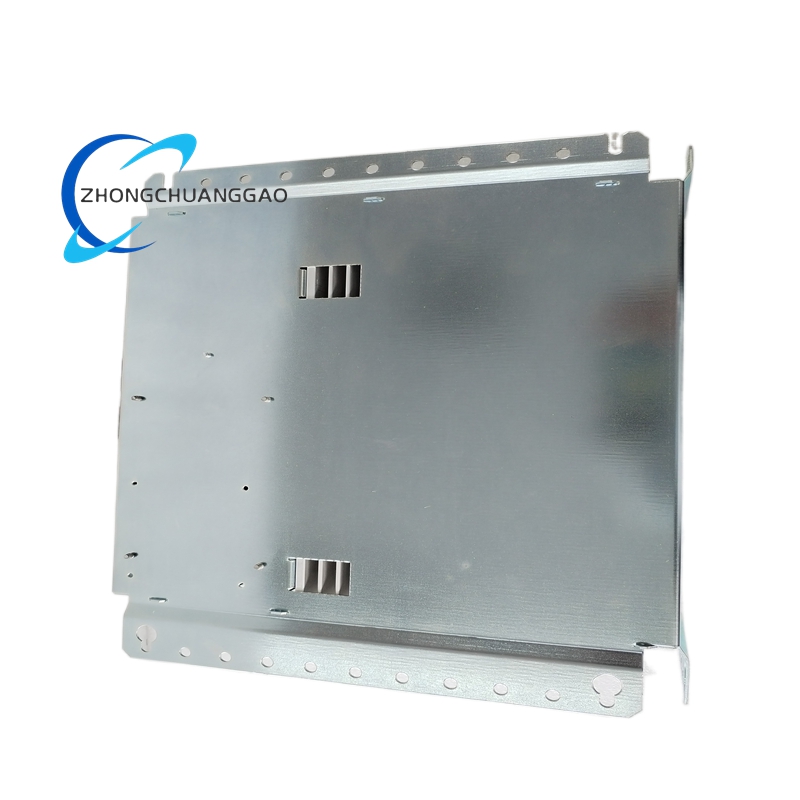

ABB DCF503-0050 DCF503B0050 Single-Phase External Field Exciter

Description

Technical Specifications

Core Excitation Parameters

• Nominal Output Current: 50 A DC (continuous)
• Peak Output Current: 56 A DC (intermittent)
• Output Voltage Range: 2 V DC to 500 V DC (adjustable)
• Control Mode: Closed-loop current regulation (constant field current, field weakening)
• Quadrant Operation: 1-quadrant (half-controlled rectifier, no regeneration)
• Supply Configuration: Single-phase external AC input

Electrical Input Specifications

• Input Voltage: 400 V AC ±10% (single-phase)
• Input Frequency: 50/60 Hz
• Input Isolation: 2.5 kV AC galvanic isolation (input to output, 1 minute)
• Power Factor: > 0.9 (at full load)
• Efficiency: ≥ 92% (at nominal load)

Control & Communication

• Control Interface: Analog input (0–10 V DC or 4–20 mA DC) for setpoint
• Feedback: Internal current shunt with 0.1% accuracy
• Communication: Modbus RTU (RS485) for remote monitoring and configuration
• Compatibility: SDCS-CON-2 control board (DCS500B series)
• Response Time: < 10 ms (current loop settling time)

Protection Features

• Overcurrent Protection: Instantaneous trip at > 150% of nominal current
• Overvoltage Protection: Adjustable threshold (up to 520 V DC)
• Overtemperature Protection: Thermal shutdown at heatsink > 85 °C
• Undervoltage Lockout: Activates below 320 V AC input
• Short-Circuit Protection: Current-limiting with auto-retry
• Field Loss Detection: Alarms on open field winding or low current

Physical & Mechanical Specifications

• Dimensions (L×W×H): 370 mm × 347 mm × 125 mm
• Net Weight: 10.36 kg
• Mounting: Flange-mount (cabinet) or standalone (wall-mount with bracket)
• Terminals: Heavy-duty screw terminals (output: 50 mm², input: 35 mm²)
• Cooling: Forced air (integrated fan, 24 V DC) + heatsink
• Enclosure Rating: IP20 (front), IP00 (rear)

Environmental Specifications

• Operating Temperature: 0 °C to +45 °C (derate 1% per °C above 45 °C)
• Storage Temperature: -25 °C to +70 °C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (5–150 Hz, 0.5 g)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms)
• EMC Compliance: IEC 61800-3 (category C2), IEC 61000-6-2, IEC 61000-6-4

Certifications

• CE, UL, cULus, CSA
• RoHS 2 (2011/65/EU)
• ATEX II 3G (non-hazardous areas only)
• HS Code: 85044082

Functional Features

1. Precision Excitation Control

• Closed-Loop Current Regulation: Maintains field current within ±0.5% of setpoint, ensuring consistent motor performance across load and temperature variations.
• Field Weakening Capability: Enables motor speed operation above base speed by reducing field current, supporting high-speed applications such as centrifugal pumps and fans.
• Smooth Start-Up: Soft current ramp prevents inrush currents, protecting the motor field winding and power supply.
• Fast Dynamic Response: < 10 ms settling time for current changes, enabling precise torque control in high-performance drive systems.

2. Robust Power Stage Design

• Thyristor-Based Topology: Half-controlled rectifier delivers high efficiency and reliability for 1-quadrant applications, eliminating the need for regenerative components.
• High Isolation: 2.5 kV AC isolation between input and output protects control circuits from field-side transients and ground loops.
• Low Ripple Output: Integrated filtering reduces output ripple to < 1% Vp-p, minimizing motor heating and noise.
• Forced Air Cooling: Redundant fan system ensures stable operation at full load in high-temperature environments.

3. Comprehensive Protection & Diagnostics

• Multi-Layered Protection: Overcurrent, overvoltage, overtemperature, undervoltage, and short-circuit protection prevent damage to the exciter, motor, and drive system.
• Field Loss Detection: Continuously monitors field current and triggers an alarm or shutdown if the winding is open or current is below a critical threshold.
• Remote Diagnostics: Modbus RTU provides real-time access to operating parameters (output current/voltage, temperature, faults) for predictive maintenance.
• Status Indicators: LED lights for power (PWR), OK (RUN), fault (FLT), and fan status enable quick visual troubleshooting.

4. Easy Integration & Lifecycle Support

• Modular Compatibility: Seamlessly integrates with ABB DCS500B and DCS800 DC drives via the SDCS-CON-2 control board, supporting both new installations and retrofits.
• Flexible Mounting: Flange-mount for cabinet integration or wall-mount for standalone use, adapting to diverse system architectures.
• Superseded by DCF803-0050: Direct form, fit, and function replacement ensures long-term availability and compatibility with existing systems.
• User-Friendly Configuration: Local potentiometer and push-button interface for basic setup; remote configuration via Modbus for advanced parameters.

5. Industrial-Grade Reliability

• Wide Temperature Operation: Performs in harsh industrial environments from 0 °C to +45 °C, with derating for higher temperatures.
• Vibration & Shock Resistance: Complies with international standards, ensuring durability in heavy machinery and power plant applications.
• Low Maintenance: Forced air cooling system with long-life fans (50,000 hours MTBF) reduces maintenance requirements.
• Global Compliance: Certified to international safety and EMC standards, ensuring compatibility with global industrial regulations.

Application Scenarios

1. DC Motor Drives (Industrial Automation)

• DCS500B/DCS800 Series Integration: Serves as the primary field exciter for ABB DC drives in conveyor systems, cranes, and hoists, providing precise speed and torque control.
• High-Speed Applications: Enables field weakening for centrifugal pumps, fans, and blowers, supporting operation above base speed for increased throughput.
• Heavy Machinery: Controls excitation in steel mill rolling mills, paper machine drives, and mining equipment, ensuring reliable performance under high loads.

2. Power Generation

• Generator Excitation: Provides auxiliary excitation for small hydroelectric generators, diesel generators, and emergency power systems, ensuring stable voltage output.
• Turbine Control: Controls the field current of steam turbine generators in thermal power plants, supporting grid synchronization and load regulation.
• Renewable Energy: Integrates with wind turbine pitch control systems and solar thermal power plant drives, enabling efficient energy conversion.

3. Oil & Gas Industry

• Upstream Production: Powers DC motors in wellhead pumps, mud pumps, and drilling rigs, supporting continuous operation in remote, harsh environments.
• Midstream Pipelines: Controls pipeline compressors and pumps, ensuring stable flow rates and pressure regulation for crude oil and natural gas transmission.
• Refining Processes: Drives agitators, mixers, and pumps in refineries and petrochemical plants, withstanding high temperatures and vibration.

4. Steel & Metals Processing

• Rolling Mills: Provides excitation for DC motors in hot and cold rolling mills, enabling precise control of strip thickness and speed.
• Cranes & Hoists: Powers lifting equipment in steel plants, supporting heavy loads and fast cycle times with reliable torque control.
• Foundries: Drives DC motors in furnace fans, ladle cranes, and casting machines, withstanding high temperatures and dust.

5. Water & Wastewater Treatment

• Pump Stations: Controls large DC pumps for raw water intake, wastewater transfer, and sludge handling, ensuring efficient operation and low energy consumption.
• Aeration Systems: Drives blowers and agitators in activated sludge processes, supporting precise oxygen transfer for biological treatment.
• Desalination Plants: Powers DC motors in reverse osmosis systems, ensuring stable pressure and flow rates for seawater desalination.

6. Retrofits & Lifecycle Support

• Legacy Drive Upgrades: Replaces obsolete field exciters in existing DC drive systems, extending the lifespan of critical industrial equipment.
• System Modernization: Integrates with new control systems via Modbus RTU, enabling remote monitoring and control for improved operational efficiency.
• Spare Part Replacement: Direct replacement for DCF503-0050 units in DCS500B systems, ensuring minimal downtime for maintenance and repairs.
