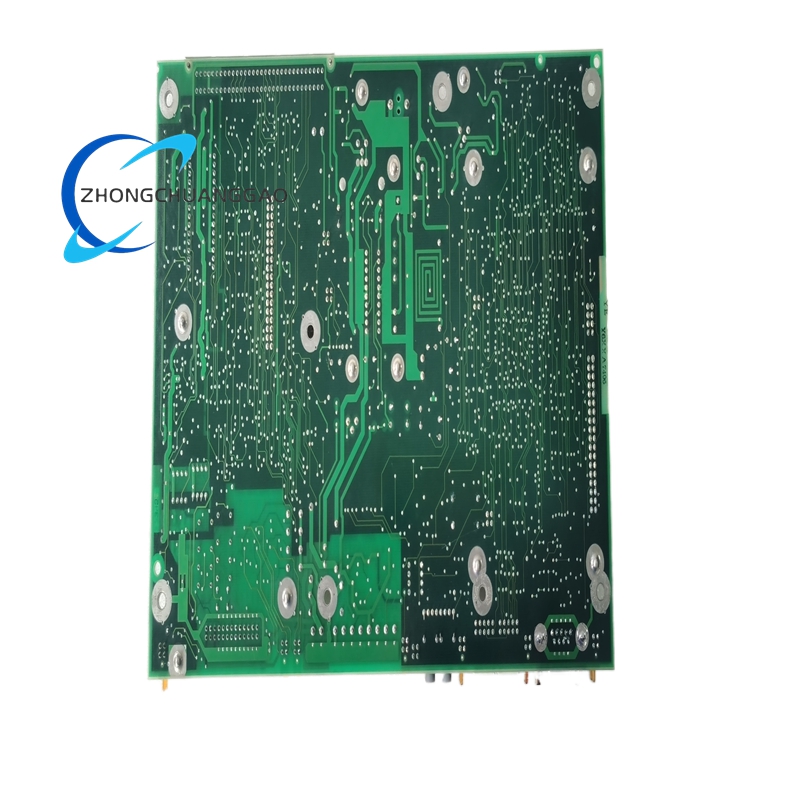

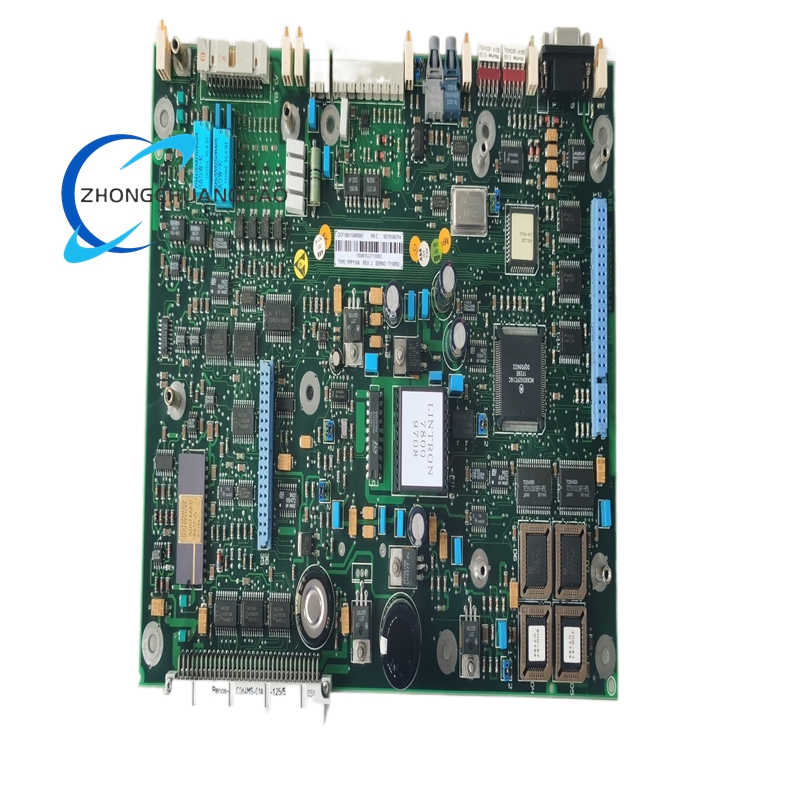

ABB DCF1061134R0001 YPP110A Printed Circuit Board (PCB) Module

Description

Technical Specifications

Core Electrical & Interface Parameters

• Module Type: Printed Circuit Board (PCB) Control/Interface Module
• Supply Voltage: 24 V DC (18–30 V DC operating range)
• Power Consumption: ≤ 5 W (typical)
• Isolation Voltage: 1500 V AC (input/output isolation, 1 minute)
• Signal Compatibility: TTL/CMOS logic levels, industrial analog/digital signals
• Communication Interfaces:
  • Serial: RS232, RS485 (Modbus RTU compatible)
  • Parallel: Digital I/O, control signal buses
  • Proprietary: ABB internal system bus for module‑to‑module communication
• I/O Channels: Configurable digital input/output (DI/DO) and analog input/output (AI/AO) channels
• Data Transfer Rate: Up to 1 Mbps for serial communication; parallel bus speeds up to 10 MHz

Physical & Mechanical Specifications

• Dimensions: Standard Eurocard format (160 mm × 100 mm × 20 mm)
• Weight: Approx. 300 g
• Mounting: DIN‑rail mount or rack‑mount (card cage)
• Connectors: Industrial‑grade pin headers, screw terminals, and D‑sub connectors
• PCB Material: FR‑4 (flame‑retardant, high‑temperature resistant)
• Component Grade: Industrial‑grade, extended temperature range components

Environmental Specifications

• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH (non‑condensing)
• Vibration Resistance: IEC 60068‑2‑6 (5–200 Hz, 1 g)
• Shock Resistance: IEC 60068‑2‑27 (15 g, 11 ms)
• EMC Compliance: IEC 61000‑6‑2 (immunity), IEC 61000‑6‑4 (emission)

Certifications

• CE, UL, cULus, CSA
• RoHS 2 (2011/65/EU)
• ATEX II 3G (for non‑hazardous industrial areas)

Functional Features

1. High‑Performance Signal Processing

• Precision Signal Conversion: Integrates high‑resolution A/D and D/A converters for accurate analog signal acquisition and control output.
• Digital Logic Control: Implements embedded control logic for real‑time signal conditioning, filtering, and processing.
• Signal Isolation: Galvanic isolation between input and output channels eliminates ground loops and electrical interference.
• Fast Response Time: Sub‑millisecond signal processing latency for critical control applications.

2. Multi‑Protocol Communication

• Serial Communication: Supports RS232 and RS485 with Modbus RTU for seamless integration with PLCs, HMIs, and SCADA systems.
• Proprietary Bus Interface: Enables high‑speed communication with other ABB modules and control units within the same system.
• Parallel I/O: Provides direct digital and analog I/O connections for local control and sensor/actuator interfacing.
• Diagnostic Communication: Transmits real‑time status, fault, and performance data for remote monitoring and maintenance.

3. Robust Industrial Design

• Extended Temperature Range: Operates reliably in extreme industrial environments from -20 °C to +70 °C.
• Vibration & Shock Resistance: Withstands mechanical stress in heavy machinery and industrial plant environments.
• EMC Protection: Complies with strict EMC standards to ensure operation in electrically noisy industrial settings.
• Long‑Life Components: Uses high‑quality, industrial‑grade components for extended service life and minimal maintenance.

4. Comprehensive Diagnostics & Status Monitoring

• Real‑Time Self‑Diagnostics: Continuously monitors internal circuits, power supply, and communication links for faults.
• Status Indicators: Onboard LED indicators for power, communication, I/O status, and fault alarms.
• Fault Logging: Records historical fault data for troubleshooting and predictive maintenance.
• Configurable Alarms: Triggers user‑defined alarms for out‑of‑range signals, communication errors, and module faults.

5. Flexible Configuration & Integration

• Modular Design: Compatible with ABB’s modular control systems, allowing easy integration into new or existing architectures.
• User‑Configurable I/O: Supports software‑based configuration of I/O channels and communication parameters.
• Hot‑Swappable: Enables module replacement without system shutdown, minimizing downtime.
• Software Compatibility: Works with ABB’s control software tools for configuration, calibration, and firmware updates.

Application Scenarios

1. Industrial Drive Systems

• ABB DC/AC Drives: Serves as a control interface card in ABB DCS500, DCS800, and ACS880 drive series, managing speed, torque, and communication.
• Motor Control: Provides signal processing and I/O interfacing for motor control loops in conveyor systems, pumps, and fans.
• Drive Diagnostics: Transmits drive performance data and fault information to central control systems for monitoring.

2. Power Conversion & Distribution

• UPS Systems: Integrates into ABB uninterruptible power supply systems for control and monitoring of power conversion stages.
• Rectifiers/Inverters: Functions as a control module in industrial rectifiers and inverters for power quality management.
• Power Distribution Units: Facilitates communication and control in ABB power distribution and switchgear systems.

3. Process Automation & Control

• PLC Systems: Acts as an I/O expansion and communication module in ABB AC 800M and 800xA PLC systems.
• Process Control Loops: Provides analog and digital I/O for PID control loops in chemical, pharmaceutical, and food processing plants.
• Remote I/O Stations: Connects remote field sensors and actuators to central control systems via serial communication.

4. Oil & Gas Industry

• Wellhead Control: Interfaces with sensors and actuators in oil and gas wellhead automation systems.
• Pipeline Monitoring: Transmits flow, pressure, and temperature data for pipeline integrity management.
• Refinery Control: Supports control and communication in refinery process units, including distillation and cracking.

5. Power Generation

• Turbine Control: Provides control signals and data acquisition for gas and steam turbine control systems.
• Generator Excitation: Interfaces with excitation control systems in power generators for voltage regulation.
• Power Plant Monitoring: Transmits operational data to plant SCADA systems for real‑time monitoring and control.

6. Water & Wastewater Treatment

• Pump Control: Manages pump speed and flow control in water treatment and distribution systems.
• Process Monitoring: Acquires and transmits water quality parameters (pH, turbidity, flow) for treatment process control.
• Wastewater Treatment: Interfaces with aeration systems, clarifiers, and sludge handling equipment.

7. Retrofit & Legacy System Support

• Legacy System Upgrades: Replaces obsolete control cards in older ABB systems, extending equipment lifespan.
• System Modernization: Integrates legacy equipment with modern communication protocols and control systems.
• Spare Part Replacement: Serves as a direct replacement for faulty modules in existing industrial installations.
