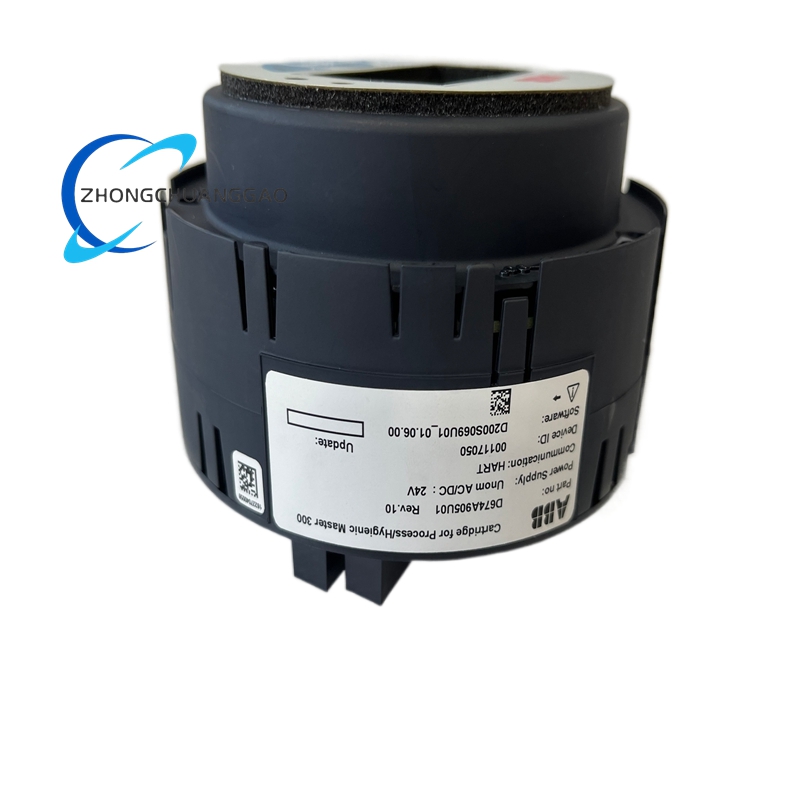

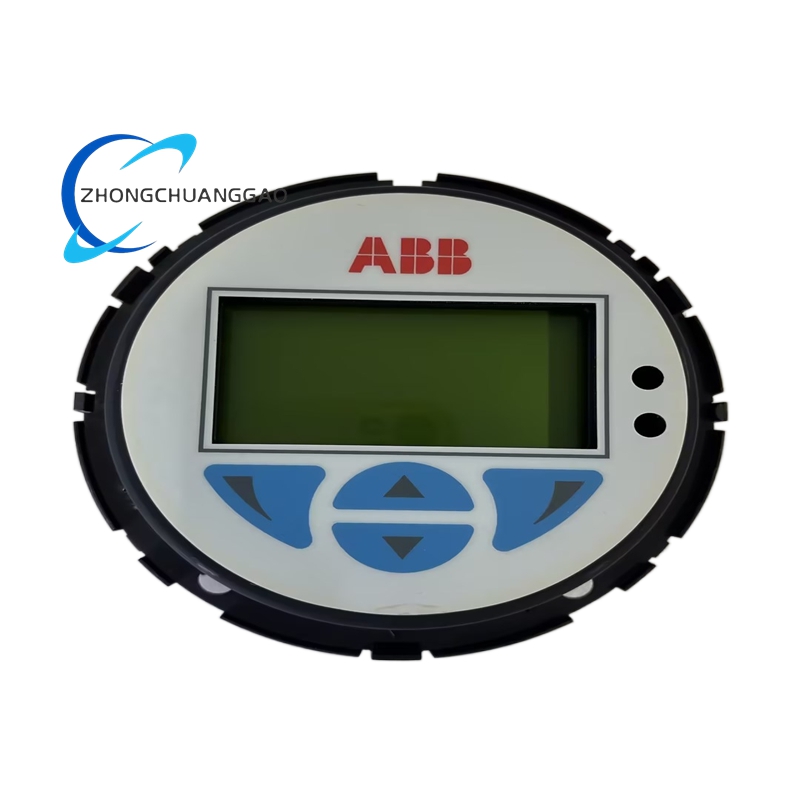

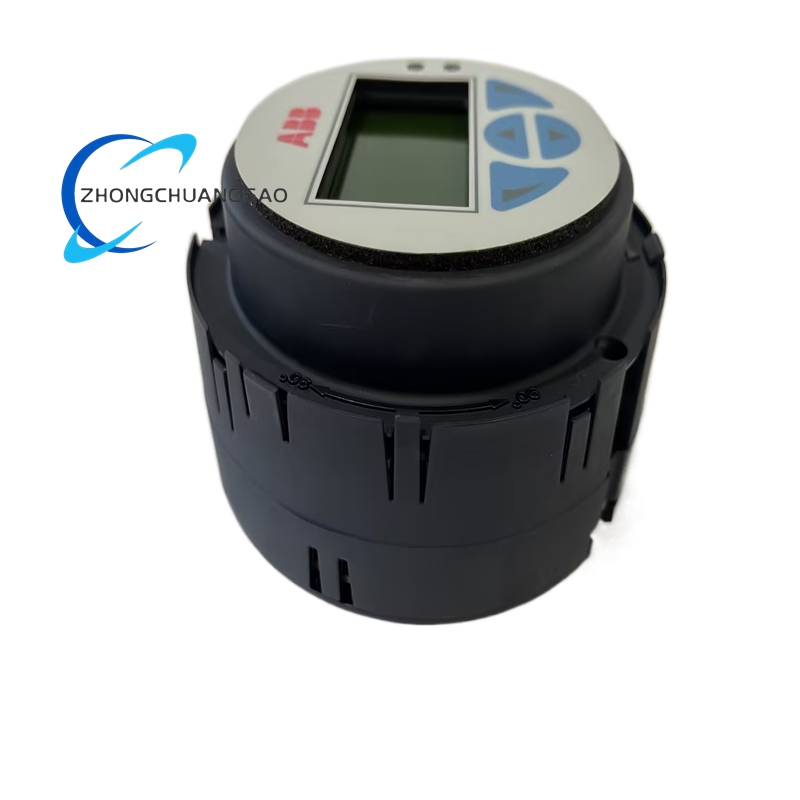

The ABB D674A905U01 is a dedicated plug‑in cartridge module designed for the ABB Master 300 series process and hygienic automation systems. It serves as a core signal processing and communication component for process instrumentation, control loops, and field device integration. This module supports HART communication protocol and analog signal processing, delivering stable, accurate data acquisition and control for industrial process environments including hygienic, pharmaceutical, food and beverage, and general process applications. It features compact mechanical design, industrial‑grade construction, and wide compatibility with Master 300 system carriers and controllers.
Description
Technical Specifications
Power Specifications
- Supply Voltage: 24 V AC/DC universal input
- Power Consumption: Low power dissipation for continuous operation
- Isolation: Full galvanic isolation between field circuits and system side
- Protection: Reverse polarity, overcurrent, and ESD protection
Communication & Signal
- Communication Protocol: HART protocol for field device configuration and diagnostics
- Signal Compatibility: Analog 4–20 mA process signals
- Accuracy: High precision for process measurement and control
- Response Time: Fast real‑time signal processing
Physical Characteristics
- Form Factor: Plug‑in cartridge for Master 300 carrier
- Weight: Approximately 310 grams
- Mounting: Direct insertion into system carrier
- Construction: Industrial‑grade PCB and components
Environmental Ratings
- Operating Temperature: -20 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5%–95% non‑condensing
- Vibration/Shock: Complies with IEC 60068‑2‑1, IEC 60068‑2‑2
- Pollution Degree: 2
Certifications & Compliance
- Safety Approvals: CE, UL, CSA
- EMC: IEC 61000‑6‑2, IEC 61000‑6‑4
- RoHS: EU RoHS compliant
- Hygienic Compatibility: Suitable for hygienic process environments
Functional Features
- HART Communication: Full support for HART protocol for remote device setup, monitoring, and diagnostics
- Analog Signal Processing: Accurate 4–20 mA signal conditioning and conversion
- Plug‑and‑Play Installation: Direct cartridge insertion with no complex wiring
- Galvanic Isolation: Protects system from field noise, surges, and ground loops
- High Reliability: Stable performance in harsh industrial and hygienic environments
- Diagnostic Capability: Built‑in status monitoring and fault indication
- Compact Design: Minimizes cabinet space and supports dense I/O configurations
- Wide Compatibility: Fully interoperable with ABB Master 300 series controllers and carriers
- Hygienic‑Ready: Suitable for clean‑process industries with strict sanitation standards
- Long‑Term Stability: Minimal drift and consistent performance over service life
Application Scenarios
- Hygienic Processing: Food, beverage, dairy, and pharmaceutical manufacturing
- Process Control: Chemical, water treatment, and refining industries
- Pharmaceutical Manufacturing: Sterile production, batching, and clean‑in‑place (CIP) systems
- Food and Beverage: Liquid processing, mixing, pasteurization, and packaging
- Industrial Instrumentation: Transmitters, control valves, and analytical devices
- Master 300 System Expansion: I/O extension, signal upgrade, and system retrofits
- Remote Field Device Integration: HART‑enabled instrumentation in distributed locations
- Precision Control Loops: Flow, pressure, temperature, and level control applications
