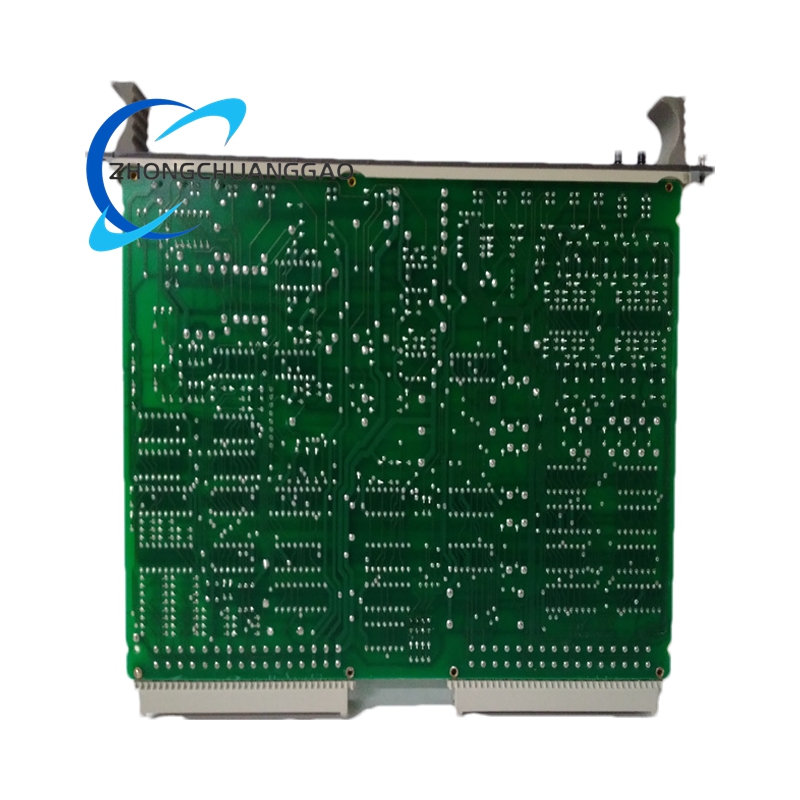

ABB CSA464AE HIEE400106R0001 Intelligent Interface Module

• Resolution: 12-16 bits (ADC/DAC for analog channels)
• Accuracy: ±0.1% FS (typical for analog channels)
• Isolation Voltage: ≥1500 V AC (between channels and bus)
• Response Time:
  • Analog signals: ≤100 ms
  • Digital signals: ≤10 ms
• Operating Temperature: -20°C to +60°C (industrial grade)
• Storage Temperature: -40°C to +85°C
• Humidity: 5%-95% RH (non-condensing)
• Protection Class: IP20 (standard rack-mounted)
• Power Supply: 24 V DC ±10% (supplied by system rack or external source)
• Power Consumption: ~5 W (depending on configuration)
• Mechanical Dimensions: 19-inch rack-mountable, 3U height (~133 mm)
• Certifications: CE, UL, cUL, GOST, ATEX (optional explosion-proof certification)

Functional Characteristics

• Protocol Conversion: Supports interoperability between Modbus, Profibus, Foundation Fieldbus, and other industrial protocols.
• Signal Conversion: Enables bidirectional conversion between analog (4-20 mA/0-10 V) and digital (24 V DC) signals.
• Redundancy Support: Configurable for redundant operation when paired with ABB redundancy controllers.
• Electrical Isolation: Channel-to-channel and channel-to-bus isolation prevents signal interference.
• Protection Mechanisms: Overvoltage, overcurrent, and reverse-polarity protection.
• Real-Time Monitoring: Tracks module status (e.g., communication errors, signal limits) and reports faults via LED indicators or system software.
• Hot-Swappable: Allows quick replacement or expansion without system downtime.

Application Scenarios

• Legacy System Integration: Connects older Symphony Melody systems to modern 800xA platforms.
• Third-Party Device Integration: Links PLCs, sensors, and actuators from different vendors to ABB control systems.
• Remote I/O Expansion: Reduces wiring costs by extending I/O stations via fieldbus networks (e.g., Profibus-DP).
• Safety Systems: Acts as a signal isolation and conversion module between safety instrumented systems (SIS) and basic process control systems (BPCS).
• Process Control: Monitors and regulates industrial processes in chemical, oil, gas, and power generation sectors.
• Mechanical Control: Manages robotics, CNC machines, and other automated equipment.
• Building Automation: Controls HVAC, lighting, and security systems in commercial facilities.
• Transportation: Manages traffic signals, rail signaling, and port automation systems.

Key Advantages

• High Reliability: Designed for harsh industrial environments with vibration, temperature extremes, and electromagnetic interference.
• Protocol Flexibility: Adapts to diverse communication standards, simplifying cross-vendor integration.
• Cost-Effective: Reduces system upgrade costs by enabling compatibility between legacy and modern equipment.
• Ease of Maintenance: Hot-swappable design and remote diagnostics minimize downtime.
• Scalability: Supports modular expansion to meet evolving automation needs.

Compatibility

• Seamlessly integrates with ABB’s AC800M, Symphony Plus, and Advant Controller systems.
• Works with third-party devices via standard industrial protocols (e.g., Modbus, Profibus).

Configuration and Diagnostics

• Software Tools: ABB Control Builder M, Profibus Configurator, and Modbus Poll (third-party).
• Diagnostics: ABB System 800xA Diagnostic Viewer and Symphony Plus Engineer for remote monitoring and troubleshooting.
• Documentation: Refer to ABB’s CSA464AE Interface Module User Guide (Document ID: HIEE400106R1-600).
