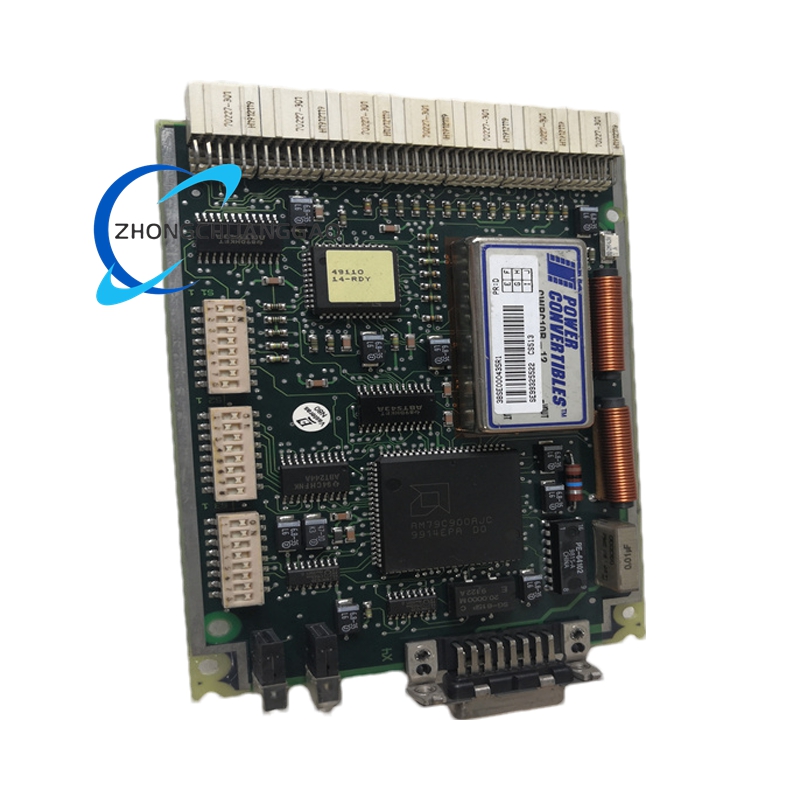

Product Short Description
Technical Specifications
Input Voltage: 24 V DC ±10 %
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity Range: 5 % – 95 % non-condensing
Power Consumption: 6 W typical
Isolation Voltage: 1 500 V AC
Dimensions: 110 mm × 80 mm × 35 mm
Weight: 0.4 kg
Protection Class: IP20
Installation: DIN rail
Description
Communication & I/O
Supported Protocols: MasterBus 300, Modbus RTU, Profibus DP, Ethernet/IP, Modbus TCP
Data Transfer Rate: up to 1.5 Mbps
Resolution: 12-bit
Sampling Rate: 50 kHz
Output Voltage: 0–10 V DC
Output Current: 0–20 mA
Supported Protocols: MasterBus 300, Modbus RTU, Profibus DP, Ethernet/IP, Modbus TCP
Data Transfer Rate: up to 1.5 Mbps
Resolution: 12-bit
Sampling Rate: 50 kHz
Output Voltage: 0–10 V DC
Output Current: 0–20 mA
Functional Highlights
High-speed dual-channel data exchange with automatic baud-rate detection
Galvanic isolation for noise immunity
Built-in diagnostic LEDs for real-time status monitoring
Field-upgradable firmware for future-proof integration
High-speed dual-channel data exchange with automatic baud-rate detection
Galvanic isolation for noise immunity
Built-in diagnostic LEDs for real-time status monitoring
Field-upgradable firmware for future-proof integration
Application Scenarios
Power generation – turbine-to-DCS communication
Oil & gas refineries – process control and safety system integration
Water treatment – distributed control of pumps and valves
Chemical processing – robust fieldbus communication for critical loops
Automotive assembly – real-time robot and conveyor management
Pharmaceutical production – precise mixing, stirring, and packaging control
Power generation – turbine-to-DCS communication
Oil & gas refineries – process control and safety system integration
Water treatment – distributed control of pumps and valves
Chemical processing – robust fieldbus communication for critical loops
Automotive assembly – real-time robot and conveyor management
Pharmaceutical production – precise mixing, stirring, and packaging control
