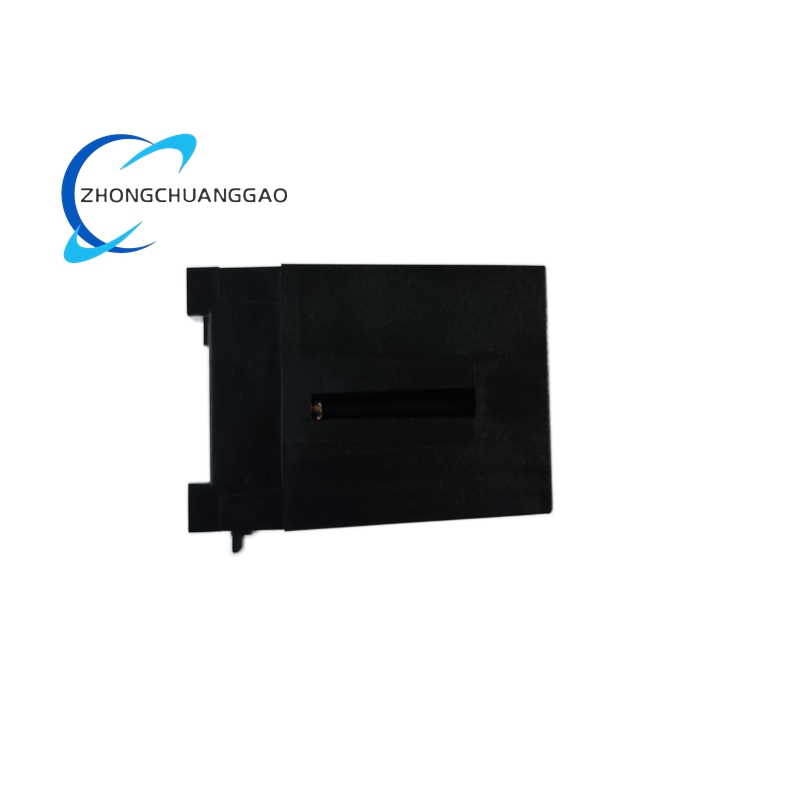

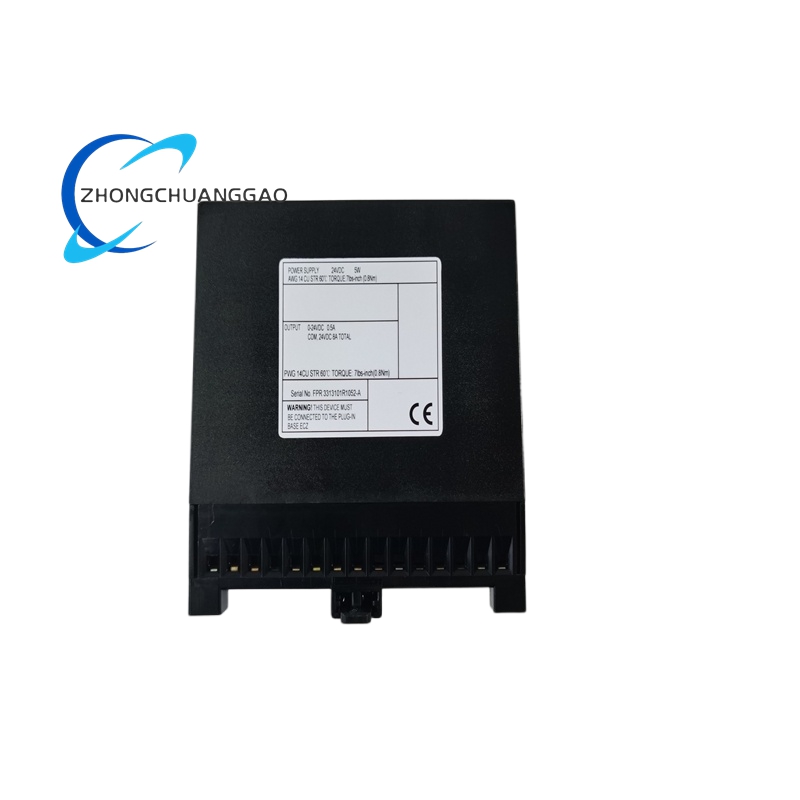

ABB CS31ICSO16N1 Procontic CS31 16‑Channel Digital Output Remote Module

Description

Technical Specifications

Output Configuration

• Number of Outputs: 16 channels, single‑group configuration
• Output Type: 24 V DC sourcing transistor outputs
• Rated Voltage: 24 V DC (18–30 V DC operating range)
• Per‑Channel Current: 0.5 A continuous per output
• Total Module Current: 8 A maximum for all channels combined
• Leakage Current (Off‑State): < 0.5 mA per channel
• Switching Frequency:
  • Resistive loads: Configurable (on request)
  • Inductive loads: Max. 0.5 Hz
  • Lamp loads: Max. 11 Hz (5 W max. per lamp)

Isolation & Protection

• Channel‑to‑Channel Isolation: 500 V AC for 1 minute
• Field‑to‑Logic Isolation: 1500 V AC for 1 minute
• Overload Protection: Current‑limiting with automatic reactivation after fault clearance
• Short‑Circuit Protection: Short‑circuit proof with overload detection (I > 0.7 A) after 100 ms
• Inductive Load Protection: Integrated varistors for demagnetization during switching
• Reverse Polarity Protection: Built‑in protection against incorrect wiring

Communication & Power

• Bus Interface: CS31 RS‑485 twisted‑pair bus (decentralized communication)
• Module Address: Configurable via DIP switches for bus identification
• Supply Voltage (UP): 24 V DC (18–30 V DC)
• Power Consumption: 50 mA typical at 24 V DC (unloaded outputs)
• Max. Power Dissipation: 6 W (outputs unloaded)
• Fuse Rating: 10 A fast‑blow fuse recommended for UP supply

Physical & Environmental

• Mounting: DIN‑rail mountable (35 mm standard)
• Dimensions: Compact industrial form factor (approx. 110 mm × 75 mm × 55 mm)
• Weight: Approx. 0.3 kg
• Operating Temperature: 0 °C to +55 °C (horizontal); 0 °C to +40 °C (vertical)
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5–95% RH (non‑condensing)
• Vibration Resistance: Compliant with IEC 60068‑2‑6
• Shock Resistance: Compliant with IEC 60068‑2‑27

Indicators

• Channel Status: 1 yellow LED per output (ON = active high state)
• Module Status: Power and bus communication LEDs for system health monitoring

Certifications

• CE, UL, cULus, CSA
• Compliance: IEC 61010‑1, IEC 61000‑6‑2/6‑3 (EMC), EN 61131‑2

Functional Features

1. High‑Density Distributed Output

• 16‑Channel Design: Maximizes I/O density in minimal cabinet space, ideal for compact control panels
• Decentralized Architecture: Mounts directly near field actuators, reducing long cable runs and signal interference
• Plug‑and‑Play Installation: Easy DIN‑rail mounting and tool‑free wiring for fast commissioning

2. Robust Isolation & Protection

• Dual‑Level Isolation: Protects control logic from field‑side voltage transients and ground loops
• Comprehensive Fault Protection: Prevents damage to the module and connected devices from overloads, short circuits, and inductive kickback
• Reliable Transistor Outputs: Delivers consistent switching performance for industrial loads with long service life

3. Advanced Diagnostics & Monitoring

• Per‑Channel LED Indicators: Provides real‑time visual status of each output for quick troubleshooting
• Module‑Level Diagnostics: Monitors power supply, bus communication, and internal faults
• Centralized System Monitoring: Integrates with CS31 central unit for full system‑wide diagnostics and alarm reporting

4. Flexible Communication & Configuration

• CS31 Bus Compatibility: Seamlessly integrates with Procontic CS31 central units (07 KR 91, 07 KT 92/93, 07 KR 31)
• Configurable Addressing: DIP switch‑based address setting for easy bus integration
• No Programming Required: Operates with standard CS31 system configuration, no custom firmware needed

5. Industrial‑Grade Durability

• Wide Temperature Range: Operates reliably in demanding industrial environments
• Vibration/Shock Resistance: Withstands mechanical stress in heavy machinery and plant environments
• Long‑Term Reliability: Designed for continuous operation with minimal maintenance requirements

Application Scenarios

1. Manufacturing & Discrete Automation

• Machine Tools: Controls solenoid valves, coolant pumps, and tool changers in CNC machines, lathes, and milling equipment
• Packaging Machinery: Drives sealing jaws, conveyors, and labeling actuators in filling, wrapping, and palletizing lines
• Material Handling: Operates conveyor motors, diverters, and pneumatic actuators in warehouse and logistics systems
• Assembly Lines: Controls pneumatic cylinders, clamps, and positioners in automotive and electronics assembly

2. Process Industries

• Food & Beverage: Manages valve actuators, mixers, and filling nozzles in hygienic processing and bottling lines
• Pharmaceuticals: Controls dosing pumps, filter valves, and cleanroom equipment in regulated production environments
• Water & Wastewater: Drives pump starters, valve actuators, and level control devices in treatment plants
• Chemical Processing: Operates solenoid valves and contactors for fluid handling and reactor control

3. Building & Infrastructure

• HVAC Systems: Controls dampers, fan motors, and heating elements in commercial building automation
• Pumping Stations: Manages pump contactors and valve actuators for water distribution networks
• Energy Management: Controls circuit breakers, contactors, and power distribution components in industrial facilities

4. Specialized Industrial Applications

• Mining & Quarrying: Drives conveyor systems, crushers, and material handling equipment in rugged mining operations
• Marine & Offshore: Controls valve actuators and pump motors on ships and offshore platforms
• Textile & Printing: Operates thread tensioners, cutters, and registration actuators in textile machinery and printing presses
