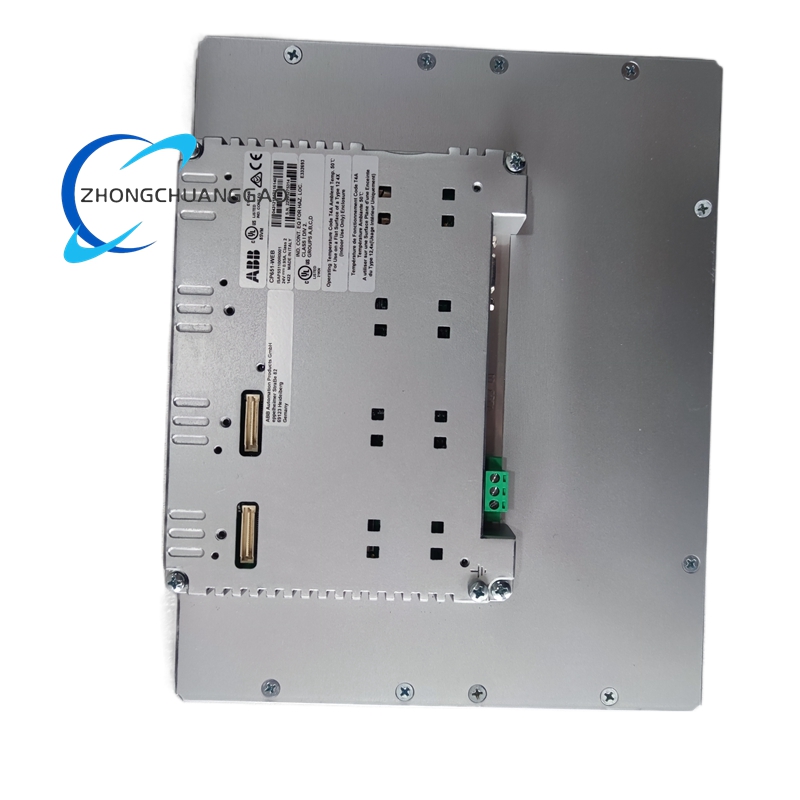

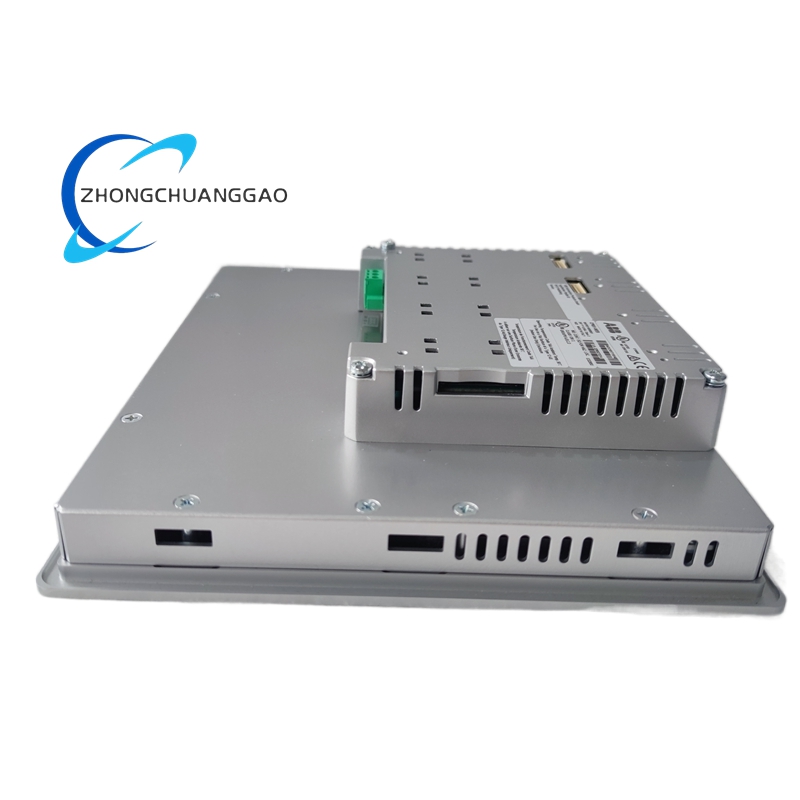

ABB CP651-WEB Industrial Web-Enabled Touchscreen Control Panel

Description

Technical Specifications

Display & Touchscreen

• Screen Size: 10.4‑inch (4:3 aspect ratio) TFT color displayABB
• Resolution: 800 × 600 pixelsABB
• Color Depth: 65,536 (64K) colorsABB
• Brightness: 300 cd/m² (LED backlight)
• Touch Technology: 4‑wire resistive touchscreen
• Backlight Service Life: 40,000 hours

Memory & Storage

• User Program Memory: 256 MB (DDR RAM)
• User Data Storage: 256 MB Flash DiskABB
• External Storage: 1 × SD card slot (for data logging, firmware updates, and project backup)ABB
• Expansion: 2 × expansion slots for future I/O or communication modulesABB

Communication Interfaces

• Ethernet: 2 × 10/100 Mbit/s ports with integrated switch; supports bridge mode configuration
• Serial: 1 × configurable RS‑232/RS‑422/RS‑485 port (DB9 female)
• USB: 2 × USB 2.0 Host ports (for peripherals, data transfer, and software updates)ABB
• Web Server: Integrated microbrowser V2.3 for web‑based visualization and controlABB
• Protocol Support: Modbus TCP/IP, HTTP/HTTPS, and compatibility with ABB AC500 V3 web services

Power Supply

• Input Voltage: 24 V DC (18–30 V DC operating range)
• Power Consumption: < 15 W (typical)

Environmental & Mechanical

• Front Protection: IP66 (IEC 60529) – dust‑tight and resistant to high‑pressure water jetsABB
• Housing Protection: IP20 (IEC 60529)ABB
• Operating Temperature: 0 °C to +50 °CABB
• Storage Temperature: -20 °C to +70 °CABB
• Relative Humidity: 5–95% RH (non‑condensing)
• Vibration Resistance: IEC 60068‑2‑6 compliant
• Shock Resistance: IEC 60068‑2‑27 compliant
• Dimensions: 232 mm (length) × standard panel cutout for CP600 series
• Weight: Approx. 1 kg
• Enclosure Material: Front and rear housing in aluminum; front foil in black, neutral design

Security

• User Authentication: 8‑level password protection for secure access controlABB
• Web Security: Supports secure HTTPS connections for encrypted remote access

Certifications

• CE, UL, cULus, CSA
• Compliance: IEC 61010‑1, IEC 61000‑6‑2/6‑3 (EMC)

Functional Features

1. Web‑Enabled Remote Access

• Integrated Web Server: Hosts dynamic web pages for full remote monitoring and control via any standard web browser (Chrome, Firefox, Edge) without dedicated HMI software.
• Dual Operation: Runs local PB610‑based HMI applications in parallel with web visualization, supporting both on‑site and remote operation simultaneously.
• Secure Remote Management: Enables secure troubleshooting, parameter adjustment, and alarm acknowledgment from off‑site locations, reducing maintenance travel.

2. High‑Performance Local HMI

• Intuitive Touch Operation: Responsive 4‑wire resistive touchscreen for accurate input in industrial conditions, supporting multi‑touch gestures for navigation.
• Rich Visualization: 64K color display with 800×600 resolution delivers clear process graphics, trend charts, alarm lists, and operational data.
• PB610 Compatibility: Fully programmable with ABB’s PB610 Panel Builder 600 (part of Automation Builder), offering drag‑and‑drop design, pre‑built widgets, and seamless integration with ABB PLCs (AC500, AC700).
• Data Logging: Stores process data, alarms, and events to internal Flash or SD card, supporting historical analysis and compliance reporting.

3. Robust Industrial Design

• IP66 Front Seal: Withstands dust, moisture, and high‑pressure washdown, suitable for outdoor or harsh indoor industrial environmentsABB.
• Wide Temperature Range: Operates reliably in 0–50 °C environments, adapting to factory floors, warehouses, and field installations.
• Durable Construction: Aluminum housing and long‑life LED backlight ensure continuous operation in high‑vibration and heavy‑usage scenarios.
• Flexible Mounting: Fits standard CP600 series panel cutouts, enabling easy replacement or upgrade of legacy HMI panels.

4. Versatile Connectivity & Expansion

• Dual Ethernet Ports: Supports network separation, redundant connections, or integration with multiple control systems; bridge mode simplifies network architecture.
• Multi‑Protocol Serial Port: Configurable RS‑232/422/485 for connecting to legacy devices, drives, or instruments without Ethernet.
• USB & SD Card: Facilitates fast project uploads/downloads, firmware updates, and peripheral connections (e.g., barcode scanners, printers).
• Expansion Slots: Allows future upgrades with additional I/O modules or communication cards to adapt to changing system requirementsABB.

5. Advanced Control & Safety

• Multi‑Level Security: 8 user access levels prevent unauthorized parameter changes or system modifications, ensuring operational safetyABB.
• Alarm Management: Centralized alarm handling with visual and audible alerts, alarm history logging, and remote alarm notification via web.
• Real‑Time Performance: Fast screen refresh and low latency for precise control of dynamic processes.

Application Scenarios

1. Manufacturing & Discrete Automation

• Machine Tools: CNC machines, lathes, milling machines, and grinding equipment for local operation and remote production monitoring.
• Packaging Machinery: Filling, sealing, labeling, and palletizing lines with web‑based access for line managers and maintenance teams.
• Plastics Processing: Injection molding, extrusion, and blow molding machines for temperature, pressure, and cycle control.
• Textile & Printing: Looms, dyeing machines, and printing presses for process visualization and quality control.

2. Process Industries

• Food & Beverage: Pasteurization, cooking, drying, and bottling lines with strict hygiene and washdown requirements (IP66 front).
• Pharmaceuticals: Cleanroom equipment, mixing tanks, and packaging lines supporting regulatory compliance and data logging.
• Water & Wastewater: Pump stations, filtration systems, and chemical dosing for remote monitoring of treatment processes.
• Chemical & Petrochemical: Reactor control, storage tank monitoring, and material handling in hazardous and non‑hazardous areas.

3. Building & Infrastructure

• HVAC Systems: Large‑scale heating, ventilation, and air conditioning plants for commercial buildings, hospitals, and data centers.
• Pumping Stations: Water distribution and wastewater lift stations with remote control and alarm notification.
• Energy Management: Solar inverter stations, wind turbine auxiliaries, and power distribution monitoring.

4. Marine & Offshore

• Shipboard Automation: Engine control, cargo handling, and HVAC systems on commercial vessels and offshore support vessels.
• Offshore Platforms: Process control and utility systems on oil and gas platforms, with remote access from onshore control centers.

5. Specialized Industrial Applications

• Mining & Quarrying: Conveyor systems, crushers, and material processing equipment in rugged, remote locations.
• Paper & Pulp: Digesters, dryers, and coating lines with high dust and moisture exposure.
• Automotive Production: Assembly lines, paint shops, and material handling systems supporting Industry 4.0 remote monitoring.
