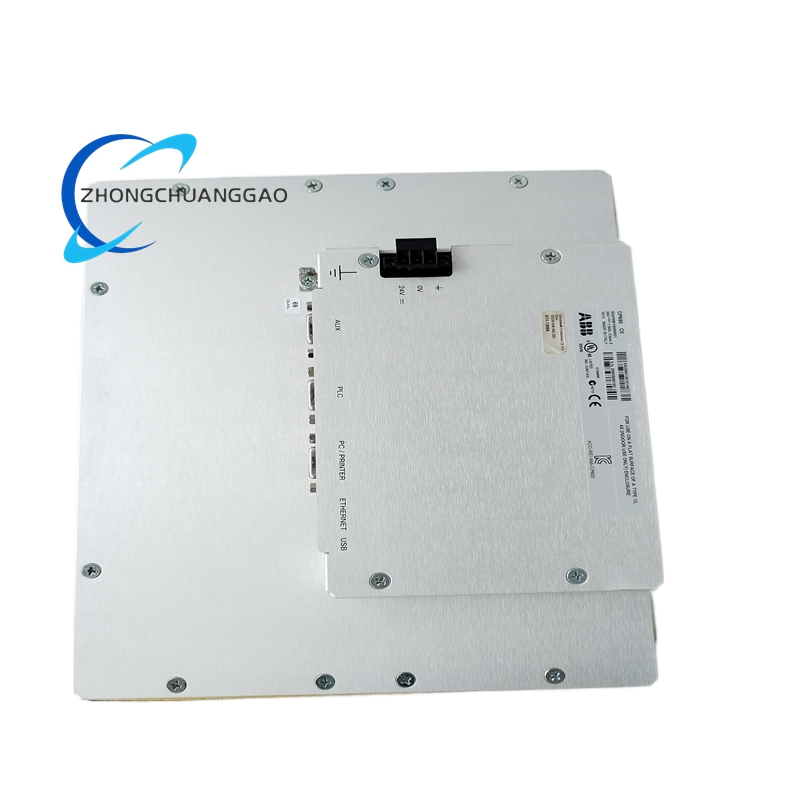

ABB CP650 1SAP550100R0001 Industrial Control Panel

Description

Technical Specifications

Display & Visual Performance

• Screen Type: 10.4-inch TFT color touchscreen (4:3 aspect ratio)ABB
• Resolution: 800 × 600 pixelsABB
• Color Depth: 64K colorsABB
• Touch Technology: Resistive touch for reliable operation with gloves or wet conditions

Processor & Memory

• Processor: High-performance industrial-grade processor for fast HMI rendering and data processing
• User Program Memory: 256 MB Flash memory for storing HMI applications and configurationsABB
• User Data Memory: 128 MB Flash disk for logging process data, trends, and alarmsABB
• Real-Time Clock (RTC): Hardware RTC with rechargeable 3V 50mAh lithium battery backup (non-user-replaceable)

Communication Interfaces

• Ethernet: 1 × 10/100 Mbit/s Ethernet port for high-speed network connectivityABB
• Serial Ports: 2 × RS232/422/485 configurable serial ports for legacy device communicationABB
• USB: 1 × USB 2.0 Host port for data transfer, configuration backup, and peripheral connectionABB
• Auxiliary Port: 1 × Aux port for extended connectivity optionsABB
• Supported Protocols: Modbus RTU/TCP, PROFIBUS DP, and ABB proprietary protocols for seamless system integration

Electrical & Power Specifications

• Supply Voltage: 24 V DC (18–30 V DC wide input range)
• Power Consumption: Approx. 250 mA (0.75 A peak)
• Isolation: Full galvanic isolation between communication circuits and power supply
• Reverse Polarity Protection: Integrated protection against incorrect power connection
• Fuse Protection: Automatic internal fuse for overcurrent protection

Physical & Environmental Specifications

• Dimensions: 10.86” (W) × 8.70” (H) × 1.65” (D) (276 × 221 × 42 mm)
• Weight: Approx. 2 kg
• Mounting: Front-panel flush mounting for control cabinets
• Ingress Protection: Front IP66 (dust-tight, protected against powerful water jets); Housing IP20ABB
• Operating Temperature: 0°C to +50°C (vertical installation)
• Storage Temperature: -20°C to +70°C
• Relative Humidity: 5% to 95% non-condensing
• Vibration/Shock Resistance: Compliant with IEC 60068-2-14 industrial standards
• Pollution Degree: 2 (IEC 61131-2)

Certifications & Compliance

• Safety Certifications: CE, UL, CSA
• EMC Compliance: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emission)
• RoHS/WEEE: EU RoHS 2011/65/EU; WEEE Directive 2012/19/EU compliant

Functional Features

• Intuitive Touch Operation: Resistive touchscreen supports reliable input with gloves, ensuring usability in industrial environments.
• High-Resolution Display: 800×600 resolution and 64K colors deliver sharp visuals for complex process diagrams and data trends.
• PB610 Runtime Support: Preloaded with PB610 Panel Builder 600 runtime license for custom HMI application developmentABB.
• Multi-Protocol Communication: Integrates Ethernet, serial, and USB interfaces with support for Modbus, PROFIBUS, and ABB protocols.
• Ample Memory Capacity: 256 MB program memory and 128 MB data memory for extensive HMI projects and data loggingABB.
• Real-Time Data Handling: Supports real-time trend acquisition, alarm management, and data logging for process analysis.
• Multi-Level Security: Password protection with 8 configurable user levels to restrict access to critical functionsABB.
• Industrial Robustness: IP66 front protection and wide temperature tolerance ensure stable operation in harsh conditionsABB.
• Easy Configuration: User-friendly setup via USB or Ethernet; supports remote configuration and firmware updates.
• Battery-Backed RTC: Maintains accurate timekeeping during power outages for reliable timestamping of events and alarms.
• Seamless Integration: Direct compatibility with ABB AC500 PLCs, AC drives, and third-party automation systems.
• Compact Design: Space-saving flush-mount form factor ideal for dense control panel installations.

Application Scenarios

• Factory Automation: Monitors and controls assembly lines, packaging machines, and material handling systems; provides real-time production data and fault alerts.
• Process Control: Manages continuous manufacturing processes in chemical, pharmaceutical, and food processing industries; ensures precise parameter control and compliance.
• Building Automation: Integrates with HVAC, lighting, and security systems for centralized building management and energy efficiency optimization.
• Water & Wastewater Treatment: Controls pump stations, filtration systems, and treatment processes; enables remote monitoring and data logging.
• Power Generation & Distribution: Operates as a local HMI for power plant equipment, switchgear, and renewable energy systems (solar, wind).
• Oil & Gas Industry: Controls pumps, compressors, and processing equipment in onshore/offshore facilities; operates reliably in hazardous and remote locations.
• Mining & Metals: Manages mineral processing machinery, conveyors, and material handling systems in rugged mining environments.
• Marine & Offshore: Serves as a control interface for shipboard power systems, propulsion equipment, and auxiliary machinery.
• Packaging & Printing: Controls packaging lines, printing presses, and labeling machines; ensures high-speed, accurate operation.
• Material Handling: Manages conveyor systems, automated storage, and retrieval systems (AS/RS) for efficient logistics operations.
