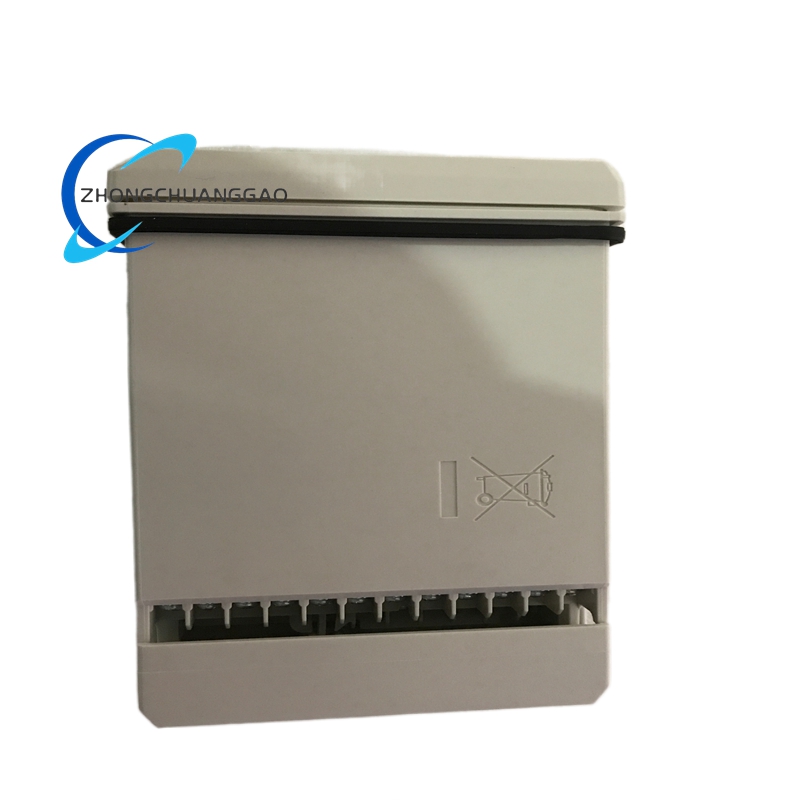

ABB ControlMaster CM10200 Universal Process Controller

Description

Technical Specifications

Functional Features

1. Universal Process Input Compatibility
   • Accepts a wide range of process signals, including thermocouples (B, E, J, K, R, S), RTDs (Pt100/Pt1000), voltage (0–10 V), and current (0–20 mA, 4–20 mA) inputs.
   • Auto-ranging and auto-scaling capabilities eliminate manual configuration for different signal types, reducing setup time.
   • Supports programmable digital filtering (0–60 seconds) to reduce noise and improve measurement stability in noisy environments.
2. Advanced Control Algorithms
   • Implements high-precision PID control with adaptive tuning, cascade, feed-forward, and predictive control strategies for optimal process stability.
   • Provides flexible control modes including on/off, time-proportioning, analog PID, and dual-output control for diverse process requirements.
   • Enables mathematical and logical operations (e.g., calculation, comparison, sequencing) to support complex process logic without external controllers.
3. Flexible Output Configuration
   • Delivers dual analog outputs (4–20 mA / 0–10 V) for control of valves, variable frequency drives, and other actuators.
   • Features four relay outputs (5 A rating) for high-power device control (pumps, fans, alarms) with configurable NO/NC contacts via jumper settings.
   • Supports combination of analog and relay outputs for multi-variable control and alarm management in single unit.
4. Seamless Communication & Integration
   • Equipped with a standard IrDA service port (up to 115 kBaund, 1 m range) for fast configuration upload/download and firmware updates.
   • Optional communication modules support Ethernet (TCP/IP, Modbus TCP), Modbus RTU, and PROFIBUS DP for integration with PLCs, DCS, SCADA systems, and HMIs.
   • Built-in web server (Ethernet option) allows remote monitoring and basic control via standard web browsers.
5. Intuitive User Interface & Diagnostics
   • Full-color TFT display provides clear, real-time visualization of process variables, setpoints, alarms, and diagnostic status without scrolling.
   • Multi-language menu navigation with pop-up prompts simplifies operation and configuration by field personnel.
   • Comprehensive self-diagnostics monitor module health, communication status, and input/output faults, with visual LED indicators for quick troubleshooting.
   • Four user-selectable access levels (Read Only, Basic, Advanced, Service) ensure secure configuration and prevent unauthorized changes.
6. Robust Industrial Reliability
   • Designed to meet IP66/NEMA 4X protection ratings, offering dust-tight enclosure and resistance to water jets, making it suitable for harsh environments.
   • Operates reliably in temperatures from 0 °C to +55 °C and humidity up to 95% non-condensing, ensuring long-term performance.
   • Built to withstand industrial vibration and electrical interference, complying with IEC 61326 EMC standards.
   • Supports firmware upgrades and configuration backups via IrDA, ensuring easy maintenance and system scalability.

Application Scenarios

• HVAC & Building Automation
  • Temperature and humidity control in commercial buildings, data centers, and industrial facilities.
  • Boiler and chiller system optimization for energy efficiency and comfort control.
• Chemical & Petrochemical Processing
  • Reaction vessel temperature/pressure control, distillation column regulation, and blending system automation.
  • Corrosion-resistant design supports operation in chemically aggressive environments.
• Food & Beverage Production
  • Pasteurization, fermentation, and drying process control for consistent product quality.
  • Hygiene-compliant design suitable for clean-in-place (CIP) operations.
• Pharmaceutical Manufacturing
  • Precision temperature and pressure control for batch processing and sterile environments.
  • Data logging and audit trail support compliance with regulatory standards (cGMP).
• Power Generation & Utilities
  • Boiler drum level control, steam temperature regulation, and auxiliary system monitoring.
  • Remote monitoring capabilities for power plant efficiency and reliability.
• Water & Wastewater Treatment
  • pH control, flow regulation, and tank level management for water purification and wastewater discharge.
  • Durable IP66 rating withstands wet and corrosive treatment plant environments.
• Metals & Mining
  • Furnace temperature control, conveyor system regulation, and ore processing automation.
  • High vibration resistance supports operation in mining and metal smelting facilities.
• Oil & Gas Production
  • Pipeline pressure control, separator temperature regulation, and wellhead monitoring.
  • Explosion-proof ready design for safe operation in hazardous zones.

Key Advantages

• Universal Signal Support: Eliminates need for separate signal conditioners, reducing system complexity and cost.
• High Precision & Stability: ±0.5% accuracy and adaptive PID algorithms ensure tight process control.
• Space-Saving Design: 1/8 DIN form factor fits standard panel cutouts, ideal for space-constrained installations.
• Scalable Communication: Optional Ethernet/Modbus/PROFIBUS modules enable seamless integration into modern automation networks.
• Rugged Reliability: IP66/NEMA 4X rating and wide temperature operation ensure performance in harsh industrial settings.
• User-Friendly Operation: Intuitive color display and multi-language menus reduce training requirements for field staff.
• Low Maintenance: Front-panel configuration, remote diagnostics, and hot-swappable options minimize downtime.
