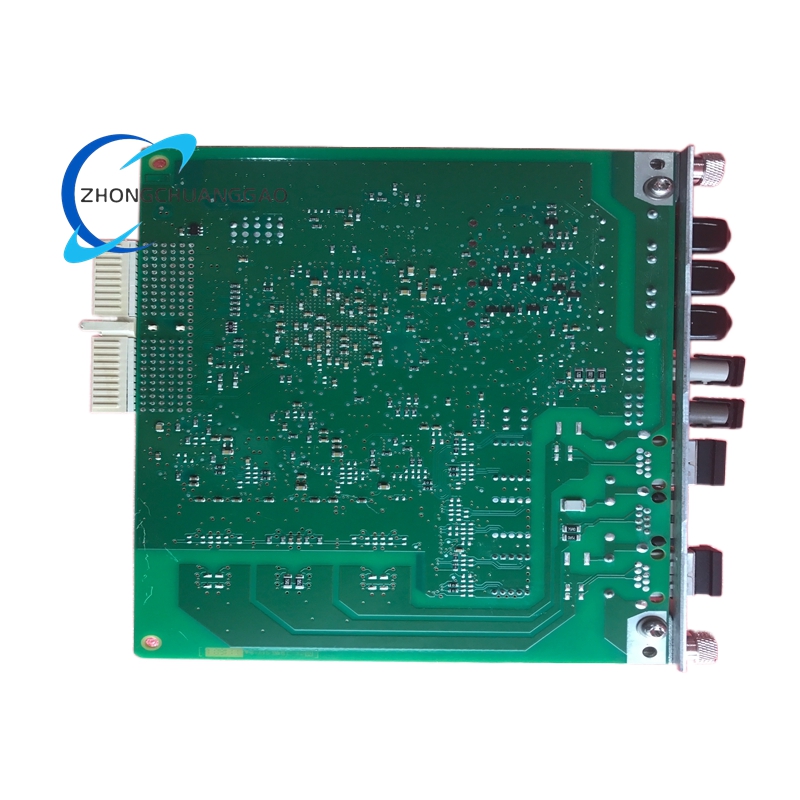

ABB COM0032 Multi-Protocol Communication Module

Description

Technical Specifications

• Product Type: Multi-Protocol Industrial Communication Module
• Integrated Interfaces:
  • Ethernet: 1 x RJ45 port, 10/100 Mbps auto-negotiation
  • RS485: 1 x serial interface, galvanically isolated
  • IRIG-B: 1 x precision time synchronization input
• Supported Protocols: Modbus TCP, Modbus RTU, IEC 61850, and other standard Ethernet/RS485 based protocols
• Power Supply: 24 V DC, with a tolerance range of -15% to +20%
• Power Consumption: Maximum 5 W
• Physical Dimensions: 100 mm x 50 mm x 30 mm
• Weight: Approximately 0.2 kg (200 grams)
• Operating Temperature: -25 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% – 95% RH (non-condensing)
• Isolation Voltage: Galvanic isolation (1500 V DC) between field and system circuits
• Protection Class: IP20 (EN 60529)
• Mounting: Standard 35 mm DIN rail mounting
• LED Indicators: Power, Run, Ethernet Status, RS485 Activity, IRIG-B Sync Status, Fault/Warning
• Certifications: CE, UL, CSA, IEC 61131-2, ATEX Zone 2
• Data Throughput: Supports up to 256 I/O points; high-speed cyclic and acyclic data exchange
• Clock Accuracy: IRIG-B time synchronization accuracy to sub-millisecond level

Key Features & Benefits

1. Triple Interface Integration
   • Combines 10/100 Mbps Ethernet, isolated RS485, and IRIG-B time synchronization in one module, reducing hardware complexity and cabinet space.
   • Enables simultaneous connectivity to IP-based network devices, serial field devices, and precision clock sources, creating a unified communication backbone.
   • Supports mixed-network architectures, facilitating easy integration of legacy serial devices and modern Ethernet-based systems.
2. High-Precision Time Synchronization
   • Features an IRIG-B interface for absolute, system-wide time synchronization, critical for sequence-of-events (SOE) logging, distributed control, and power system fault analysis.
   • Delivers sub-millisecond time accuracy across all connected devices, ensuring precise event time-stamping and data correlation.
   • Eliminates time drift in distributed systems, essential for regulatory compliance and accurate diagnostics in power and process industries.
3. Robust Industrial Performance
   • Built with full galvanic isolation (1500V DC) to protect against ground loops, electrical noise, and voltage transients common in industrial sites.
   • Operates reliably over a wide temperature range (-25 °C to +70 °C) and withstands high levels of vibration and shock.
   • Certified for use in ATEX Zone 2 hazardous areas, ensuring safe deployment in oil, gas, and chemical environments.
4. Advanced Protocol Support
   • Supports a comprehensive suite of standard industrial protocols, ensuring seamless interoperability with a vast ecosystem of ABB and third-party devices.
   • Implements efficient data handling for both cyclic (real-time process data) and acyclic (configuration/diagnostic) communication.
   • Optimized for high-speed, deterministic communication required for closed-loop control and critical process monitoring.
5. Comprehensive Diagnostics & Status Monitoring
   • Multi-color LED indicators provide real-time visual feedback on communication status, synchronization lock, and fault conditions for immediate on-site troubleshooting.
   • Built-in diagnostic functions continuously monitor link quality, signal integrity, and module health.
   • Supports remote diagnostic access via the Ethernet port, enabling predictive maintenance and minimizing system downtime.
6. Flexible and Secure Deployment
   • Features a compact, modular design for easy installation, configuration, and system expansion.
   • Offers configurable communication parameters (baud rate, IP address, time settings) via software tools.
   • Includes advanced data security features to protect against unauthorized access and ensure the integrity of transmitted process data.

Application Scenarios

• Power Generation & Grid Automation
  • Integrates control systems with switchgear, protection relays, and smart meters in power substations.
  • Provides precise IRIG-B synchronization for accurate fault recording and grid stability control.
  • Enables reliable data acquisition for SCADA systems in thermal, hydro, and renewable power plants.
• Oil & Gas Industry
  • Facilitates communication between central PLCs and remote wellhead sensors, RTUs, and ESD systems.
  • Operates reliably in offshore platforms, refineries, and pipeline networks with hazardous area certification.
  • Ensures synchronized data logging for process optimization and safety compliance.
• Petrochemical & Chemical Processing
  • Connects distributed control systems (DCS) with field instruments, valves, and VFDs in complex process plants.
  • Supports high-speed, deterministic communication for critical reactor and distillation column control.
  • Provides accurate time stamping for event logs in safety instrumented systems (SIS).
• Metals & Mining
  • Manages data communication for crushing, grinding, and smelting processes in high-dust, high-vibration environments.
  • Synchronizes control actions across large-scale, geographically dispersed mineral processing operations.
  • Ensures reliable connectivity for heavy machinery automation and conveyor systems.
• Water & Wastewater Treatment
  • Links central control systems with pump stations, flow meters, and valve actuators across wide geographic areas.
  • Supports efficient SCADA integration for municipal water distribution and wastewater collection networks.
  • Provides precise timing for batch process control and regulatory reporting.
• Railway & Transportation Infrastructure
  • Used in signaling systems, station automation, and traction power control.
  • Ensures fail-safe communication and precise time synchronization for safety-critical railway operations.
  • Delivers reliable performance in outdoor and exposed transit environments.
