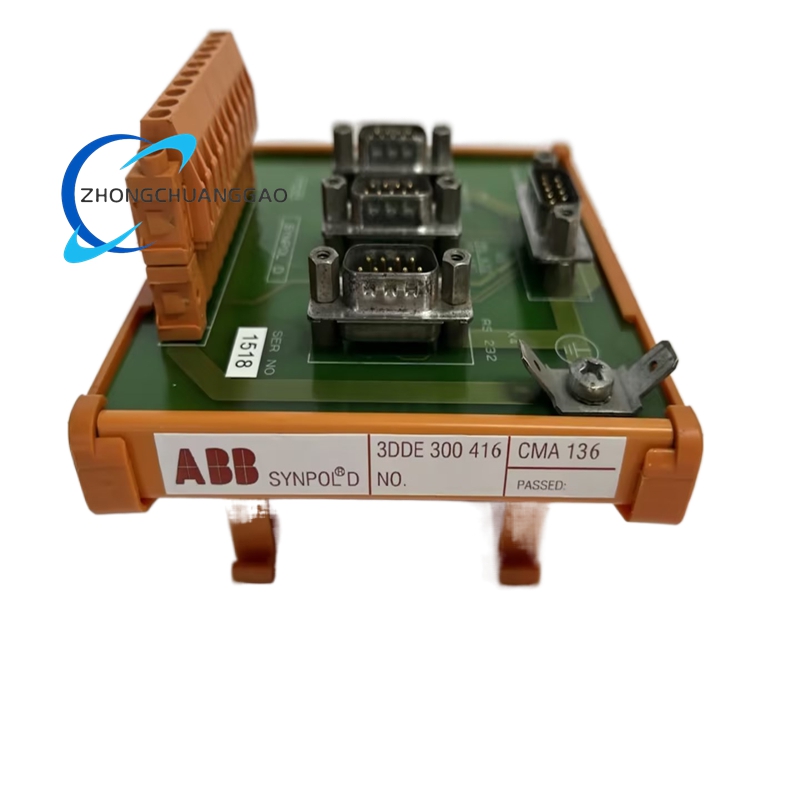

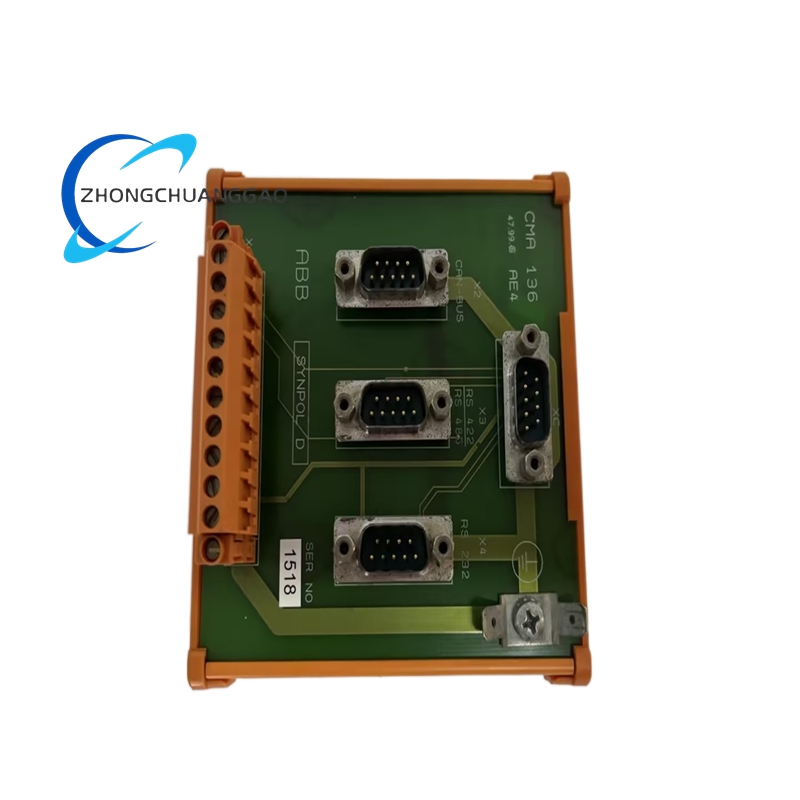

ABB CMA136 3DDE300416 Generator Relay Terminal Board

Description

Technical Specifications

Core Electrical & Relay Specifications

• Relay Configuration: 3 SPDT (Single Pole Double Throw) high-speed relay contacts
• Relay Contact Rating: Max. 10A current capacity; 230V AC operating voltage
• Input Channels: 32 universal analog input channels
• Supported Signal Types: Thermocouples (J, K, T, E, R, S, B, N), RTDs (Pt100, Pt1000), millivolt (mV), milliampere (mA), voltage (V), and potentiometer signals
• Resolution: 16-bit high-resolution analog-to-digital conversion
• Isolation Voltage: 1500 V AC galvanic isolation between input channels and power supply
• Measurement Accuracy: ±0.1% of full-scale measurement accuracy
• Sampling Rate: Maximum 10 samples per second per channel
• Response Time: Microsecond-level relay switching for rapid protection actuation

Power & Environmental Specifications

• Supply Voltage: 24 V DC / 230 V AC dual power support
• Current Consumption: ≤ 100 mA at 24 V DC
• Operating Temperature: -25 °C to +55 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g rms)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms half-sine)
• Enclosure Rating: IP20 (indoor cabinet installation)
• Material: Flame-retardant thermoplastic (UL 94 V-0)
• RoHS Compliance: Fully compliant with EU RoHS 2 directive (2011/65/EU)

Physical & Mechanical Specifications

• Dimensions: 110 mm (W) × 105 mm (H) × 70 mm (D)
• Net Weight: 0.18 kg
• Terminal Type: Industrial-grade screw terminals with high clamping force
• Mounting: DIN rail or direct panel mounting in control cabinets

Communication & Compatibility

• Communication Interfaces: RS-232, RS-485, CAN I/O, Ethernet (TCP/IP, UDP)
• Supported Protocols: Modbus RTU, Modbus TCP, ABB proprietary protocols
• Baud Rate: 1200–115200 bps configurable
• System Compatibility: ABB Synpol D, Advant OCS, 800xA DCS, AC800M control systems
• Configuration Tools: ABB Synpol D configuration software, Automation Builder

Compliance & Certifications

• Standards: IEC 61010-1, IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission)
• Certifications: CE, UL, cULus, CSA, marine type approvals (optional)

Functional Features

1. High-Speed Relay Protection & Switching

• 3 SPDT Relays: Provides three independent high-speed relay outputs for generator protection and control functions
• Fast Switching: Microsecond-level response time ensures rapid actuation for critical protection scenarios
• High Current Capacity: 10A contact rating handles heavy-duty control circuit requirements
• Contact Protection: Built-in surge suppression protects relay contacts from voltage spikes
• Fail-Safe Design: Relay contacts default to safe positions during power loss or system faults

2. Advanced Signal Acquisition & Conditioning

• 32 Universal Inputs: Accepts all standard industrial analog signals without hardware modification
• 16-Bit Resolution: Delivers exceptional measurement precision for generator parameters
• Galvanic Isolation: 1500 V AC isolation eliminates ground loops and electrical noise
• Signal Filtering: Built-in low-pass filtering provides clean, stable measurement data
• Auto-Calibration: Maintains measurement accuracy over extended operating periods

3. Robust Industrial Design & Reliability

• Dual Power Supply: Supports both 24 V DC and 230 V AC for flexible installation
• Wide Temperature Range: Operates reliably in extreme industrial environments
• Vibration & Shock Resistance: Withstands harsh conditions in power generation facilities
• Flame-Retardant Construction: UL 94 V-0 rated materials enhance safety
• Long Service Life: Industrial-grade components ensure high MTBF and minimal maintenance

4. Comprehensive Diagnostic Capabilities

• Real-Time Monitoring: Continuous monitoring of input signals, relay status, and communication
• Fault Detection: Identifies open circuits, short circuits, and signal out-of-range conditions
• LED Indicators: Visual status indicators for power, communication, and fault conditions
• Alarm Outputs: Configurable alarm relays for immediate fault notification
• Remote Diagnostics: Communication interfaces transmit detailed diagnostic data to control systems

5. Flexible System Integration

• Multi-Protocol Support: RS-232, RS-485, CAN I/O, and Ethernet for versatile connectivity
• ABB System Compatibility: Seamless integration with Synpol D, Advant OCS, and 800xA systems
• Modbus Compatibility: Supports Modbus RTU and TCP for third-party system integration
• Remote Configuration: Full parameter setup via communication interfaces
• Hot-Swappable Design: Allows module replacement without system shutdown

Application Scenarios

1. Power Generation Plants

• Thermal Power Plants: Provides generator differential protection and control in coal, gas, and oil-fired stations
• Hydroelectric Power Plants: Manages turbine generator protection and monitoring in dam installations
• Nuclear Power Plants: Ensures reliable generator control for reactor auxiliary systems
• Combined Cycle Power Plants: Integrates gas turbine and steam generator protection systems

2. Renewable Energy Generation

• Wind Turbines: Controls and protects generators in onshore and offshore wind farms
• Solar Thermal Systems: Manages steam generator control in concentrated solar power plants
• Biomass Power Plants: Provides generator protection for biomass-fired power facilities
• Geothermal Power Plants: Ensures stable operation of geothermal steam turbine generators

3. Industrial Backup Power Systems

• Data Centers: Controls emergency generator systems for critical IT infrastructure
• Hospitals: Manages standby generators for uninterrupted medical facility power
• Manufacturing Facilities: Protects backup power systems for continuous production
• Telecommunication Hubs: Ensures reliable generator operation for communication networks

4. Marine & Offshore Applications

• Shipboard Power Systems: Controls main and auxiliary generators in commercial vessels
• Offshore Platforms: Provides robust generator protection for oil and gas facilities
• FPSO Vessels: Manages power generation systems in offshore production units
• Port Facilities: Controls generator systems for port equipment and operations

5. Industrial Facilities & Utilities

• Oil Refineries: Protects generator systems for critical refining processes
• Chemical Plants: Ensures reliable backup power for chemical manufacturing
• Water Treatment Plants: Controls generators for water purification facilities
• Mining Operations: Manages power systems for underground and surface mining

6. Commercial & Infrastructure

• Airports: Controls emergency generators for airport operations
• Railway Systems: Protects backup power for signaling and electrification
• Commercial Buildings: Manages generators for large commercial facilities
• Sports Venues: Ensures uninterrupted power for large event venues
