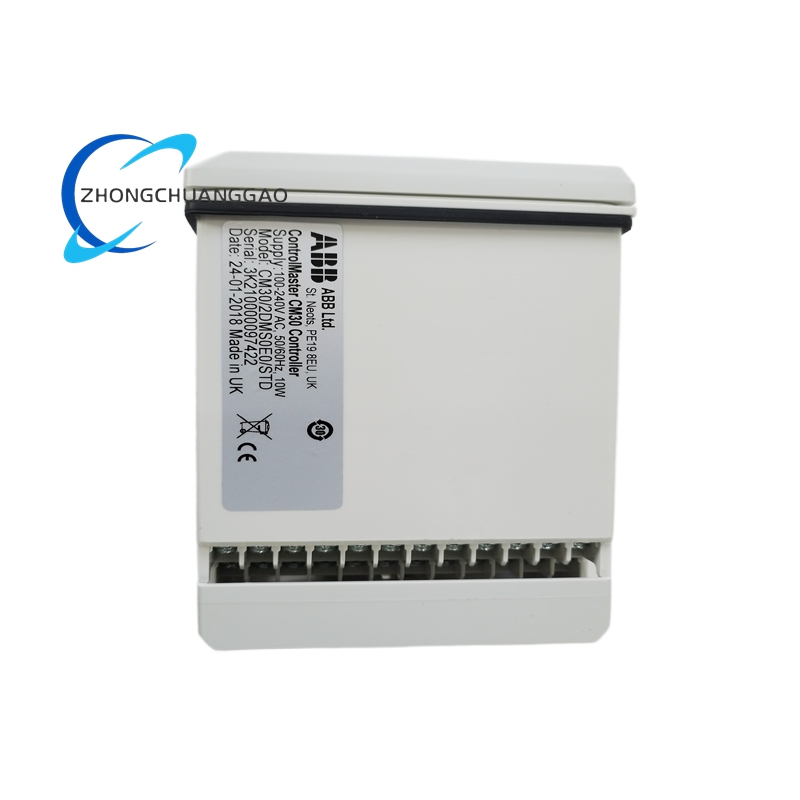

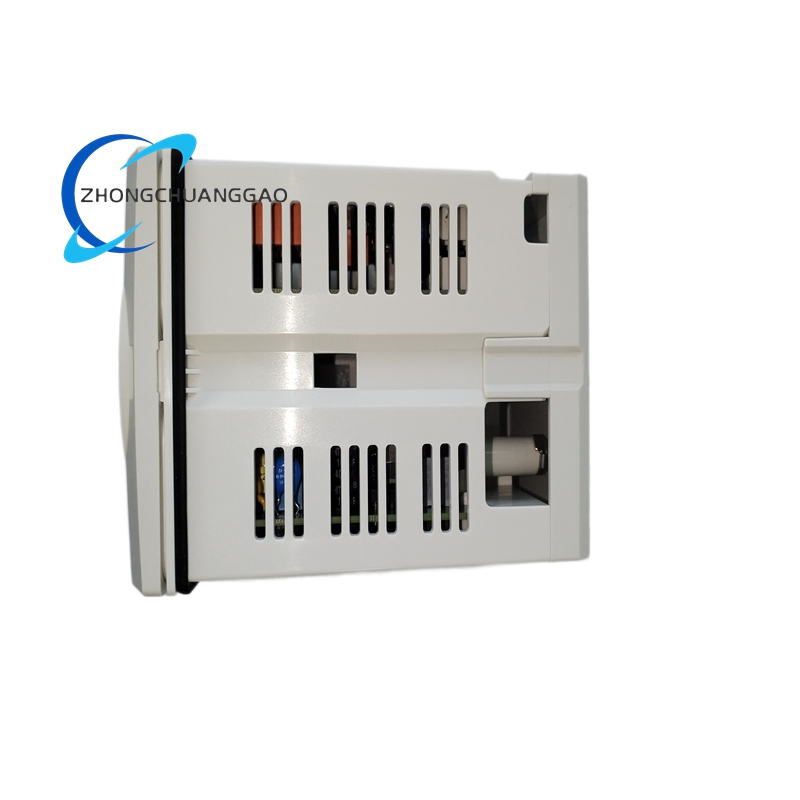

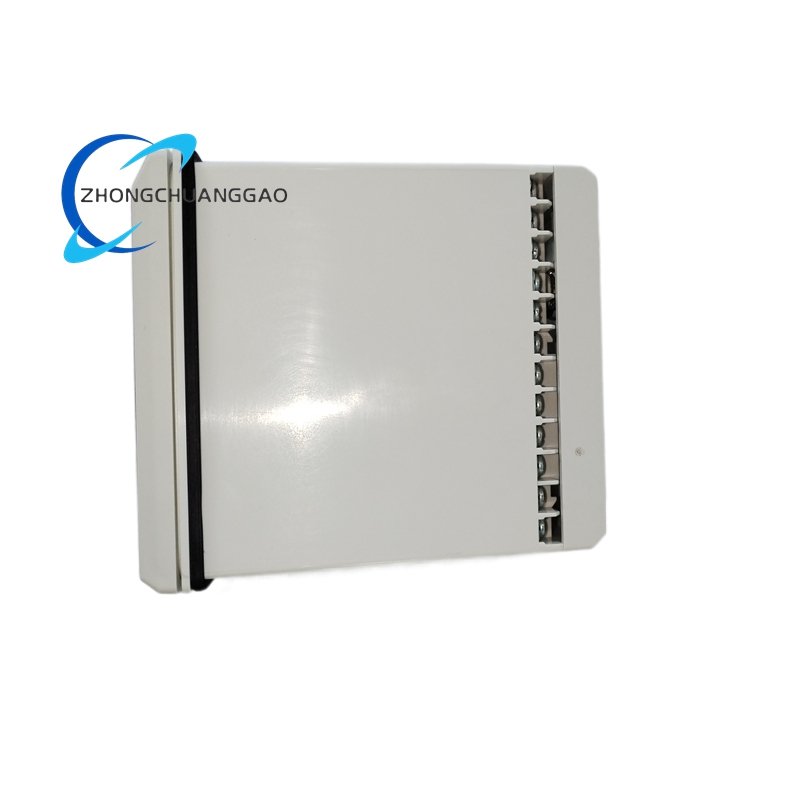

ABB CM302DMS0E0STD ControlMaster Universal Process Controller

Description

Technical Specifications

Core Control & I/O Configuration

• Control Type: Dual-loop PID process controller with adaptive, cascade, feed-forward, and ratio control capabilitiesABB
• Form Factor: 1/4 DIN panel mount (97 mm × 97 mm × 121 mm depth)
• Analog Inputs: 2 universal analog inputs supporting thermocouples (J, K, T, E, R, S, B, N), RTDs (Pt100, Pt1000), and 4–20 mA / 0–10 V DC signals
• Analog Outputs: 2 isolated analog outputs (4–20 mA / 0–10 V DC, configurable)
• Digital I/O: 2 configurable digital I/O channels (input: 24 V DC; output: open collector, 24 V DC, 100 mA max)
• Relay Outputs: 4 electromechanical relay outputs (SPDT, 250 V AC / 30 V DC, 5 A resistive load)
• Control Accuracy: ±0.1% of full scale for analog inputs; ±0.2% for analog outputs
• Sampling Rate: 100 ms per input channel (adjustable)
• Control Cycle: 100 ms (standard), configurable down to 20 ms for fast processes

Power & Electrical Specifications

• Supply Voltage: 90–264 V AC (50/60 Hz) or 10–36 V DC (optional)
• Power Consumption: 10 W maximum
• Isolation: 2500 V AC galvanic isolation between inputs, outputs, power supply, and communication ports
• Protection: Overvoltage, reverse polarity, short-circuit, and ESD protection on all interfaces
• Power Interruption Resilience: Maintains operation for interruptions up to 60 ms without process disruption

Physical & Environmental Specifications

• Dimensions: 97 mm (W) × 97 mm (H) × 121 mm (D) (behind panel)
• Net Weight: 0.5 kg (1.1 lb)
• Mounting: Panel mount with IP66/NEMA 4X front face protection; rear IP20 rating
• Operating Temperature: 0 °C to +55 °C (32 °F to 131 °F)
• Storage Temperature: -20 °C to +70 °C (-4 °F to 158 °F)
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g rms)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms half-sine)
• Material: Glass-filled polycarbonate (UL 94 V-0 flame retardant)
• RoHS Compliance: Fully compliant with EU RoHS 2 directive (2011/65/EU)

Communication & Compatibility

• Communication Interfaces: RS485 (MODBUS RTU) and Ethernet (MODBUS TCP) as standardABB
• Baud Rate: RS485: 1200–115200 bps; Ethernet: 10/100 Mbps full-duplex
• Protocol Support: MODBUS RTU, MODBUS TCP, and optional OPC UA for system integrationABB
• Configuration Tools: Front-panel keypad with full-color TFT display; ABB ConfigPilot PC softwareABB
• System Compatibility: ABB 800xA DCS, ABB Freelance DCS, and third-party SCADA systems

Compliance & Certifications

• Safety Standards: IEC 61010-1, EN 61010-1 (pollution category 2, insulation category 2)
• EMC Standards: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emission)
• Certifications: CE, cULus, CSA, and ATEX (for hazardous locations, optional)

Functional Features

1. Advanced Control Algorithms

• Dual-Loop Control: Simultaneously manages two independent process loops with full PID functionalityABB
• Adaptive PID: Automatically adjusts PID parameters in real time to optimize control for changing process dynamics
• Gain Scheduling: Implements multiple PID parameter sets for non-linear processes with varying operating conditions
• Cascade & Feed-Forward: Supports cascade control for nested loops and feed-forward control to compensate for measurable disturbancesABB
• Ratio Control: Maintains precise ratio between two process variables for blending, mixing, and proportioning applicationsABB
• Autotune: One-button automatic PID tuning for rapid commissioning and optimal loop performanceABB

2. Universal Input & Flexible Output

• Universal Input Support: Accepts all standard thermocouple, RTD, and analog current/voltage signals without hardware changes
• Isolated I/O: Full galvanic isolation eliminates ground loops and protects against electrical noise
• Configurable Outputs: Analog outputs support 4–20 mA or 0–10 V DC; relays handle high-current switching for valves, pumps, and alarms
• Totalization & Math Functions: Built-in totalization for flow measurement and math/logic functions for custom process calculationsABB

3. Intuitive User Interface & Diagnostics

• Full-Color TFT Display: 2.8-inch color display shows real-time process values, setpoints, trends, and alarm status with clear text promptsABB
• Trend Recording: Stores up to 100 hours of historical process data for analysis and troubleshootingABB
• Comprehensive Alarms: Configurable high/low, rate-of-change, and deviation alarms with visual and relay output notifications
• Diagnostic Tools: Built-in self-test, input signal validation, and communication status monitoring for proactive maintenanceABB
• Password Protection: Multi-level password security prevents unauthorized configuration changes

4. Robust Industrial Design & Reliability

• IP66/NEMA 4X Front Protection: Resists dust, water, and harsh industrial cleaning agents
• Wide Temperature Range: Operates reliably in extreme industrial environments
• High EMC Immunity: Withstands electrical interference common in industrial plants
• Long Service Life: Industrial-grade components ensure high MTBF and minimal maintenance requirements
• Hot-Swappable I/O Modules: Optional plug-in I/O modules allow replacement without powering down the controller

5. Seamless System Integration

• Dual Communication Ports: RS485 and Ethernet enable connection to PLCs, DCS, SCADA, and HMI systemsABB
• MODBUS Compatibility: Standard MODBUS RTU/TCP support for easy integration with third-party devicesABB
• Remote Configuration: Full configuration and monitoring via Ethernet from any networked PC using ConfigPilot softwareABB
• Data Logging: Exports process data to CSV files for analysis in Excel or other software tools
• Scalable Architecture: Supports expansion with additional I/O modules for growing application requirements

Application Scenarios

1. Temperature Control Applications

• Furnaces & Ovens: Precise temperature regulation for industrial heat treatment, annealing, and baking processes
• Boilers & Steam Systems: Controls temperature and pressure in steam boilers, hot water systems, and thermal fluid heaters
• Plastics Processing: Manages extruder, injection molding, and blow molding machine barrel and die temperatures
• Food & Beverage: Regulates cooking, pasteurization, and sterilization temperatures in food processing lines

2. Flow & Pressure Control

• Pump & Valve Control: Maintains constant flow rates and pressures in water treatment, chemical dosing, and hydraulic systems
• Compressed Air Systems: Controls pressure and flow in industrial air compression and distribution networks
• Hydraulic Systems: Regulates pressure and flow for industrial machinery, presses, and material handling equipment
• Gas Distribution: Manages pressure and flow in natural gas, propane, and industrial gas distribution systems

3. Level & Liquid Process Control

• Tank Level Regulation: Controls fill/drain cycles for liquid storage tanks, mixing vessels, and process reactors
• Chemical Blending: Maintains precise level and ratio control for multi-component chemical mixing processes
• Water & Wastewater: Regulates liquid levels in treatment tanks, clarifiers, and sludge processing systems
• Beverage Production: Controls liquid levels and mixing ratios in brewing, distilling, and soft drink manufacturing

4. General Industrial Automation

• Packaging Machinery: Controls temperature, pressure, and speed in packaging lines, filling machines, and sealing equipment
• Textile Manufacturing: Regulates temperature, tension, and speed in spinning, weaving, and dyeing processes
• Woodworking: Manages temperature and pressure in laminating presses, drying kilns, and finishing equipment
• Printing & Paper: Controls web tension, temperature, and speed in paper machines, printing presses, and coating lines

5. HVAC & Building Automation

• Commercial HVAC: Regulates temperature, humidity, and airflow in large commercial buildings and industrial facilities
• Cleanroom Control: Maintains precise temperature, humidity, and pressure in pharmaceutical and electronics cleanrooms
• Data Center Cooling: Controls cooling system temperature and flow for efficient IT infrastructure operation
• Greenhouse Automation: Manages temperature, humidity, and irrigation for agricultural greenhouse environments

6. Energy & Utilities

• Solar Thermal Systems: Controls temperature and flow in solar water heating and thermal energy storage systems
• Biomass Boilers: Regulates combustion temperature and heat output in renewable energy heating systems
• District Heating: Manages temperature and pressure in district heating distribution networks
• Waste Heat Recovery: Controls heat recovery processes in industrial power generation and cogeneration systems
