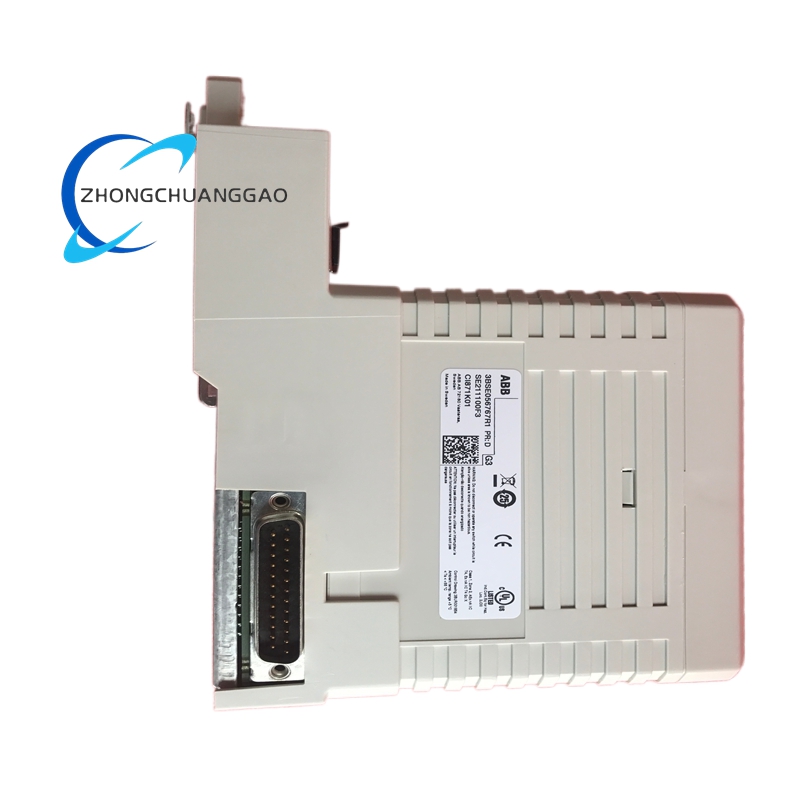

ABB CI871 PROFINET IO Communication Interface Module

Description

Technical Specifications

• Module Type: PROFINET IO Communication Interface Module
• Compatible Systems: ABB AC 800M Controller, ABB System 800xA DCS
• Communication Protocol: PROFINET IO V2.2, V2.3
• Operating Mode: Configurable as PROFINET IO Master or Slave
• Transmission Speed: 10/100 Mbit/s (Auto-negotiation)
• Physical Interface: 1 × RJ45 Ethernet port (on TP867 Baseplate)
• Bus Connection: CEX-Bus (Controller Expansion Bus)
• Power Supply: Powered via CEX-Bus (24 V DC)
• Power Consumption: Typical 160 mA at 24 V DC
• Dimensions (W × H × D): 59 mm × 185 mm × 127.5 mm
• Weight: Approximately 0.7 kg (including baseplate)
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: -40 °C to +70 °C
• Relative Humidity: 5% to 95% non-condensing
• Environmental Rating: IP20, Pollution Degree 2, G3 corrosive gas resistance (ISA 71.04)
• Module Redundancy: Supported (for high-availability systems)
• Hot-Swap Capability: Supported (for maintenance without system shutdown)
• Max. Units per CEX-Bus: Up to 12 communication modules
• Certifications: CE, UL, cULus, RoHS, WEEE, ABS, BV, DNV-GL, LR (Marine)
• Diagnostics: Comprehensive built-in diagnostic functions
• Status Indicators: LED indicators for Power, Run, Communication, and Faults

Functional Features

1. PROFINET IO Master/Slave Flexibility
   • Operates as a PROFINET IO Controller (Master), managing and exchanging cyclic and acyclic data with multiple IO devices.
   • Functions as a PROFINET IO Device (Slave), allowing the AC 800M controller to be controlled by a higher-level PLC or controller.
   • Complies fully with PROFINET IO V2.2 and V2.3 specifications, ensuring broad compatibility with standard devices.
   • Supports Real-Time (RT) communication class for deterministic performance in process automation.
2. High-Speed & Deterministic Communication
   • Delivers fast 10/100 Mbps Ethernet connectivity for efficient data throughput.
   • Ensures deterministic data exchange, critical for precise control and synchronization in industrial processes.
   • Efficiently handles hundreds of cyclic I/O signals, preventing network saturation in complex systems.
3. Seamless System Integration
   • Plugs directly into the AC 800M controller’s CEX-Bus slot for a direct, high-speed connection.
   • Requires no external power supply, simplifying installation and reducing wiring complexity.
   • Fully integrated with ABB Control Builder M engineering tool for intuitive configuration.
   • Supports standard GSDML files for automatic parameterization and commissioning of PROFINET devices.
4. Robust Industrial Reliability
   • Features an industrial-grade design with G3 corrosion resistance for operation in harsh environments.
   • Built to meet strict marine certifications (ABS, BV, DNV-GL, LR), suitable for offshore and marine applications.
   • Provides galvanic isolation between field circuits and the controller, protecting against electrical interference and ground loops.
   • Designed for continuous 24/7 operation with high mean time between failures (MTBF).
5. Advanced Diagnostics & Maintenance
   • Equipped with dedicated LED indicators for real-time status monitoring of communication and module health.
   • Offers comprehensive self-diagnostics and field device diagnostics, accessible via System 800xA.
   • Generates detailed alarm and fault messages for rapid troubleshooting and predictive maintenance.
   • Supports Hot-Swap replacement, allowing module servicing without shutting down the entire control system.
6. High Availability & Redundancy
   • Supports module redundancy, enabling the installation of a backup CI871 module.
   • Ensures uninterrupted communication and process control in the event of a primary module failure.
   • Integrates seamlessly with redundant AC 800M controller configurations for maximum system uptime.

Application Scenarios

• Manufacturing & Automotive: Assembly lines, robot cells, and machine automation integrating PROFINET I/O and drives.
• Oil & Gas: Refineries, offshore platforms, and pipeline automation connecting intelligent field devices.
• Power Generation: Thermal, hydro, and renewable power plants for turbine control and auxiliary systems.
• Water & Wastewater: Pump stations, filter plants, and distribution networks using remote PROFINET I/O.
• Metals & Mining: Rolling mills, smelters, and material handling systems requiring high-speed drive control.
• Pulp & Paper: Paper machines and drying sections with distributed drives and I/O.
• Chemical & Pharmaceutical: Batch processing plants and continuous production lines.
• Marine & Offshore: Vessel automation, dynamic positioning, and deck machinery control systems.
• Food & Beverage: Packaging lines, processing equipment, and hygiene-sensitive production areas.

Key Advantages

• Protocol Flexibility: Dual Master/Slave capability maximizes network design options.
• Future-Proof Connectivity: Enables AC 800M systems to integrate with modern, Ethernet-based field devices.
• Simplified Architecture: CEX-Bus power and communication eliminate need for external components.
• Maximized Uptime: Hot-swap and redundancy features ensure continuous operation.
• Global Compatibility: Extensive certifications allow deployment worldwide across various industries.
• Ease of Use: Deep integration with ABB’s engineering tools simplifies configuration and diagnostics.
• Cost-Effective Integration: Reduces reliance on expensive third-party gateways for PROFINET connectivity.
