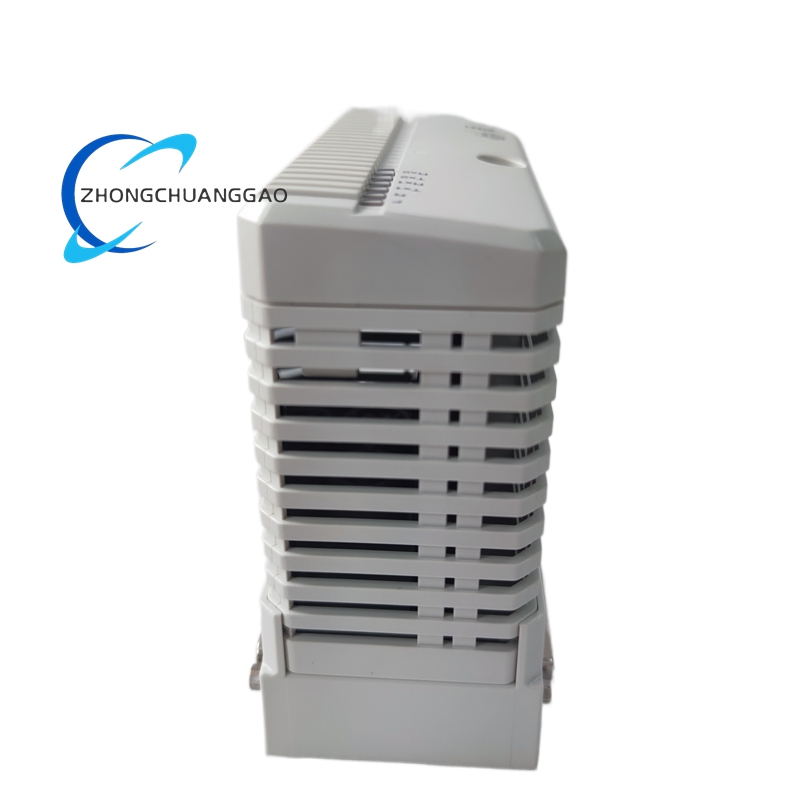

ABB CI861K01 3BSE058590R1 VIP Communication Interface Module

Description

Technical Specifications

Core Communication Parameters

• Product Type: VIP Communication Interface Module (Master)
• Supported Protocol: ABB VIP (Vendor Independent Protocol); interoperable with Modbus TCP, Ethernet/IP, and PROFINET via VIP mapping
• Physical Interfaces:
  • 2 × VIP ports (supports both copper and optical media)
  • 1 × Controller backplane interface (for power and internal data exchange)
• Data Transfer Rate: Up to 100 Mbps full-duplex on VIP copper; optical links support equivalent bandwidth with extended distance
• Latency: Less than 10 ms for cyclic real-time data exchange
• Maximum Nodes: Supports up to 64 VIP devices per module
• Redundancy Support: Native dual VIP port redundancy for ring or linear topologies
• Topology Support: Linear, ring, and star topologies with media converters

Power & Electrical Specifications

• Supply Voltage: Powered directly via AC800xA controller backplane (24 V DC nominal)
• Power Consumption: 7 W (typical), 10 W (maximum)
• Galvanic Isolation: 2500 V AC isolation between VIP network ports and controller backplane
• Protection Features: Overvoltage, reverse polarity, and short-circuit protection on all external interfaces
• Isolation Voltage: 2500 V AC (VIP ports to backplane; VIP ports to ground)

Physical & Environmental Specifications

• Dimensions: 59 mm (W) × 127.5 mm (H) × 185 mm (D)
• Net Weight: 0.621 kg (module only)
• Mounting: AC800xA controller rack mounting via included TP853 60 mm baseplate; compatible with standard 35 mm DIN-rail via rack adapter
• Enclosure Rating: IP20 (cabinet-mounted installation only)
• Operating Temperature: -25 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g rms)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms half-sine)
• Material: Flame-retardant thermoplastic (UL 94 V-0)
• RoHS Compliance: Compliant with EU RoHS 2 directive (2011/65/EU)

Compliance & Certifications

• Standards: IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission), IEC 61158-6 (industrial communication networks), IEC 61010-1 (electrical safety)
• Certifications: CE, UL, CSA, ATEX (for hazardous locations)
• System Compatibility: ABB AC800xA M/PEC Controller, ABB 800xA DCS, VIP-compliant field devices, S800 I/O systems

Functional Features

1. VIP Protocol Master Capabilities

• Deterministic Communication: Delivers low-latency, real-time data exchange critical for coordinated control and process regulation.
• Multi-Protocol Mapping: Natively maps VIP traffic to Modbus TCP, Ethernet/IP, and PROFINET, enabling seamless integration with third-party devices.
• Cyclic & Acyclic Data Handling: Simultaneously processes cyclic real-time I/O data and acyclic data for parameterization, diagnostics, and configuration.
• Media Flexibility: Supports both copper and optical VIP connections, with optical links providing extended distance and immunity to electromagnetic interference (EMI).
• Auto-Negotiation: Automatically detects media type and configures communication parameters for plug-and-play operation.

2. Redundancy & High Availability

• Dual VIP Port Redundancy: Enables ring or linear redundant topologies, eliminating single points of failure in the communication network.
• Seamless Failover: Automatically switches to the secondary VIP link in milliseconds without interrupting controller operation or process control.
• Redundant Power Integration: Leverages the AC800xA controller’s redundant power supply to ensure module operation during primary power failures.
• Hot-Swappable Design: Allows module replacement during system operation, minimizing maintenance downtime and ensuring continuous process availability.

3. Advanced Diagnostics & Monitoring

• Comprehensive LED Indicators: Multi-color LEDs provide real-time status of power, VIP port activity, redundancy state, and fault conditions for quick on-site troubleshooting.
• Detailed Fault Logging: Captures and stores communication errors, media faults, node disconnections, and module health events for historical analysis.
• Remote Diagnostics: Enables access to diagnostic data via the 800xA engineering workstation or remote maintenance tools, supporting off-site troubleshooting.
• Alarm Generation: Triggers system-level alarms for communication failures, redundancy switchovers, and module malfunctions, ensuring immediate operator notification.
• Loopback Testing: Built-in loopback functionality for validating VIP port integrity and media performance during commissioning and maintenance.

4. Robust Industrial Design & EMC Performance

• Wide Temperature Range: Operates reliably in extreme industrial environments, from sub-zero cold to high-temperature control cabinets.
• Superior EMC Resilience: Meets stringent IEC 61000-6-2/4 standards, ensuring stable performance in electrically noisy environments such as power plants and metal processing facilities.
• Galvanic Isolation: Eliminates ground loops and protects the controller from electrical faults and surges on the VIP network.
• Mechanical Durability: Designed to withstand vibration and shock in heavy industrial and mobile applications, ensuring long service life.
• Compact Form Factor: Optimizes rack space with a 60 mm width baseplate, enabling high-density installation in compact control cabinets.

5. Easy Configuration & Scalability

• Native 800xA Integration: Configured entirely via ABB Control Builder M and 800xA Engineering Workplace, with pre-defined function blocks for quick system setup.
• Auto-Discovery: Automatically detects VIP-connected devices, reducing commissioning time and configuration errors.
• Modular Scalability: Supports multiple CI861K01 modules per AC800xA controller, enabling expansion of VIP networks to accommodate growing system requirements.
• One-Stop Parameterization (OSP): Simplifies configuration of connected VIP devices by centralizing parameter management in the 800xA system.
• Backward Compatibility: Integrates with legacy VIP devices and older AC800xA controller firmware versions, ensuring investment protection.

Application Scenarios

1. Process Automation (Oil & Gas, Petrochemicals)

• Upstream Oil & Gas: Connects wellhead control panels, flow meters, and pressure transmitters to the 800xA DCS via optical VIP links, ensuring reliable communication in remote, harsh environments.
• Refineries: Manages communication between process units (distillation, cracking, hydroprocessing) and the central DCS, supporting deterministic control of critical processes.
• Petrochemical Plants: Integrates reactor control systems, analytical instruments, and safety systems via redundant VIP networks, ensuring uninterrupted operation in continuous production.

2. Power Generation & Distribution

• Thermal Power Plants: Coordinates boiler, turbine, and generator control systems with the 800xA DCS, supporting real-time data exchange for load regulation and efficiency optimization.
• Renewable Energy: Connects wind turbine controllers, solar inverters, and battery energy storage systems (BESS) to the grid control system via VIP, enabling grid stability and renewable integration.
• Substations: Implements IEC 61850-compliant communication via VIP mapping, integrating protection relays, circuit breakers, and SCADA systems for smart grid operation.

3. Metals & Mining Industry

• Steel Mills: Synchronizes rolling mill drives, furnace controls, and material handling systems via low-latency VIP communication, ensuring precise control of steel production processes.
• Mining Operations: Connects underground control stations, ore crushers, and conveyor systems to the surface DCS via optical VIP links, providing immunity to EMI and extended distance coverage.
• Aluminum Smelters: Manages pot line control systems and rectifier units, supporting high-reliability communication in corrosive, high-temperature environments.

4. Pulp & Paper & Manufacturing

• Paper Mills: Synchronizes paper machine sections (forming, pressing, drying) via VIP, maintaining consistent web tension and speed for high-quality paper production.
• Automotive Manufacturing: Integrates robotic assembly lines, paint shops, and quality control systems with the 800xA controller, enabling real-time coordination of manufacturing processes.
• Food & Beverage: Connects filling lines, packaging machines, and hygiene control systems via redundant VIP networks, ensuring compliance with strict food safety regulations.

5. Critical Infrastructure & Water Treatment

• Water & Wastewater Treatment: Integrates pump stations, filtration plants, and chemical dosing systems with the central SCADA system via VIP, supporting remote monitoring and control of water treatment processes.
• District Heating/Cooling: Manages energy distribution networks, connecting heat exchangers, pumps, and control valves to the 800xA system for efficient energy management.
• Data Centers: Connects power distribution units (PDUs), cooling systems, and environmental monitors to the facility control system, ensuring reliable operation of critical IT infrastructure.

6. Marine & Offshore Applications

• Offshore Platforms: Uses optical VIP links to connect process control systems, safety systems, and subsea equipment to the platform DCS, withstanding harsh marine conditions and long cable runs.
• Ship Automation: Integrates navigation, propulsion, and cargo handling systems on vessels, providing reliable communication in high-vibration, salt-laden environments.
• Port Automation: Connects container cranes, terminal operating systems, and logistics equipment via redundant VIP networks, enabling efficient port operations.
