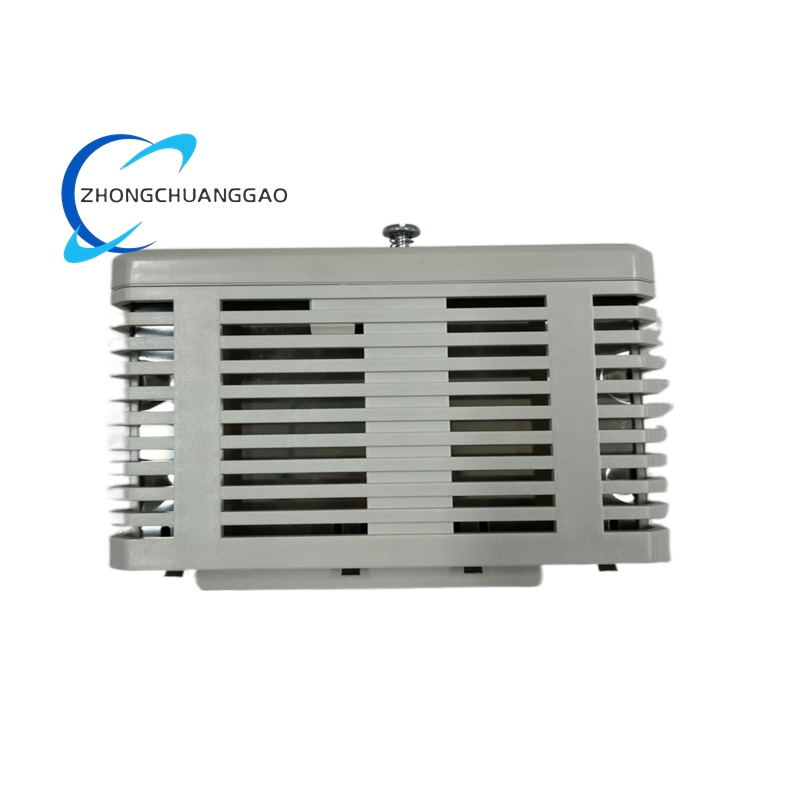

ABB CI861 Communication Interface Module

Description

Technical Specifications

• Product Type: VIP (Versatile Industrial Protocol) Communication Interface Module
• Compatible Systems: ABB AC 800M Controller, ABB System 800xA DCS, ABB S800 I/O Series
• Supported Protocols: Virtual I/O Protocol (VIP), PROFIBUS DP/V1, Modbus RTU, Modbus TCP, Ethernet/IP
• Number of Ports: Dual-port communication interface (supporting redundant network configurations)
• Maximum Data Transfer Rate: Up to 12 Mbps (PROFIBUS DP), Up to 1 Gbps (Ethernet-based protocols)
• Power Supply: 24 V DC (powered via S800 I/O backplane)
• Power Consumption: Typical 2.5 W, Maximum 3.2 W
• Physical Dimensions (W x H x D): 59 mm x 185 mm x 127.5 mm
• Net Weight: Approx. 0.62 kg
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: -40 °C to +70 °C
• Relative Humidity: 5% – 95% RH (non-condensing)
• Isolation: Galvanic isolation between field and system sides (500V AC)
• Mounting: DIN-rail mounting or direct insertion into S800 I/O subrack
• Compatible Base Units: TU854, TU855
• LED Indicators: Power status, module operational status, communication activity, fault diagnosis, port-specific status
• Certifications: CE, UL, CSA, ATEX Zone 2, IEC 61131-2, Marine certifications (BV, DNV-GL)
• Protection Class: IP20

Key Features & Benefits

1. Multi-Protocol Versatility
   • Supports a comprehensive suite of industrial communication protocols including VIP, PROFIBUS DP/V1, Modbus RTU, Modbus TCP, and Ethernet/IP.
   • Enables seamless connection to a wide variety of field devices such as PLCs, variable frequency drives, remote I/O units, smart instruments, and third-party controllers.
   • Eliminates the need for multiple single-protocol modules, reducing system complexity, hardware costs, and cabinet space.
2. High-Speed Deterministic Communication
   • Delivers fast and deterministic data transmission critical for real-time process control, closed-loop regulation, and high-speed monitoring applications.
   • Ensures low-latency communication with precise data synchronization, supporting time-critical automation tasks and sequence-of-events (SOE) recording.
   • Optimizes data throughput for large-scale distributed systems with numerous field devices.
3. Redundancy & High Availability
   • Fully supports redundant network and module configurations to eliminate single points of failure.
   • Provides automatic failover between primary and backup communication channels with zero data loss.
   • Features hot-swappable design, allowing for module replacement, maintenance, or expansion without system shutdown, minimizing unplanned downtime.
4. Advanced Diagnostics & Monitoring
   • Integrated LED indicators offer real-time visual feedback on power, communication status, and fault conditions for quick on-site assessment.
   • Comprehensive built-in diagnostic functions enable continuous system health monitoring, error logging, and predictive maintenance.
   • Compatible with ABB’s Automation Builder software for centralized configuration, detailed fault analysis, and firmware updates.
5. Robust Industrial Design
   • Galvanic isolation protects against electrical noise, ground loops, and voltage transients common in harsh industrial environments.
   • Constructed to withstand wide temperature variations, high humidity, vibration, and mechanical shock.
   • Conforms to international safety, EMC, and hazardous area standards, ensuring reliable operation in demanding industrial and offshore settings.
6. Seamless System Integration
   • Directly interfaces with ABB S800 I/O modules via the ModuleBus for centralized control of distributed field devices.
   • Offers plug-and-play compatibility with standard ABB base units and subracks, simplifying installation and system expansion.
   • Supports HART protocol pass-through for accessing diagnostic data from smart field instruments, enhancing asset management capabilities.

Application Scenarios

• Oil & Gas Industry
  • Connects offshore platforms, onshore refineries, and pipeline networks to central DCS systems.
  • Integrates smart instruments, ESD (Emergency Shutdown) systems, and remote terminal units (RTUs) for reliable process monitoring and control.
  • Facilitates communication between distributed wellhead controls and central SCADA systems.
• Petrochemical & Chemical Processing
  • Links complex process units such as distillation columns, reactors, and storage tank farms to control systems.
  • Ensures secure and deterministic communication for critical control loops and safety instrumented systems (SIS).
  • Connects to variable frequency drives and motor control centers for efficient plant operation.
• Power Generation
  • Integrates boiler, turbine, and generator control systems with auxiliary plant equipment.
  • Supports reliable data acquisition and control for emissions monitoring, turbine protection, and power plant safety systems.
  • Enables communication with smart switchgear and substation automation devices.
• Mining & Metals Processing
  • Manages communication with remote crushing, grinding, smelting, and material handling operations.
  • Operates reliably in high-vibration, high-dust, and extreme temperature environments.
  • Connects to heavy-duty motor drives and conveyor control systems for efficient mineral processing.
• Pulp & Paper Manufacturing
  • Provides stable communication for paper machines, drying processes, and raw material handling lines.
  • Supports high-speed, synchronized control for continuous production and quality monitoring.
  • Integrates with a wide range of drives, instruments, and third-party systems.
• Water & Wastewater Treatment
  • Controls geographically dispersed pump stations, water treatment plants, and distribution networks.
  • Enables reliable SCADA integration for municipal water management and critical utility services.
  • Connects to flow meters, level sensors, and valve actuators for efficient process regulation.
• Marine & Offshore Applications
  • Used in shipboard automation, dynamic positioning, and offshore rig control systems.
  • Withstands marine conditions including salt spray, high humidity, and mechanical vibration.
  • Certified for use on commercial vessels and offshore installations.
