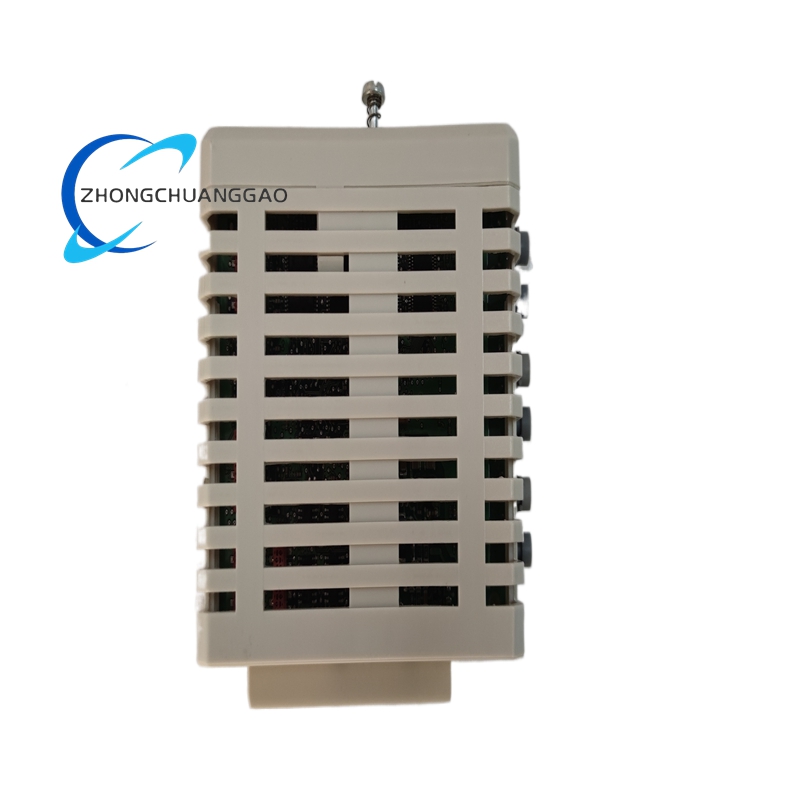

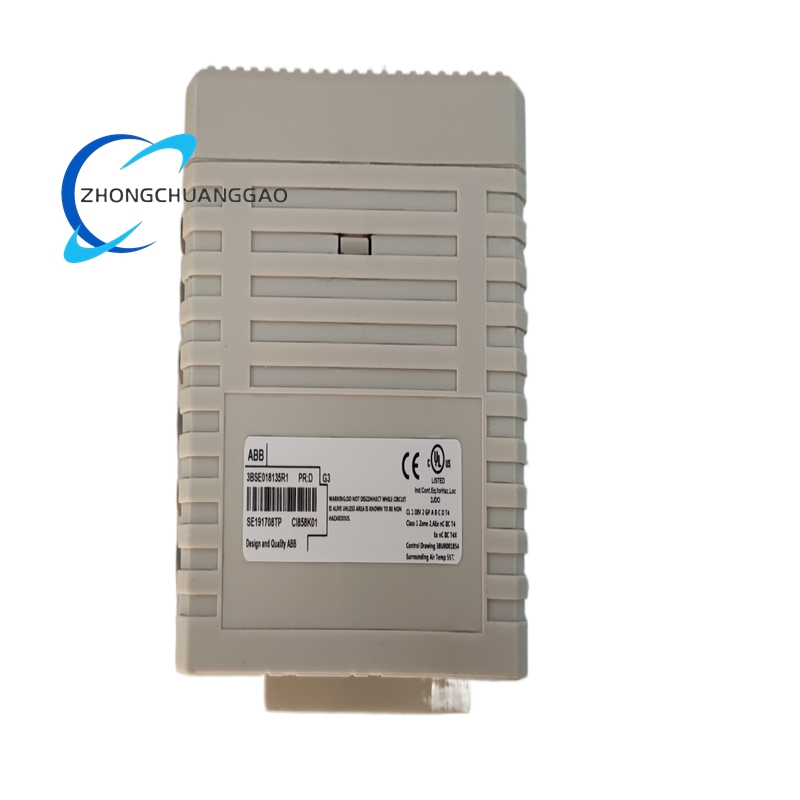

ABB CI858K01 3BSE018135R1 DriveBus Interface Module

Description

Technical Specifications

Core Communication Parameters

• Product Type: DriveBus Master Communication Interface ModuleABB
• Supported Protocol: ABB DriveBus (Proprietary High-Speed Serial Protocol)
• Operating Mode: DriveBus MasterABB
• Number of Channels: 1 dedicated DriveBus channelABB
• Data Transfer Rate: 8 Mbit/s (fixed high-speed transmission)ABB
• Maximum Drive Connectivity: Supports connection of up to 24 ABB drives per module
• Maximum Modules per AC 800M Controller: Up to 2 CI858K01 modules can be installed
• Physical Interface: Dedicated DriveBus connector (proprietary) for daisy-chaining drives
• Backplane Connection: Integrates directly with the AC 800M controller backplane for power and data exchangeABB

Power & Electrical Specifications

• Supply Voltage: Powered via AC 800M backplane (24 V DC nominal)
• Power Consumption: Low-power design optimized for rack integrationABB
• Electrical Isolation: Full galvanic isolation between DriveBus network and AC 800M backplane logicABB
• Protection Features: Overvoltage, transient, and short-circuit protection on all interfacesABB

Physical & Environmental Specifications

• Dimensions: 59 mm (W) × 185 mm (H) × 127.5 mm (D)ABB
• Net Weight: 0.7 kg (including base unit)ABB
• Mounting: Standard AC 800M rack mounting (DIN-rail compatible via rack)ABB
• Enclosure Rating: IP20 (cabinet-mounted only)ABB
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°CABB
• Relative Humidity: 5%–95% RH (non-condensing)ABB
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g)ABB
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms)ABB
• Material: Flame-retardant thermoplastic (UL 94 V-0)ABB
• RoHS Compliance: Compliant with EU RoHS 2 directive (2011/65/EU)ABB
• WEEE Category: 5 (Small Equipment)ABB

Compliance & Certifications

• Standards: IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission), IEC 61010-1 (safety)ABB
• Certifications: CE, UL, CSAABB
• System Compatibility: ABB AC 800M Controller Series, ABB 800xA DCSABB

Functional Features

1. High-Speed DriveBus Communication

• Deterministic Data Transfer: Operates at a fixed 8 Mbit/s, ensuring low-latency, real-time data exchange critical for coordinated drive controlABB.
• Master Control Capability: Functions as a DriveBus master, managing the communication cycle, polling drives, and distributing control commandsABB.
• Comprehensive Data Exchange: Transmits critical drive parameters including speed reference, torque command, actual speed, current, voltage, and fault codes.
• Synchronization Support: Provides precise timing signals for synchronizing the operation of multiple connected drives in complex motion sequences.

2. Scalability & Integration

• High Drive Capacity: Connects up to 24 ABB drives on a single network, supporting large-scale multi-drive systems.
• Dual Module Support: Allows installation of up to two modules per AC 800M controller, doubling the drive connectivity potential.
• Native AC 800M Integration: Plugs directly into the AC 800M rack backplane, eliminating the need for external gateways or adaptersABB.
• Hot-Swappable Design: Enables module replacement during system operation, significantly reducing maintenance-related downtime.

3. Robust Reliability & Diagnostics

• Galvanic Isolation: Provides complete electrical isolation, preventing ground loops and protecting the controller from electrical noise and faults on the drive networkABB.
• Built-in Diagnostics: Monitors DriveBus communication health, drive status, and module operation continuouslyABB.
• LED Status Indicators: Features clear visual indicators for power, communication activity, and fault conditions for quick on-site troubleshooting.
• Fault Logging: Captures and stores communication errors and drive fault events for detailed analysis via the AC 800M engineering toolsABB.

4. Industrial-Grade Design

• Wide Operating Temperature: Performs reliably in extreme industrial environments with significant temperature fluctuations.
• EMC Resilience: Designed for high electromagnetic compatibility, ensuring stable operation in electrically noisy industrial plantsABB.
• Compact Form Factor: Optimizes cabinet space within the standard AC 800M rack configurationABB.
• Long Service Life: Utilizes industrial-grade components and undergoes rigorous testing for high MTBF and minimal maintenance requirementsABB.

Application Scenarios

1. Metals & Mining Industry

• Steel Rolling Mills: Coordinates multiple drives for precise control of rolling stands, ensuring uniform material thickness and speed across the production line.
• Aluminum Processing: Manages drives for extrusion presses, strip mills, and coil handling systems, requiring high precision and synchronization.
• Ore Processing: Controls conveyor belts, crushers, and grinding mills, ensuring efficient and reliable material handling in harsh mining environments.

2. Pulp & Paper Manufacturing

• Paper Machines: Synchronizes drives for the forming, pressing, drying, and calendering sections, maintaining consistent web tension and speed throughout the process.
• Pulp Mills: Controls drives for digesters, washers, and screening equipment, optimizing the chemical pulping process.
• Converting Lines: Manages drives for slitting, rewinding, and coating machines, ensuring high-quality finished products.

3. Printing & Packaging

• Web Printing Presses: Controls multiple print units and web handling drives for precise registration and speed control in high-speed printing operations.
• Flexible Packaging Lines: Coordinates drives for extrusion, printing, laminating, and cutting machines in flexible packaging production.
• Labeling Machines: Provides precise drive control for high-speed labeling and packaging automation lines.

4. Material Handling & Logistics

• Conveyor Systems: Manages drives for long-distance and complex conveyor networks in warehouses, distribution centers, and airports.
• Cranes & Hoists: Controls hoist, trolley, and gantry drives for precise and safe movement of heavy loads in ports, shipyards, and manufacturing facilities.
• Elevator & Escalator Systems: Ensures smooth and reliable operation of drives for vertical transportation in commercial and industrial buildings.

5. General Manufacturing & Machine Building

• Textile Machinery: Controls spinning, weaving, and dyeing machines, requiring precise speed and tension control.
• Plastics & Rubber Processing: Manages extruders, injection molding machines, and calenders for consistent product quality.
• Woodworking Machinery: Coordinates drives for saws, planers, and routers in furniture and building material production.
