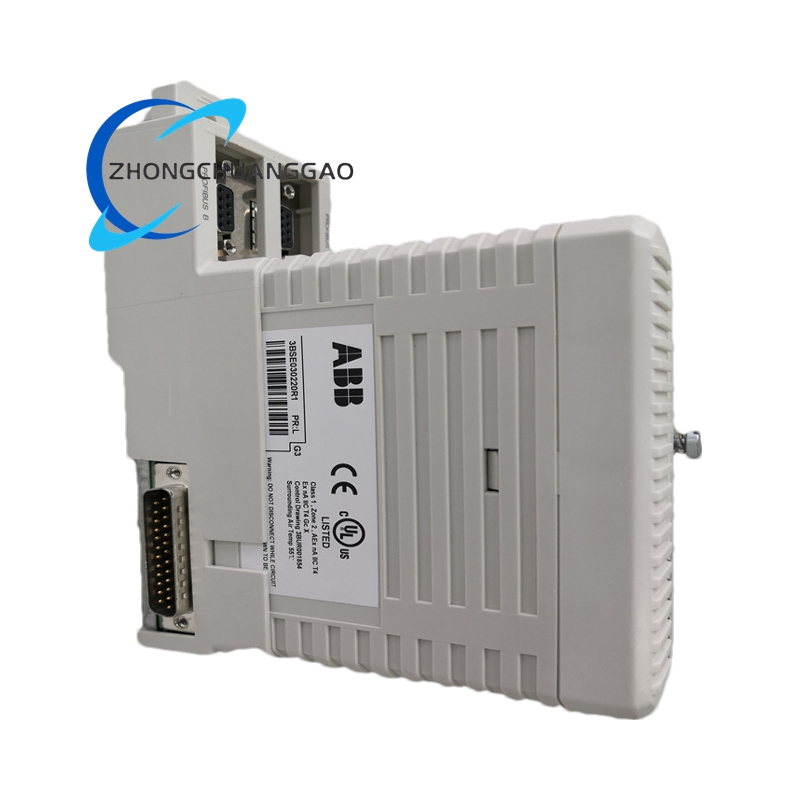

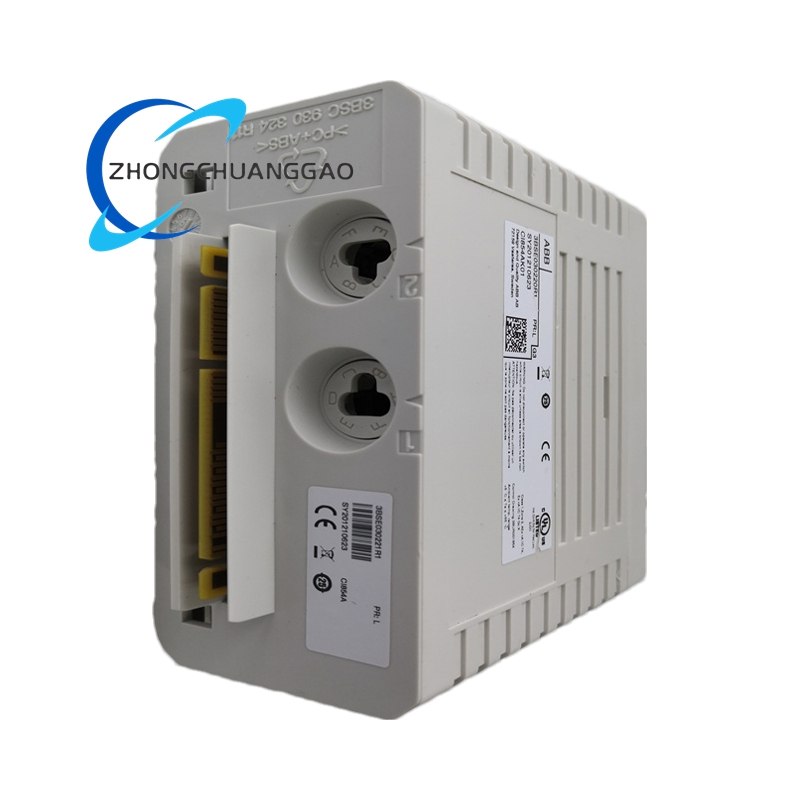

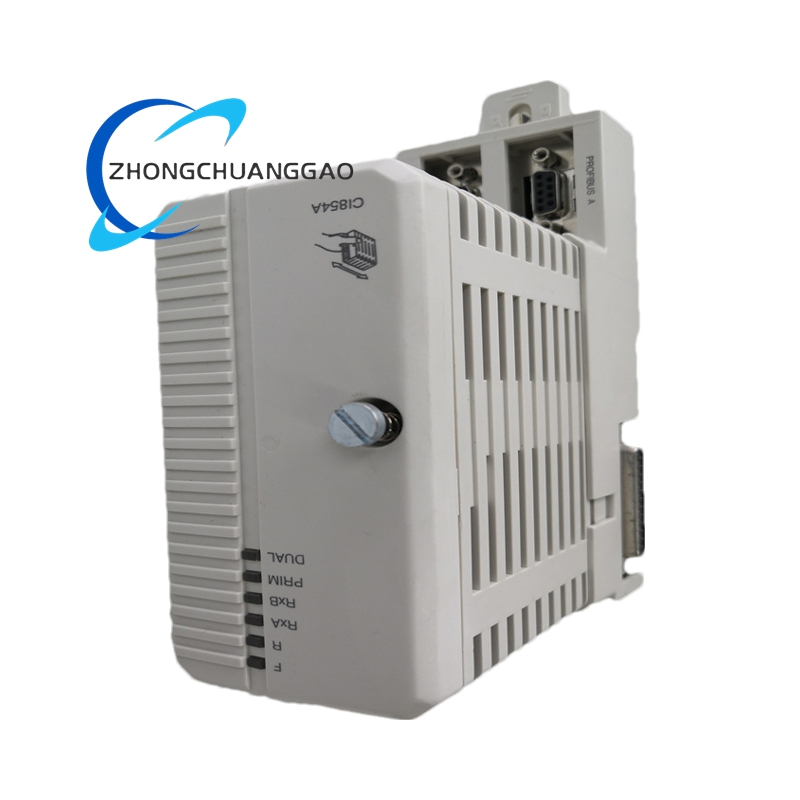

ABB CI854AK01 PROFIBUS-DP/V1 Communication Interface Module

Description

• Power Supply:
  • 24 V DC (via AC 800M backplane or external power source).
• Physical Dimensions:
  • Width: 59 mm, Height: 185 mm, Depth: 127.5 mm.
• Weight: Approximately 0.59 kg.
• Operating Temperature:
  • -20°C to +60°C (extended range for harsh environments).
• Storage Temperature: -40°C to +70°C.
• Protection Class: IP65 (dust-tight and water-resistant).
• Redundancy Support:
  • Line redundancy and master station redundancy for enhanced system availability.

Functional Features

• High Reliability:
  • Industrial-grade design with robust components ensures stable operation in extreme conditions (vibration, electromagnetic interference).
• Dual-Channel Architecture:
  • Two independent PROFIBUS-DP channels allow connection to up to 64 slave devices, improving system scalability.
• Redundancy Capabilities:
  • Supports line redundancy and master station redundancy to minimize downtime in critical applications.
• High-Speed Data Transmission:
  • 12 Mbit/s transmission rate meets real-time control requirements for industrial automation.
• Multi-Protocol Support:
  • CI854AK01 supports Modbus TCP and Ethernet/IP (via optional firmware), enabling integration with non-PROFIBUS systems.
• Self-Diagnostics and Protection:
  • Built-in fault detection and protection mechanisms safeguard against overvoltage, overcurrent, and communication errors.
• Hot Swapping:
  • The module can be inserted or removed without powering down the system, reducing maintenance time.
• Easy Configuration:
  • Software tools simplify parameter setup (e.g., baud rate, data bits, parity) for compatibility with various devices.

Application Scenarios

• Factory Automation:
  • Connects remote I/O modules, sensors, and actuators in automotive, electronics, and food/beverage manufacturing for real-time control.
• Process Control:
  • Integrates smart instruments, valve positioners, and frequency converters in chemical, petrochemical, and pharmaceutical plants for distributed process monitoring.
• Energy Management:
  • Monitors and controls motor control centers (MCCs), low-voltage switchgear, and renewable energy systems (e.g., wind turbines, solar inverters) in power generation and distribution networks.
• Water Treatment:
  • Links water quality analyzers, pump stations, and control equipment to build automated water treatment systems with real-time data acquisition.
• Material Handling:
  • Controls conveyors, stackers, and warehouse management systems in logistics centers for efficient automation of material flow.
• Building Automation:
  • Manages HVAC, lighting, and security systems in smart buildings for energy-efficient operation.

Key Advantages

• Enhanced System Availability:
  • Dual-channel and redundancy features ensure continuous operation even during communication failures.
• Scalability:
  • Modular design allows easy expansion of I/O capacity to meet evolving automation needs.
• Cost Efficiency:
  • Reduces wiring complexity and maintenance costs through multi-protocol support and hot-swapping capability.
• Future-Proofing:
  • Aligns with Industry 4.0 trends by enabling integration with smart devices and predictive maintenance systems.
