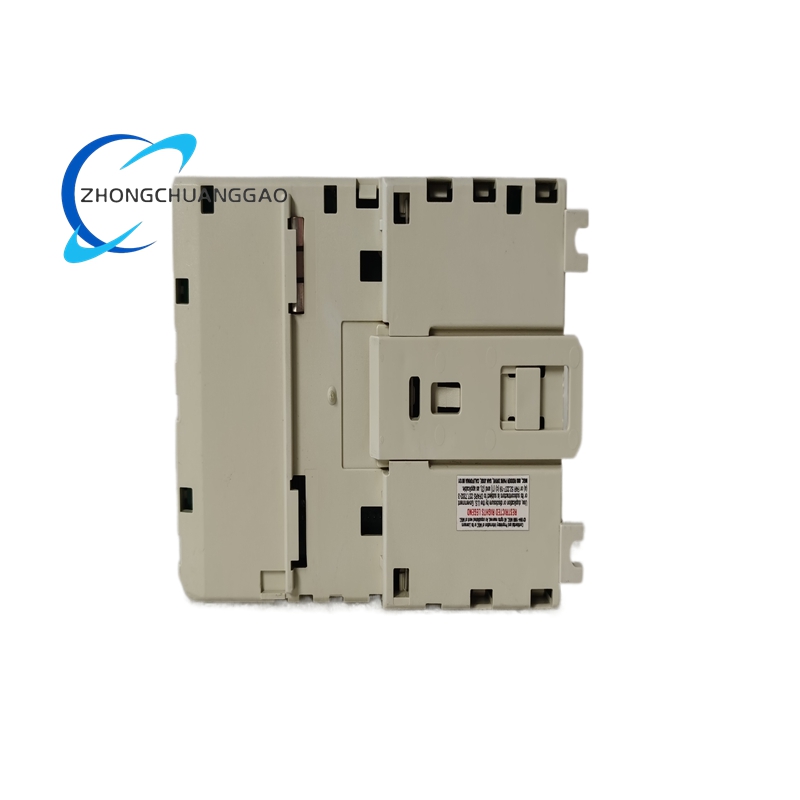

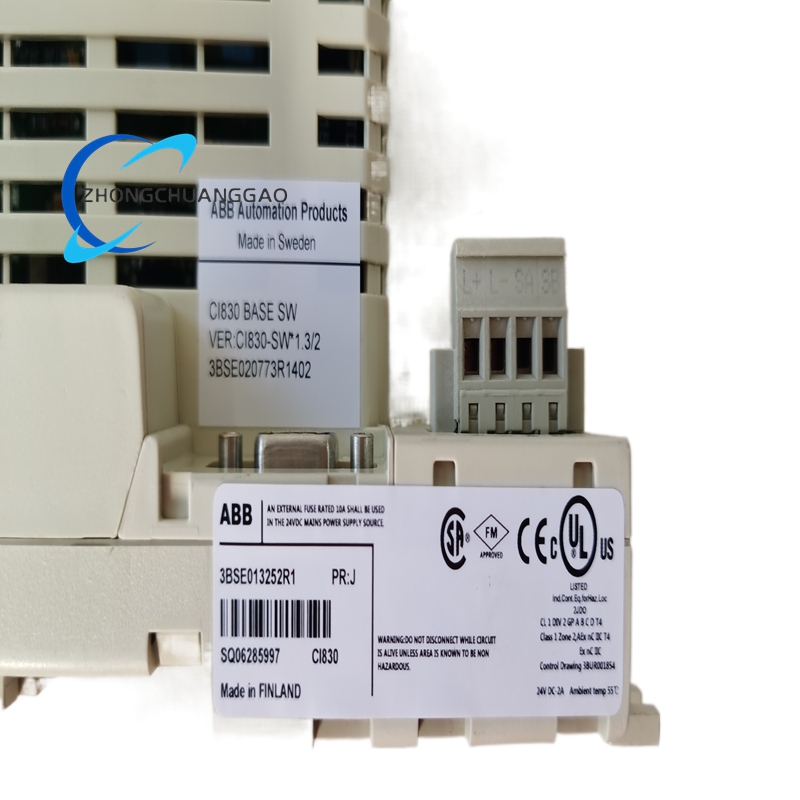

ABB CI830 3BSE013252R1 PROFIBUS DP-V1 Communication Interface Module

Description

Technical Specifications

Core Communication Parameters

• Product Type: PROFIBUS DP-V1 Fieldbus Communication Interface Module (FCI)
• Supported Protocol: PROFIBUS DP-V0, PROFIBUS DP-V1
• Primary Function: PROFIBUS DP master, S800 I/O ModuleBus controller
• Physical Interfaces:
  • 1 × D-sub 9-pin PROFIBUS DP port (fieldbus connection)
  • 1 × ModuleBus connector (internal S800 I/O backplane)
  • 1 × RS232 service port (opto-isolated)
• Data Transfer Rate: 9.6 kbps to 12 Mbps (auto-baud detection)
• Station Addressing: 2 × rotary switches for PROFIBUS station address (0–99)
• Galvanic Isolation: 2500 V AC isolation between PROFIBUS bus, ModuleBus, and power circuits
• I/O Capacity: Supports up to 12 S800 I/O modules per ModuleBus segment
• Bus Topology: Line, tree, and star topologies supported for PROFIBUS DP

Power & Electrical Specifications

• Supply Voltage: 24 V DC (18–30 V DC range)
• Redundant Power Support: Dual power input terminals for redundant 24 V DC supply
• Power Consumption: 5 W (typical), 8 W (maximum)
• Isolated Output: Short-circuit proof +5 V DC supply for connected S800 I/O modules
• Input Protection: Overvoltage, reverse polarity, and short-circuit protection on power inputs
• Isolation Voltage: 2500 V AC (all communication and power circuits)

Physical & Environmental Specifications

• Dimensions: 110 mm (H) × 45 mm (W) × 102 mm (D)
• Net Weight: 0.45 kg
• Mounting: Standard 35 mm DIN-rail mounting (EN 60715)
• Enclosure Rating: IP20 (indoor cabinet-mounted installation)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms)
• Material: Flame-retardant thermoplastic (UL 94 V-0)
• Color: Standard ABB industrial gray

Compliance & Certifications

• Standards: IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission), IEC 61158 (PROFIBUS standard)
• Safety: EN 61010-1 (electrical equipment safety)
• Certifications: CE, UL, CSA
• Protocol Compliance: PROFIBUS DP-V0, DP-V1 certified by PROFIBUS International
• System Compatibility: ABB AC800M, AC800F, 800xA DCS, S800 I/O modules

Functional Features

1. Intelligent PROFIBUS Communication

• DP-V1 Master Capability: Operates as a PROFIBUS DP-V1 master, supporting cyclic data exchange and acyclic communication for parameterization and diagnostics.
• Auto-Baud Detection: Automatically detects and adapts to PROFIBUS bus speed from 9.6 kbps to 12 Mbps.
• ModuleBus Integration: Manages communication with S800 I/O modules via the internal ModuleBus, handling data acquisition and control signal distribution.
• OSP Handling: Supports One-Stop Parameterization (OSP) for simplified configuration of connected I/O modules.
• Legacy Compatibility: Integrates with older PROFIBUS DP devices and ABB control systems, ensuring backward compatibility.

2. High-Reliability & Redundancy

• Galvanic Isolation: Complete electrical isolation eliminates ground loops and protects against electrical noise, ensuring data integrity in noisy industrial environments.
• Redundant Power Supply: Dual power input terminals enable redundant 24 V DC power, preventing system downtime due to single power supply failure.
• Hot-Swappable Design: Allows module replacement during system operation, minimizing downtime for maintenance and upgrades.
• Error Detection & Correction: Built-in CRC and data validation mechanisms ensure reliable data transmission over PROFIBUS and ModuleBus.
• Watchdog Function: Integrated watchdog timer monitors module operation and triggers fail-safe actions in case of processor malfunction.

3. Advanced Diagnostics & Monitoring

• LED Status Indicators: Multi-color LEDs provide real-time visual feedback on power, PROFIBUS communication, ModuleBus status, and fault conditions.
• Comprehensive Fault Diagnostics: Detailed error logging for PROFIBUS communication errors, I/O module faults, and power supply issues.
• Remote Diagnostics: Supports remote access to diagnostic data via the PROFIBUS network or RS232 service port.
• Alarm Notification: Generates system alarms for communication failures, I/O module disconnections, and power supply anomalies.
• Test Functionality: Built-in test button for manual diagnostic checks and channel status verification.

4. Robust Industrial Design

• Wide Temperature Tolerance: Operates reliably in extreme industrial environments with temperature fluctuations.
• EMC Resilience: Superior electromagnetic compatibility ensures stable performance in electrically noisy process plants.
• Compact Form Factor: Space-saving design optimizes control cabinet space utilization in dense automation systems.
• High MTBF: Industrial-grade components and rigorous testing ensure long service life and minimal maintenance requirements.
• Shock & Vibration Resistance: Designed to withstand mechanical stress in industrial and mobile applications.

5. Flexible Configuration & Scalability

• Easy Addressing: Rotary switches for simple PROFIBUS station address configuration (0–99).
• Plug-and-Play Installation: Auto-detection of connected S800 I/O modules reduces commissioning time.
• Modular Scalability: Supports expansion of S800 I/O systems with additional modules, adapting to growing system requirements.
• User-Friendly Configuration: Configurable via ABB Control Builder software or RS232 service port.
• Third-Party Device Compatibility: Integrates with a wide range of PROFIBUS DP devices from multiple manufacturers.

Application Scenarios

1. Process Automation & DCS Systems

• Oil & Gas Refineries: Connects S800 I/O modules for process control of distillation columns, reactors, and storage tanks, ensuring reliable real-time communication.
• Petrochemical Plants: Manages PROFIBUS communication between DCS and field instruments, control valves, and safety systems in complex chemical processes.
• Power Generation: Integrates boiler, turbine, and generator control systems with S800 I/O in thermal, hydro, and combined-cycle power plants.
• Water & Wastewater Treatment: Facilitates communication between PLCs, SCADA systems, and field instruments for pump stations and filtration plants.
• Pulp & Paper Mills: Coordinates drives, sensors, and specialized machinery on high-speed production lines via PROFIBUS DP.

2. Discrete Manufacturing & Factory Automation

• Automotive Production: Integrates robotic assembly lines, conveyors, and vision systems with ABB control systems for efficient vehicle manufacturing.
• Food & Beverage Processing: Enables real-time control of mixing, packaging, and bottling lines with high-speed data exchange.
• Electronics Manufacturing: Connects SMT machines, pick-and-place robots, and test equipment in semiconductor production facilities.
• Machine Tools: Provides communication between CNC controllers, drives, and I/O systems in metalworking facilities.
• Packaging Machinery: Integrates packaging lines with warehouse management systems for efficient material handling.

3. System Modernization & Legacy Integration

• Legacy PROFIBUS Upgrade: Migrates older PROFIBUS DP networks to modern ABB DCS systems while preserving existing field devices.
• S800 I/O Expansion: Adds PROFIBUS connectivity to existing S800 I/O systems, enabling integration with larger control architectures.
• Multi-Vendor System Integration: Bridges communication between ABB control systems and third-party PROFIBUS devices.
• Retrofit Projects: Upgrades older industrial facilities with modern communication capabilities while preserving existing hardware investments.
• Hybrid System Architecture: Enables coexistence of legacy fieldbus and modern Ethernet networks in the same facility.

4. Critical Infrastructure & Utilities

• District Heating & Cooling: Monitors and controls energy distribution networks for residential and commercial complexes.
• Pharmaceutical Manufacturing: Supports precise process control in regulated environments, ensuring deterministic communication for batch processing.
• Mining Operations: Provides reliable communication in harsh mining environments for equipment control and safety systems.
• Data Center Infrastructure: Connects power distribution units, cooling systems, and environmental monitors in data centers.
• Transportation Systems: Controls traffic management, railway signaling, and airport baggage handling systems.

5. Marine & Offshore Applications

• Ship Automation: Ensures reliable communication on vessels for navigation, propulsion, and cargo handling systems.
• Offshore Platforms: Integrates control systems for drilling, production, and safety equipment in offshore oil and gas facilities.
• Port Automation: Connects container cranes, terminal operating systems, and logistics equipment in seaports.
• Subsea Control Systems: Provides communication for subsea production equipment and remote monitoring systems.
