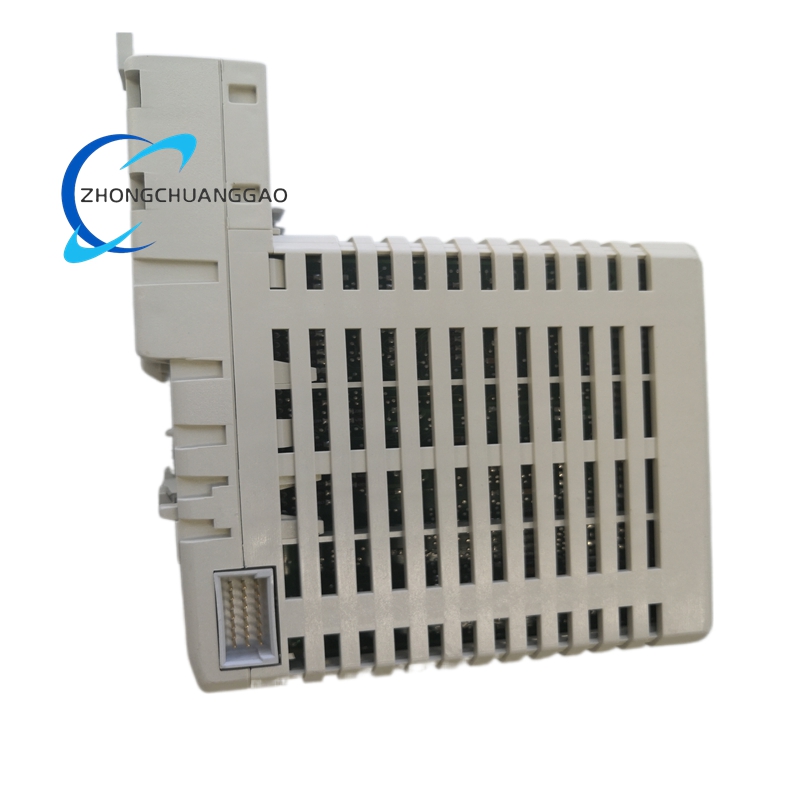

ABB CI810V1 Digital Input Interface Module

Description

Technical Specifications

• Module Type: Digital Input Interface Module
• Compatible System: ABB S800 I/O System, ABB 800xA DCS
• Input Channels: 32 digital input channels, galvanically isolated into two independent groups of 16 channels
• Input Voltage Rating: 24 V DC
• Input Current: Maximum 10 mA per channel
• Response Time: 1 ms (fast signal acquisition for high-speed process monitoring)
• Isolation Voltage: Galvanic isolation between field circuits and internal electronics (2500 V AC)
• Power Supply: 24 V DC (supplied via the S800 I/O backplane or external source)
• Power Consumption: Maximum 7 W
• Mounting: Standard DIN rail mounting
• Dimensions: 102 mm (W) x 119 mm (H) x 45 mm (D)
• Weight: Approximately 0.2 kg
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Protection Rating: IP20 (enclosure)
• Environmental Rating: Industrial pollution degree 2
• EMC Compliance: IEC 61000-6-2, IEC 61000-6-4
• Certifications: CE, UL, ATEX for hazardous area operations
• Diagnostics: Built-in channel-level diagnostic monitoring
• Status Indicators: LED indicators for power, communication, channel activity, and fault conditions

Functional Features

1. High-Density Signal Acquisition
   • Provides 32 digital input channels in a compact form factor, optimizing cabinet space utilization.
   • Channels are organized into two isolated 16-channel groups to enhance signal integrity and reduce interference.
   • Supports fast 1 ms response time for capturing rapid digital state changes in critical processes.
   • Accommodates both sourcing and sinking type 24 V DC field sensors and switches.
2. Superior Signal Isolation & Protection
   • Delivers 2500 V AC galvanic isolation between field inputs and system electronics to prevent electrical disturbances.
   • Protects against overvoltage, short circuits, and reverse polarity on field wiring.
   • Reduces ground loop potential and electromagnetic interference (EMI) in industrial environments.
   • Ensures stable signal reading even in electrically noisy plant conditions.
3. Seamless System Integration
   • Fully compatible with the ABB S800 I/O system and 800xA DCS platform.
   • Connects directly to the S800 I/O ModuleBus for communication with the controller.
   • Supports hot-swapping for module replacement without shutting down the entire system.
   • Integrates with ABB system engineering tools for straightforward configuration and commissioning.
4. Advanced Diagnostic Capabilities
   • Features individual LED indicators for each channel to display real-time signal status.
   • Provides comprehensive self-diagnostics for module health, communication, and field wiring faults.
   • Generates real-time fault codes and alarm messages for rapid troubleshooting.
   • Supports remote diagnostic monitoring via the 800xA system for predictive maintenance.
5. Robust Industrial Design
   • Constructed with industrial-grade materials to withstand extreme temperatures and vibration.
   • Designed for continuous 24/7 operation in harsh industrial environments.
   • Complies with strict EMC standards for immunity to electrical interference.
   • Meets hazardous area certifications for use in potentially explosive atmospheres.
6. Flexible Configuration & Installation
   • Supports DIN rail mounting for standard industrial cabinet installation.
   • Allows easy wiring via terminal blocks for field signal connections.
   • Enables flexible grouping and configuration of input channels via system software.
   • Supports vertical or horizontal mounting orientations for installation versatility.
7. Reliable Signal Management
   • Features high input impedance to minimize signal loading on field devices.
   • Provides stable signal filtering to eliminate transient noise and ensure accurate state detection.
   • Supports common or grouped signal return configurations for field wiring flexibility.
   • Ensures consistent and reliable digital signal acquisition across extended operating periods.

Application Scenarios

• Oil & Gas: Offshore platforms, refineries, pipeline monitoring, wellhead control, and safety systems.
• Petrochemical & Chemical: Process plant monitoring, valve position feedback, pump status, and emergency shutdown (ESD) systems.
• Power Generation: Thermal power plants, renewable energy facilities, turbine control, and switchgear status monitoring.
• Water & Wastewater: Pump station status, filter plant monitoring, valve control, and distribution network automation.
• Metals & Mining: Smelter operations, conveyor systems, crusher status, and material handling automation.
• Pharmaceuticals & Food & Beverage: Batch process monitoring, equipment status, cleanroom automation, and safety interlocks.
• Cement & Building Materials: Kiln monitoring, raw material handling, production line status, and quality control.
• Marine & Offshore: Vessel automation, engine monitoring, deck machinery status, and safety systems.
• Pulp & Paper: Production line monitoring, drive status, dryer section control, and process interlocks.

Key Advantages

• High Channel Density: Maximizes I/O capacity with 32 channels in a compact module.
• Signal Integrity: Advanced isolation and filtering ensure accurate, noise-free signal acquisition.
• Operational Reliability: Industrial-grade design and certifications ensure minimal downtime.
• Easy Maintenance: Hot-swappable design and comprehensive diagnostics reduce service time.
• System Compatibility: Seamless integration with ABB 800xA and S800 I/O systems.
• Installation Flexibility: DIN rail mounting and versatile wiring options simplify deployment.
• Cost Efficiency: Optimizes space usage and reduces wiring costs in industrial control cabinets.
