Product Short Description
Product Introduction

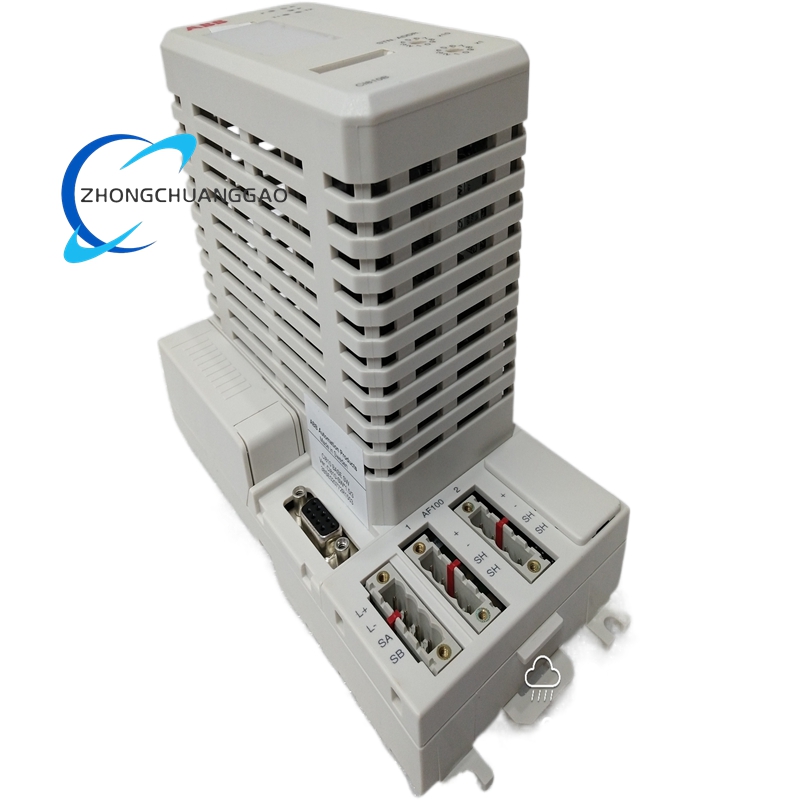

The ABB CI810B is a high-performance, dedicated fieldbus communication interface module engineered for the ABB AC 800M controller and ABB System 800xA distributed control system (DCS). It serves as a critical communication gateway, enabling reliable, high-speed data exchange between the central control system and remote field devices via the AF100 fieldbus protocol. Designed for industrial-grade reliability, this module facilitates seamless integration of distributed I/O systems, remote controllers, and field instrumentation, supporting scalable, fault-tolerant automation architectures for mission-critical process applications.
Description
Technical Specifications
- Product Type: AF100 Fieldbus Communication Interface Module
- Compatible Systems: ABB AC 800M Controller, ABB System 800xA DCS, S800 I/O Series
- Communication Protocol: AF100 Fieldbus (Twisted Pair)
- Number of Ports: 2 x AF100 Twisted Pair (TP) Modem Ports
- Maximum Data Transfer Rate: Up to 2 Mbps
- Power Supply: 24 V DC (Supplied via S800 I/O Backplane)
- Power Consumption: Max. 1.5 W
- Physical Dimensions (W x H x D): 45 mm x 132 mm x 127 mm
- Net Weight: Approx. 0.5 kg
- Operating Temperature: -25 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% – 95% RH (non-condensing)
- Isolation: Galvanic Isolation (500V AC field-to-system)
- Mounting: DIN Rail Mounting / Direct insertion into S800 I/O Subrack
- Compatible Base Units: TU810, TU812, TU830, TU833
- LED Indicators: Power, Module Status, Communication Status, Fault Diagnostics
- Certifications: CE, UL, CSA, ATEX Zone 2
- Protection Class: IP20
Key Features & Benefits
- Dual-Channel AF100 Communication
- Equipped with two independent AF100 twisted-pair modem ports for redundant network topology or dual network segments.
- Supports long-distance communication between the controller and remote I/O stations, extending system reach across large facilities.
- Ensures deterministic, real-time data transmission for critical process variables, alarms, and control signals.
- Redundancy & High Availability
- Fully supports redundant controller and fieldbus configurations to eliminate single points of failure.
- Automatic failover between primary and backup communication channels ensures uninterrupted operation during hardware faults.
- Hot-swappable design allows for module replacement under power without shutting down the entire control system.
- Seamless S800 I/O Integration
- Directly interfaces with ABB S800 I/O modules via the ModuleBus, enabling centralized control of distributed field devices.
- Plug-and-play compatibility with standard S800 I/O subracks and base units simplifies installation and system expansion.
- Includes TB807 ModuleBus Terminator for proper bus signal termination and optimal communication performance.
- Advanced Diagnostics & Status Monitoring
- Integrated LED indicators provide real-time visibility of power, communication activity, and fault conditions.
- Comprehensive built-in diagnostic functions support system-level monitoring, error logging, and alarm notification.
- Facilitates rapid troubleshooting and predictive maintenance, reducing system downtime and operational risks.
- Industrial-Grade Robustness
- Galvanic isolation protects against electrical noise, ground loops, and voltage transients in harsh industrial environments.
- Operates reliably across an extended temperature range and withstands high levels of vibration and shock.
- Conforms to international safety and EMC standards for deployment in hazardous and demanding industrial locations.
- Scalable & Flexible Architecture
- Supports large-scale distributed control systems with multiple remote I/O nodes.
- Enables flexible network topologies, including line, star, and ring configurations.
- Simplifies system design and reduces cabling costs by connecting remote field equipment directly to the AF100 network.
Application Scenarios
The ABB CI810B AF100 Communication Interface Module is widely deployed in large-scale process automation systems requiring robust, distributed fieldbus connectivity:
- Oil & Gas Exploration & Production
- Connects remote wellhead control modules and onshore/offshore production platforms to central control systems.
- Supports reliable monitoring and control of pipelines, separators, and pumping systems across extensive geographic areas.
- Refining & Petrochemical Processing
- Integrates distributed I/O and safety systems for complex refining processes, distillation columns, and chemical reactors.
- Ensures fault-tolerant communication for critical control loops and emergency shutdown systems.
- Power Generation (Thermal, Combined-Cycle)
- Links boiler, turbine, and generator control systems with auxiliary plant equipment.
- Facilitates reliable data acquisition and control for emissions monitoring, turbine protection, and plant safety systems.
- Metals & Mining
- Manages communication with remote crushing, grinding, and smelting operations in harsh mining environments.
- Supports high-vibration and high-dust conditions with robust communication and isolation.
- Pulp & Paper Manufacturing
- Connects control systems to paper machines, drying processes, and raw material handling lines.
- Ensures stable communication for continuous production monitoring and precise process control.
- Water & Wastewater Infrastructure
- Controls geographically dispersed pump stations, water treatment plants, and distribution networks.
- Enables reliable SCADA integration for municipal water management and critical utility services.
- Marine & Offshore Applications
- Used in dynamic positioning, propulsion control, and onboard utility systems for vessels and offshore rigs.
- Withstands marine conditions including salt spray, high humidity, and mechanical vibration.
