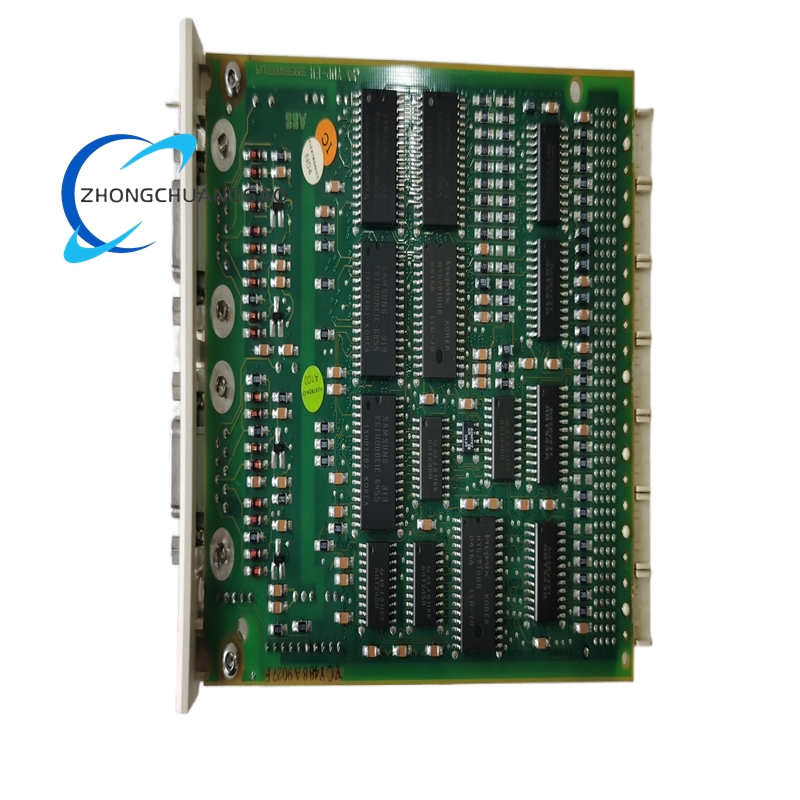

ABB CI541V1 PROFIBUS DP Communication Interface Module

Description

Technical Specifications

• Communication Protocol: PROFIBUS DP V0, V1, and V2
• Operating Modes: PROFIBUS DP Master and Slave
• Data Transfer Rate: 9.6 kbps to 12 Mbps (auto-negotiation supported)
• Interface: 9-pin D-sub male connector for PROFIBUS connection
• Isolation: Galvanic isolation between PROFIBUS network and control system
• Supply Voltage: 24 V DC (-15%, +20%), reverse polarity protection
• Power Consumption: Typical 5 W, Maximum 8 W
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Protection Class: IP20 (for cabinet installation)
• Dimensions: 255 mm (L) × 125 mm (W) × 20 mm (H)
• Net Weight: 0.17 kg
• Mounting: 35 mm DIN rail mounting (EN 50022)
• Diagnostics: LED status indicators and detailed diagnostic data registers
• Certifications: CE, UL, CSA, IEC 61131-2
• Hot-Swappable: Module replacement without system shutdown
• Firmware: Field-upgradable via ABB configuration tools

Functional Features

• Dual Mode Operation: Supports both PROFIBUS DP Master and Slave roles, offering flexibility for diverse network architectures.
• High-Speed Communication: Delivers data rates up to 12 Mbps, ensuring low-latency, real-time data exchange for precision control applications.
• Comprehensive Protocol Support: Fully compatible with PROFIBUS DP V0, V1, and V2 standards, enabling connectivity with a wide range of PROFIBUS devices.
• Galvanic Isolation: Provides electrical isolation to protect the control system from ground loops, electrical noise, and voltage transients on the PROFIBUS network.
• Advanced Diagnostics: Features dedicated LED indicators for power, communication status, and fault detection, alongside detailed diagnostic data for quick troubleshooting.
• Hot-Swappable Design: Allows for module replacement during system operation, minimizing downtime and simplifying maintenance.
• Robust Industrial Design: Engineered to withstand extreme temperatures, high humidity, and electrical interference, ensuring reliable performance in demanding industrial environments.
• Seamless Integration: Native compatibility with ABB AC800M controllers and System 800xA, with easy configuration via ABB Control Builder M software.
• Field-Upgradable Firmware: Supports firmware updates to incorporate new features and protocol enhancements without hardware replacement.
• Compact Form Factor: Space-saving design optimizes cabinet space utilization in control systems.

Application Scenarios

• Process Industries (Oil & Gas, Chemicals): Connects controllers to PROFIBUS-based field instruments for reactor control, safety systems, and distributed I/O in refineries and chemical plants.
• Power Generation & Distribution: Integrates with turbine control systems, switchgear, and SCADA networks in thermal, hydro, and renewable power plants.
• Water & Wastewater Treatment: Facilitates communication with pump stations, filter systems, and process analyzers for efficient water management.
• Manufacturing & Automotive: Enables high-speed communication between PLCs and robotic cells, assembly lines, and packaging machinery.
• Metals & Mining: Provides reliable connectivity for conveyors, crushers, and processing equipment in harsh mining and metal production environments.
• Pharmaceutical & Food Processing: Ensures precise control and data acquisition for batch manufacturing and sterile production lines.
• Building Automation: Connects HVAC, lighting, and security systems to central control platforms for smart building management.
• Marine & Offshore: Supports communication for shipboard automation and offshore platform control systems in marine environments.
• Cement & Building Materials: Integrates with kiln control, raw material handling, and packaging systems in cement production facilities.
