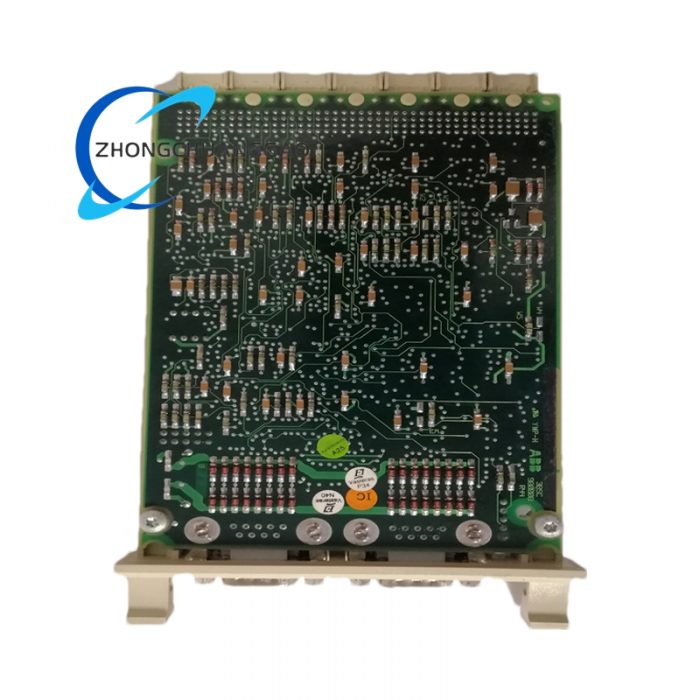

ABB CI534V02 3BSE010700R1 Communication Interface Module

Description

• Status Indicators:
  • LEDs for module status, communication activity, and error alerts.
• Power Supply:
  • 24 V DC (sourced from controller backplane or external supply).
• Power Consumption:
  • Approximately 5 W (typical).
• Operating Temperature:
  • -20°C to +60°C (industrial-grade).
• Enclosure:
  • IP20-rated housing for rack-mounted installation.
• Dimensions:
  • 192 mm (L) × 64 mm (W) × 35 mm (H).
• Weight:
  • 0.5 kg.

Functional Characteristics:

• Multi-Protocol Support: Enables integration with diverse field devices and control systems using PROFIBUS and Modbus RTU.
• High-Speed Communication: Ensures fast and reliable data transfer for real-time control applications.
• Scalability: Connects up to 125 PROFIBUS devices or 32 Modbus RTU devices, accommodating both small and large networks.
• Redundancy Ready: Configurable for redundant operation (dual-channel hot standby) to enhance system reliability.
• Easy Configuration: Software-configurable via ABB Control Builder M or System 800xA tools for parameter settings and network setup.
• Diagnostic Capabilities: Real-time monitoring of communication status, error detection, and performance logging for proactive maintenance.
• Flexible Mounting: Rack-mounted design for easy integration into control panels or enclosures.

Application Scenarios:

• Industrial Automation: Controls and monitors motors, drives, and sensors in manufacturing plants.
• Process Control: Regulates valves, pumps, and analyzers in chemical, petrochemical, and oil/gas industries.
• Power Generation: Manages equipment in power plants, substations, and renewable energy systems.
• Water and Wastewater: Monitors and controls pumps, filters, and chemical dosing systems.
• Building Automation: Controls HVAC, lighting, and security systems in commercial buildings.
• Transportation: Supports signaling and control systems in railways, airports, and traffic management.
• Food and Beverage: Manages processing lines, packaging machines, and quality monitoring systems.
• Mining: Powers conveyors, crushers, and ventilation systems in underground and surface mines.

Key Advantages:

• Reliability: Industrial-grade design withstands harsh environments and ensures continuous operation.
• Performance: High-speed data transfer and low latency for real-time control applications.
• Flexibility: Supports multiple protocols and device types for versatile integration.
• Ease of Use: Intuitive configuration tools and diagnostic features simplify setup and maintenance.
• Scalability: Adaptable to various system sizes, from small-scale installations to large industrial networks.
• Global Support: ABB provides worldwide service, lifecycle management, and application expertise.
