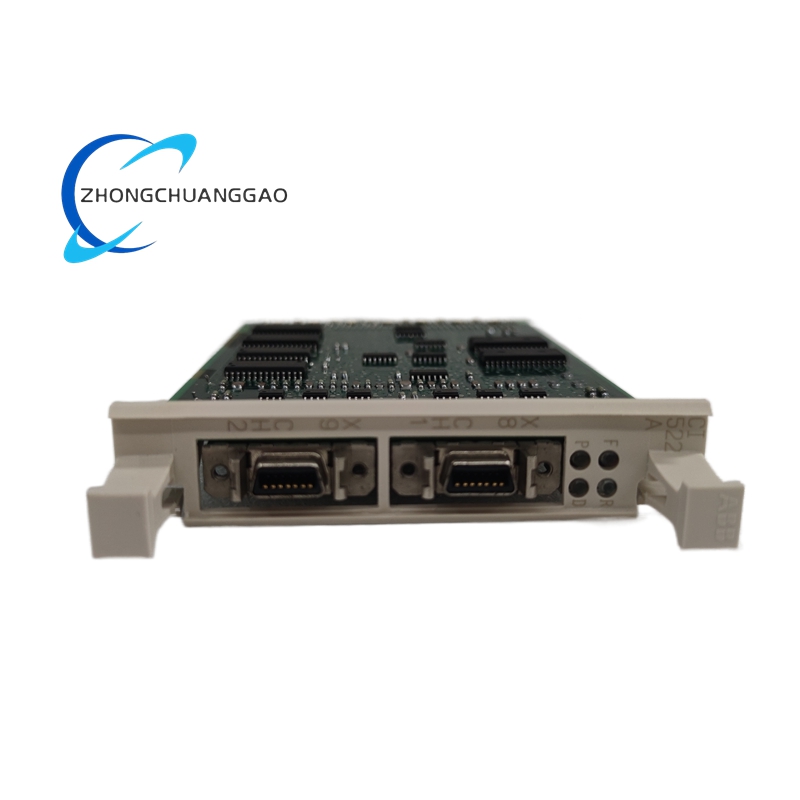

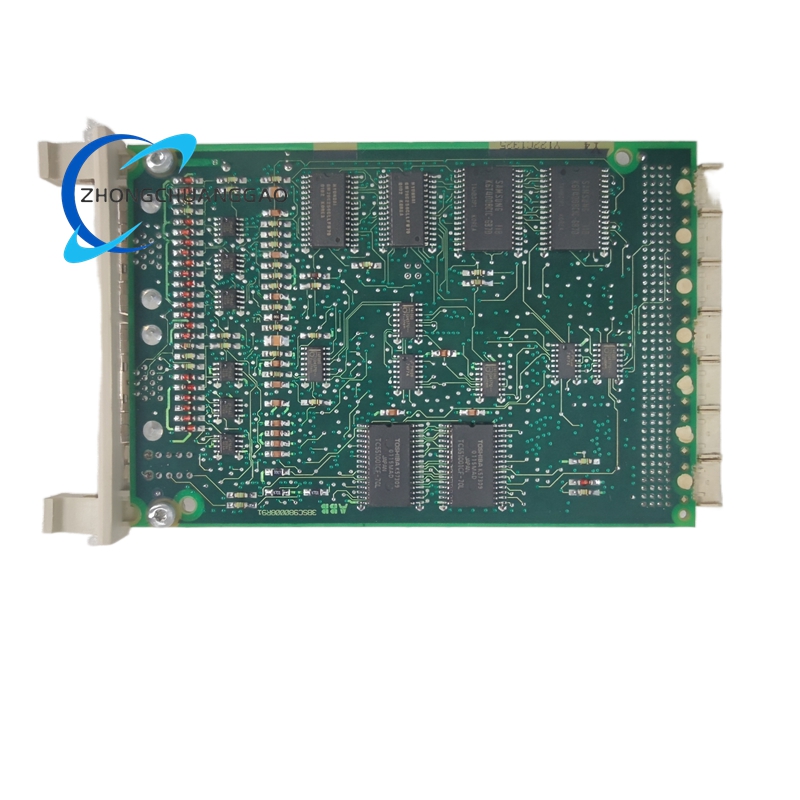

The ABB CI522AK04 3BSE018451R1 is a complete industrial communication interface kit designed to establish reliable, high-speed data exchange between ABB control systems and devices operating on the AF100 (Advant Fieldbus 100) protocol. This kit integrates the core CI522A AF100 interface module, a dedicated RS485 twisted-pair modem, and a pre-assembled communication cable, providing a plug-and-play solution for seamless integration into ABB’s AC800M controllers, Advant Master DCS, and System 800xA platforms. Engineered for demanding industrial environments, it ensures deterministic communication, robust diagnostics, and long-term operational stability, serving as a critical link for process control, data acquisition, and distributed I/O connectivity.
Description
Technical Specifications
Kit Components
- CI522A AF100 Interface Module (3BSE018283R1): Core communication moduleABB
- TC512V1 RS485 Twisted Pair Modem (3BSE018059R1): Signal conversion and line drivingABB
- TK803V018 Cable Assembly (3BSC950130R1): Pre-terminated communication cableABB
Module (CI522A) Core Specifications
- Communication Protocol: AF100 (Advant Fieldbus 100)
- Data Transfer Rate: 9.6 kbps to 1.5 Mbps (configurable)
- Interface Type: RS485 twisted-pair, galvanically isolated
- Isolation Voltage: 1500 V AC (between communication and system sides)
- Supply Voltage: 24 V DC (-15%, +20%), reverse polarity protection
- Power Consumption: Max. 6 W (typical 5 W)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Protection Class: IP20 (for cabinet installation)
- Dimensions (CI522A): 265 mm (L) × 120 mm (W) × 27 mm (H)
- Net Weight (Kit): Approx. 1.07 kg
- Mounting: 35 mm DIN rail mounting
- Certifications: CE, UL, CSA, IEC 61131-2
- Network Topology: Supports daisy-chain and star configurations
- Maximum Cable Length: Up to 100 meters (per segment)
- Hot-Swappable: Module replacement without system shutdown
- Firmware: Field-upgradable for feature enhancements
Functional Features
- Complete Communication Kit: Pre-integrated module, modem, and cable for immediate deployment, eliminating compatibility issuesABB.
- Deterministic AF100 Communication: Delivers real-time, low-latency data transmission critical for precision process control applications.
- Galvanic Isolation: 1500 V AC isolation protects the control system from electrical noise, ground loops, and voltage transients on the fieldbus.
- Robust Signal Integrity: TC512V1 modem ensures reliable signal transmission over long distances and in high-electromagnetic-interference environmentsABB.
- Comprehensive Diagnostics: Built-in LED indicators and system diagnostic registers for real-time monitoring of communication status, errors, and module health.
- Flexible Configuration: Software-configurable baud rates and network parameters via ABB Control Builder M or Automation Builder software.
- Hot-Swappable Design: Allows module replacement during operation, minimizing system downtime and maintenance costs.
- Wide Environmental Tolerance: Operates reliably in extreme temperatures and high-humidity industrial settings.
- Seamless System Integration: Native compatibility with ABB AC800M, Advant Master, and System 800xA control systems for plug-and-play connectivity.
- Field-Upgradable Firmware: Supports future protocol updates and feature additions without hardware replacement.
- EMC Compliance: Meets strict industrial electromagnetic compatibility standards for stable operation in electrically noisy environments.
Application Scenarios
- Process Industries (Oil & Gas, Chemicals): Communication interface for reactor control, safety instrumented systems (SIS), and distributed I/O in refineries and chemical plants.
- Power Generation: Turbine control, boiler management, and power distribution systems in thermal, hydro, and renewable power plants.
- Water & Wastewater Treatment: Pump station control, filter systems, and SCADA integration for municipal and industrial water management.
- Metals & Mining: Conveyor control, crushing, and mineral processing systems in harsh mining and metal production environments.
- Pharmaceutical & Food Processing: Clean process control, batch manufacturing, and regulatory-compliant data acquisition in sterile production facilities.
- Manufacturing & Assembly: Machine control, robotic integration, and production line automation in automotive, electronics, and general manufacturing.
- Marine & Offshore: Shipboard automation, offshore platform control, and subsea equipment monitoring in marine environments.
- Building Automation: HVAC, fire safety, and energy management systems in large commercial and industrial buildings.
- Pulp & Paper: Process control for paper machines, drying systems, and raw material handling in pulp and paper mills.
- Cement & Building Materials: Kiln control, raw material blending, and packaging line automation in cement production facilities.
