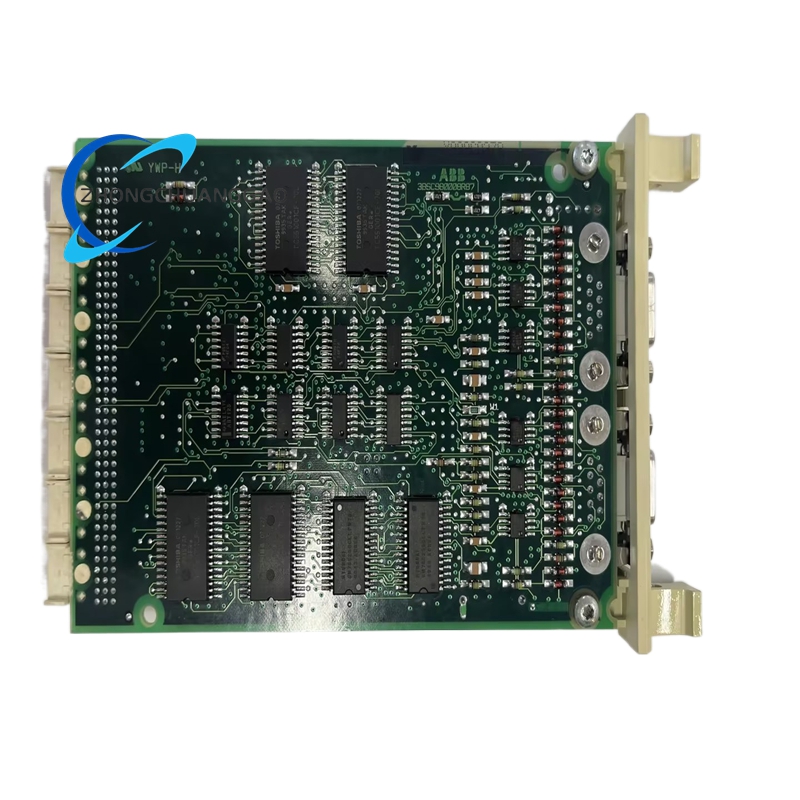

ABB CI520V1 3BSE012869R1 AF100 Communication Interface Module

Description

Technical Specifications

Core Communication Parameters

• Product Type: Fieldbus Communication Interface Module
• Supported Protocol: Advant Fieldbus 100 (AF100)
• Physical Interface: D-sub 9-pin connector (standard for AF100 fieldbus)
• Communication Redundancy: Dual redundant communication ports for high availability
• Galvanic Isolation: 2500 V AC isolation between bus and internal logic
• Data Transfer Rate: Compliant with AF100 standard baud rates for real-time process data
• Bus Topology Support: Multi-drop, daisy-chain, and star topologies for flexible network design
• Node Capacity: Supports connection of multiple field devices and I/O modules on a single bus

Power & Electrical Specifications

• Supply Voltage: 24 V DC (±10%)
• Power Consumption: Low-power design optimized for control cabinet operation
• Isolation Voltage: 2500 V AC (bus-side to logic-side)
• Input Protection: Overvoltage and reverse polarity protection on power input

Physical & Environmental Specifications

• Dimensions: 265 mm (L) × 27 mm (W) × 120 mm (H)
• Net Weight: 0.145 kg
• Mounting: Standard 35 mm DIN-rail mounting (EN 60715)
• Enclosure Rating: IP20 (suitable for indoor, cabinet-mounted installation)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms)
• Material: Flame-retardant thermoplastic (UL 94 V-0)

Compliance & Certifications

• Standards: IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission)
• Safety: EN 61010-1 (safety requirements for electrical equipment)
• Certifications: CE, UL, CSA (for global industrial deployment)
• RoHS Compliance: Fully compliant with EU RoHS 2 directive

Functional Features

1. High-Reliability AF100 Communication

• Redundant Bus Operation: Dual independent communication channels enable automatic failover, eliminating single points of failure and ensuring continuous data transmission.
• Galvanic Isolation: Complete electrical isolation between the fieldbus and the control system protects against ground loops, electrical noise, and transient voltage spikes.
• Real-Time Data Handling: Optimized for deterministic, low-latency communication of process variables, control signals, and diagnostic data in time-critical automation applications.
• Error Detection & Correction: Built-in cyclic redundancy check (CRC) and data validation ensure data integrity across the communication link.

2. Seamless System Integration

• Native ABB System Compatibility: Directly integrates with ABB Advant OCS, AC800M, and 800xA distributed control systems without additional gateways.
• Hot-Swappable Design: Allows module replacement during system operation, minimizing downtime and simplifying maintenance procedures.
• Plug-and-Play Configuration: Auto-detection and configuration of connected field devices reduce commissioning time and effort.
• Multi-Node Support: Enables connection of numerous I/O modules, field instruments, and third-party devices on a single AF100 network segment.

3. Advanced Diagnostics & Monitoring

• Real-Time Status Indicators: LED indicators provide immediate visual feedback on communication status, power, and fault conditions.
• Comprehensive Fault Diagnostics: Detailed error reporting and logging for quick identification and resolution of communication issues.
• Network Health Monitoring: Continuous monitoring of bus performance, signal quality, and node connectivity for proactive maintenance.
• Remote Diagnostics: Supports remote access to module status and diagnostic data via the host control system.

4. Robust Industrial Design

• Wide Temperature Tolerance: Operates reliably in extreme industrial environments with temperature fluctuations.
• EMC Resilience: Superior electromagnetic compatibility ensures stable performance in electrically noisy industrial settings.
• Compact Form Factor: Space-saving design optimizes control cabinet space utilization.
• Long Service Life: Industrial-grade components and construction ensure high MTBF (Mean Time Between Failures).

5. Flexible Network Configuration

• Topology Flexibility: Supports multiple network topologies to adapt to various plant layouts and system architectures.
• Scalable Architecture: Easily expandable to accommodate additional nodes and devices as system requirements grow.
• Bus Termination: Built-in or external bus termination options for optimal signal integrity.
• Mixed Device Integration: Compatible with a wide range of ABB and third-party AF100-compliant field devices.

Application Scenarios

1. Process Automation & DCS Systems

• Oil & Gas Production: Controls and monitors drilling, extraction, and refining processes with reliable communication between distributed I/O and central controllers.
• Petrochemical Plants: Manages complex chemical processes, ensuring safe and efficient operation of reactors, distillation columns, and storage systems.
• Power Generation: Integrates with boiler, turbine, and generator control systems in thermal, hydro, and combined-cycle power plants.
• Water & Wastewater Treatment: Facilitates communication between PLCs, SCADA systems, and field instruments for water purification and distribution networks.
• Pharmaceutical Manufacturing: Supports precise process control and data acquisition in regulated pharmaceutical production environments.

2. Manufacturing & Industrial Automation

• Food & Beverage Processing: Enables real-time control of mixing, packaging, and bottling lines with high-speed data exchange.
• Pulp & Paper Mills: Manages continuous production processes, coordinating control between various stages of paper manufacturing.
• Metal Processing: Controls rolling mills, furnaces, and material handling systems in steel and aluminum production facilities.
• Automotive Assembly: Integrates with robotic assembly lines and conveyor systems for efficient vehicle production.
• General Manufacturing: Provides reliable communication in discrete manufacturing processes, including machine tools and assembly lines.

3. Infrastructure & Utilities

• District Heating & Cooling: Monitors and controls energy distribution networks for commercial and residential buildings.
• Smart Grid Systems: Facilitates data exchange between utility control centers and distributed energy resources.
• Mining Operations: Supports communication in harsh mining environments for equipment control and safety systems.
• Marine & Offshore: Ensures reliable communication on ships and offshore platforms for navigation and process control.
• Building Automation: Integrates with HVAC, lighting, and security systems in large commercial buildings.

4. System Retrofit & Modernization

• Legacy System Upgrade: Serves as a critical component in upgrading older Advant OCS systems to integrate with newer ABB control platforms.
• Multi-Vendor Integration: Bridges communication between ABB control systems and third-party field devices in heterogeneous automation environments.
• Control System Expansion: Provides additional communication ports for expanding existing DCS or PLC systems with new I/O and field devices.
