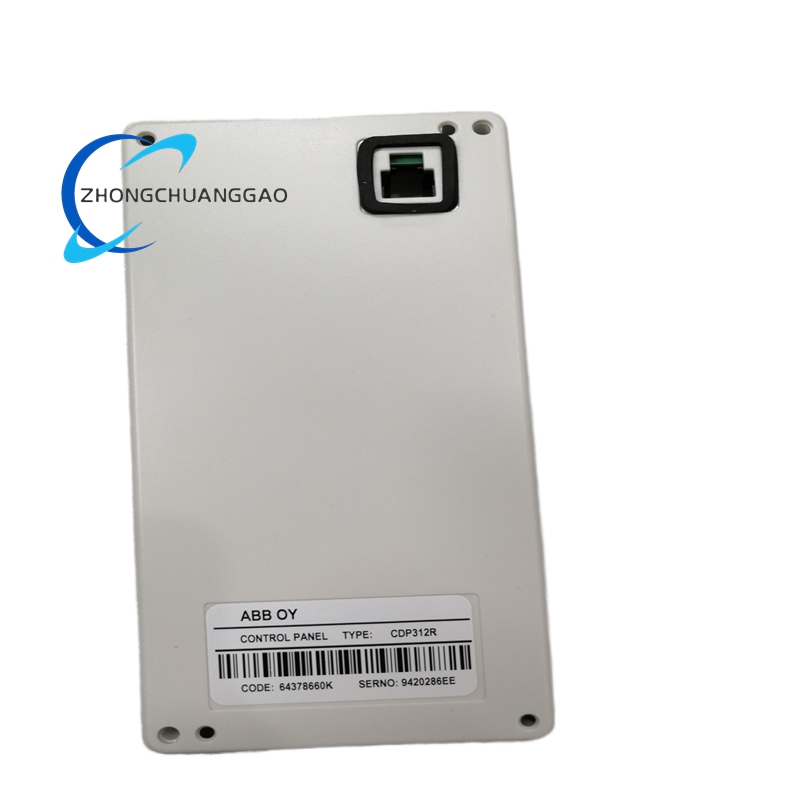

ABB CDP312R 64378660G Industrial Drive Control Panel

Description

Technical Specifications

• Product Type: Industrial Drive Operator Control Panel
• Order Code: 64378660G
• Compatible Drive Series: ABB ACS550, ACS580, ACS800, ACS850, ACS880, ACSM1, DCS500 series drives
• Display: 4-line x 20-character backlit LCD screen, supports multi-language text display
• Communication Interface: RS485 (Modbus RTU protocol), direct drive bus connection
• Power Supply: 24 V DC, powered directly by the connected drive (no external power required)
• Power Consumption: Maximum 250 mA (typical, without expansion modules)
• Dimensions: Standard compact form factor, designed for front-panel or door-mount installation
• Weight: Approximately 0.35 kg to 0.5 kg
• Operating Temperature: -10 °C to +50 °C
• Storage Temperature: -25 °C to +70 °C
• Relative Humidity: 5% to 95% non-condensing
• Protection Rating: IP65 (front panel), IP20 (rear connection side)
• Ingress Protection: Resistant to dust, water splashes, and industrial contaminants
• Key Durability: Mechanical keypad with operational life of ≥1,000,000 actuations
• EMC Compliance: IEC 61000-6-2, IEC 61000-6-4, EN 50081-2, EN 50082-2
• Environmental Rating: Industrial pollution degree 2
• Certifications: CE, UL certified for global industrial applications

Functional Features

1. Intuitive Human-Machine Interface
   • Features a backlit 4×20 character LCD for clear readability in low-light industrial environments.
   • Equipped with a multi-function keypad including navigation keys, numeric keys, and dedicated function buttons (Start, Stop, Reset, Mode).
   • Supports full multi-language menus and parameter displays for global operational use.
   • Delivers straightforward menu navigation for quick access to all drive functions and settings.
2. Comprehensive Drive Control & Operation
   • Enables local manual control: start, stop, forward, reverse, and speed adjustment of connected drives.
   • Facilitates seamless switching between local (panel) and remote (automation system) control modes.
   • Provides one-touch fault reset and quick access to safety interlock functions.
   • Supports direct entry of parameter values and drive setpoints via the numeric keypad.
3. Real-Time Parameter Monitoring & Visualization
   • Displays critical operational data: output frequency, motor current, voltage, power, torque, speed, and energy consumption.
   • Shows real-time drive status, operational hours, and process variables.
   • Visualizes trend data and dynamic performance metrics for process optimization.
   • Features dedicated LED indicators for power, run status, warning, and fault conditions.
4. Advanced Parameter Configuration & Programming
   • Allows full access, editing, and saving of all drive configuration parameters.
   • Supports uploading and downloading of parameter sets between the panel and drive for fast commissioning and duplication.
   • Enables creation and storage of user-defined parameter groups and application-specific profiles.
   • Provides password protection for critical parameters to prevent unauthorized changes.
5. Integrated Diagnostic & Troubleshooting Tools
   • Delivers detailed, real-time fault codes, alarm messages, and historical event logging.
   • Displays comprehensive diagnostic data including drive temperature, I/O status, and communication health.
   • Assists with root-cause analysis through timestamped fault history and operational statistics.
   • Supports quick troubleshooting with direct access to fault-reset and system-test functions.
6. Robust Industrial Design & Durability
   • Constructed with high-strength industrial-grade plastics (ABS/PC) for impact and vibration resistance.
   • Front panel sealed to IP65 for protection against dust, oil, water, and chemical splashes.
   • Designed for continuous operation in harsh industrial environments with wide temperature tolerance.
   • Supports hot-plugging for installation, removal, or replacement without powering down the drive system.
7. Flexible Mounting & Connectivity
   • Supports front-of-cabinet mounting or door-mount installation for operator accessibility.
   • Uses a reliable RS485 serial connection for direct, interference-free communication with the drive.
   • Compatible with standard connection cables for extended remote mounting (up to specified distance limits).
   • Fully backward-compatible with legacy ABB CDP312 control panels for straightforward system upgrades.

Application Scenarios

• Water & Wastewater Treatment: Pump speed control, filter press systems, aeration blower control, and wastewater processing drives.
• Oil & Gas: Pipeline pump drives, compressor control, loading/unloading systems, and refinery process drives.
• Power Generation: Fan and pump control in power plants, emissions control systems, and turbine auxiliary drives.
• Manufacturing & Assembly: Conveyor systems, material handling equipment, packaging machines, and production line drives.
• Metals & Mining: Rolling mill drives, crushers, conveyors, and ore processing machinery.
• HVAC & Building Automation: Large-scale fan, pump, and chiller drives in commercial and industrial buildings.
• Food & Beverage: Processing lines, mixing equipment, packaging machines, and sanitary processing drives.
• Marine & Offshore: Ship propulsion aids, pump systems, winch control, and offshore processing drives.
• Textile & Paper: Spinning machines, calender drives, conveyor systems, and paper processing equipment.
• Chemical & Pharmaceutical: Mixers, reactors, dosing systems, and precision process drives.

Key Advantages

• Operational Efficiency: Streamlines drive setup, control, and maintenance to reduce downtime and optimize processes.
• User-Friendly Operation: Intuitive interface minimizes training requirements and operator errors.
• System Compatibility: Universal design integrates seamlessly with a comprehensive range of ABB industrial drive series.
• Industrial Reliability: Rugged construction and high ingress protection ensure consistent performance in harsh conditions.
• Diagnostic Precision: Advanced troubleshooting tools reduce service time and accelerate issue resolution.
• Flexibility: Supports both local and remote control modes, adapting to diverse operational workflows.
• Cost-Effectiveness: Low power consumption, long service life, and minimal maintenance reduce total operational costs.
