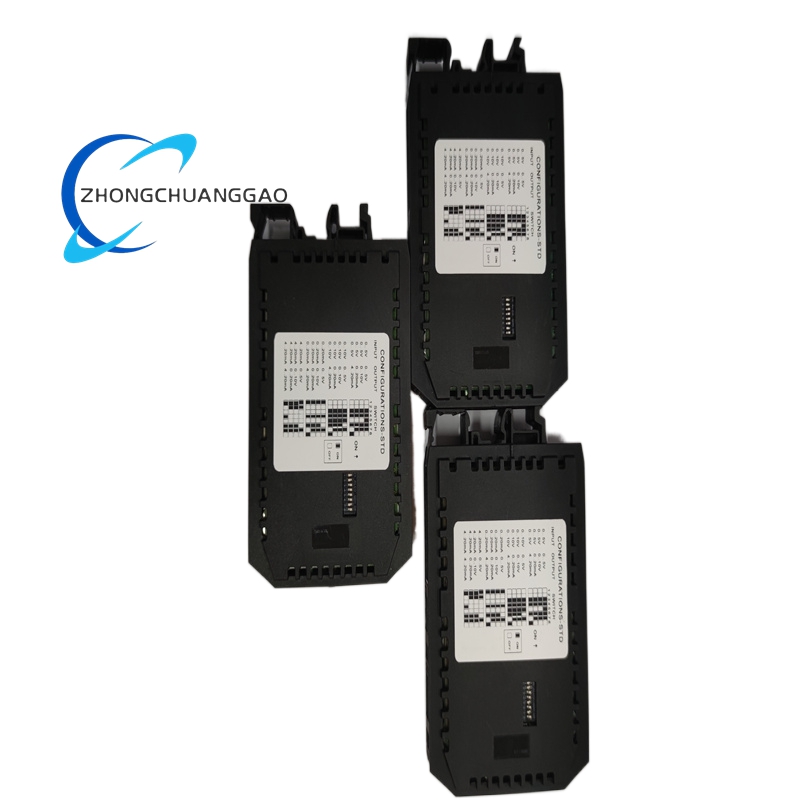

ABB CC‑E/STD 1SVR011700R0000 Universal Analog Signal Converter

Description

Technical Specifications

Core Electrical Parameters

• Supply Voltage: 24 VDC (nominal)ABB
• Number of Channels: 1 single‑channel
• Input Signal Ranges:
  • Voltage: 0–5 V, 0–10 V
  • Current: 0–20 mA, 4–20 mAABB
• Output Signal Ranges:
  • Voltage: 0–5 V, 0–10 V
  • Current: 0–20 mA, 4–20 mAABB
• Accuracy: ±0.5% of full scale
• Isolation Voltage: 3‑way electrical isolation (input‑output‑power supply)ABB
• Response Time: ≤ 10 ms
• Power Consumption: Max 1 W
• LED Indicator: Green LED for power supply statusABB

Physical & Environmental

• Dimensions: 75 mm (H) × 22.5 mm (W) × 107 mm (D)
• Weight: 0.1 kg
• Mounting: DIN‑rail mounting (standard industrial)
• Operating Temperature: -20 °C to +80 °C
• Storage Temperature: -40 °C to +85 °C
• Protection Class: IP20 (front)
• Certifications: CE, RoHS compliant
• Warranty: 12‑month manufacturer warranty

Configuration & Interface

• Configuration Method: Lateral DIP switches for input/output range selectionABB
• Calibration: Front‑panel potentiometers for gain and offset adjustmentABB
• Terminals: Screw terminals for secure field wiring
• Cable Compatibility: Suitable for shielded and unshielded industrial cables

Key Features

Universal Signal Compatibility

• Multi‑Range Support: Accepts and outputs all standard industrial analog signals (0–5 V, 0–10 V, 0–20 mA, 4–20 mA), ensuring compatibility with a vast array of field devicesABB.
• Bidirectional Conversion: Seamlessly converts between voltage and current signals, eliminating the need for separate converters for different signal types.
• Flexible Configuration: Input and output ranges are easily selectable via DIP switches, allowing quick adaptation to diverse system requirementsABB.

Superior Isolation & Noise Immunity

• 3‑Way Galvanic Isolation: Provides complete electrical separation between input, output, and power supply circuits, effectively blocking ground loops and electrical noiseABB.
• High Noise Rejection: Robust isolation design ensures accurate signal transmission even in electrically noisy industrial environments.
• Surge Protection: Built‑in protection against voltage spikes and transient disturbances safeguards connected equipment.

Precision & Calibration

• High Accuracy: Delivers ±0.5% full‑scale accuracy for precise signal conversion and measurement.
• Manual Calibration: Front‑panel potentiometers enable fine adjustment of gain and offset to compensate for system errors and ensure optimal performanceABB.
• Stable Performance: Maintains consistent accuracy across the full operating temperature range.

Easy Installation & Operation

• DIN‑Rail Mount: Compact, slim design fits standard DIN rails, optimizing space in control cabinets.
• Plug‑and‑Play Setup: Simple DIP switch configuration and screw terminals allow for quick installation and commissioningABB.
• Status Indication: Green power LED provides immediate visual confirmation of proper operationABB.
• Maintenance‑Free: Solid‑state design with no moving parts ensures long‑term reliability with minimal maintenance.

Application Scenarios

Industrial Process Control

• Chemical & Petrochemical: Signal conversion for pressure, temperature, and flow transmitters in refining and chemical processing plants.
• Pharmaceuticals: Precise signal conditioning for regulatory‑compliant process monitoring and control.
• Food & Beverage: Integration with sensors for temperature, level, and pressure in hygienic production environments.
• Water & Wastewater: Conversion of analog signals from pumps, valves, and level sensors in treatment facilities.

Manufacturing Automation

• Machine Tools: Signal interface for CNC machines, robotics, and automated assembly lines.
• Material Handling: Conditioning signals from position sensors and load cells in conveyor systems.
• Packaging Equipment: Precise control of packaging machines via converted analog signals from encoders and sensors.
• Metalworking: Integration with sensors for monitoring temperature, pressure, and speed in metal fabrication processes.

Power & Energy

• Power Generation: Signal conversion for generators, turbines, and auxiliary systems in power plants.
• Renewable Energy: Interfacing with solar inverters and wind turbine control systems.
• Grid Distribution: Conditioning analog signals for monitoring and control in electrical substations.

Building & Infrastructure

• HVAC Systems: Conversion of temperature and pressure signals for building management systems.
• Fire & Safety: Integration with gas detectors and pressure sensors in safety systems.
• Transportation: Signal conditioning for railway signaling, airport baggage handling, and traffic control systems.

Oil & Gas

• Upstream Operations: Signal conversion for wellhead monitoring and control systems.
• Midstream Pipelines: Conditioning signals from flow meters and pressure transmitters in pipeline networks.
• Downstream Refining: Integration with process sensors in refining and petrochemical facilities.
