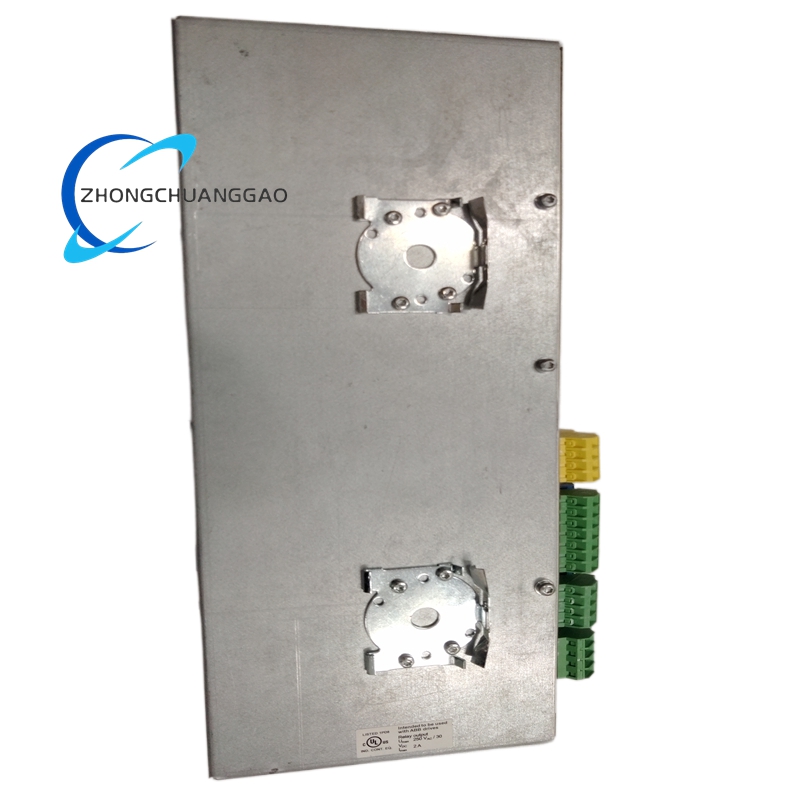

ABB BCU-02 3AUA0000110429 Control Unit

Description

Technical Specifications

• Module Type: Control unit for variable frequency drives
• Power Supply: 24 V DC (±10%), 2 A consumption
• Digital Inputs: 6 channels (DI1-DI6); Logic levels: “0” <5 V, “1” >15 V; NPN/PNP compatible
• Analog Inputs: 2 channels (AI1-AI2); Configurable -20 to 20 mA or -10 to 10 V; 11-bit + sign resolution
• Analog Outputs: 2 channels (AO1-AO2); 0 to 20 mA range; <500 Ω load capacity
• Relay Outputs: 3 channels (RO1-RO3); 250 V AC / 30 V DC, 2 A rating; varistor protected
• Communication Interfaces:
  • Ethernet: RJ-45 port for TCP/IP, Modbus TCP, Ethernet/IP
  • Fiber optic: 2 channels (V1, V2) for DDCS communication
  • RS-485: Drive-to-drive link (XD2D) for master/follower configuration
  • SDHC card slot: For data logging and parameter storage
• Safety Features: Safe Torque Off (STO) interface; compliant with SIL2 requirements
• Expansion Capability: 3 option slots for I/O extension, encoder interface, fieldbus adapters
• Processing Performance: 0.25 ms analog input sampling; high-speed PWM signal generation
• Environmental Ratings:
  • Operating temperature: -20°C to +60°C
  • Storage temperature: -40°C to +85°C
  • Humidity: 5-95% RH (non-condensing)
  • Protection: IP20
• Mechanical Characteristics:
  • Mounting: 35 mm DIN rail (horizontal/vertical)
  • Dimensions: 100 mm x 120 mm x 160 mm
  • Weight: Approximately 0.45 kg
• Certifications: CE, UL, cUL, RoHS, EMC compliant with IEC 61000-6-2/4

Key Functional Features

• Advanced Drive Control

  Implements high-performance vector control and direct torque control (DTC) algorithms for precise speed and torque regulation. Delivers exceptional dynamic response and motor control accuracy across wide speed ranges.
• Redundant Power Input

  Supports dual 24 V DC power inputs for redundant operation, ensuring uninterrupted functionality if one power source fails. Critical for continuous process applications.
• Comprehensive I/O Interface

  Provides versatile digital, analog, and relay I/O with configurable parameters. Hardware filtering (0.04 ms) and adjustable digital filtering (up to 8 ms) ensure signal stability in noisy industrial environments.
• Multi-Protocol Communication

  Native support for multiple industrial protocols including Ethernet/IP, Modbus TCP, PROFIBUS DP, and DDCS. Enables seamless integration with PLCs, SCADA systems, and other factory automation components.
• Integrated Safety Functions

  Features built-in Safe Torque Off (STO) capability that safely removes motor torque without removing power from the drive. Meets SIL2 safety standards for machine safety requirements.
• Data Logging & Diagnostics

  Integrated SDHC memory card slot stores real-time operating data, fault records, and event logs for comprehensive system analysis and troubleshooting.
• Flexible Expansion Options

  Three expansion slots accommodate various option modules including additional I/O, encoder interfaces (resolver, incremental, absolute), and fieldbus adapters for system customization.
• Parameter Retention

  Removable memory unit preserves all parameter settings during module replacement. Simplifies maintenance by allowing quick replacement without reconfiguration.
• Industrial Durability

  Conformal coated circuit boards provide protection against dust, moisture, and corrosive substances. Designed for continuous operation in harsh industrial environments with high vibration tolerance.

Application Scenarios

• ACS880 Drive Systems

  Serves as the primary control module for all ABB ACS880 series variable frequency drives, providing core control functionality for motor control applications.
• Manufacturing Automation

  Controls conveyor systems, machine tools, packaging equipment, and assembly lines requiring precise speed and torque regulation.
• Process Industries
  • Metals & Mining: Controls rolling mills, crushers, conveyors, and hoists
  • Oil & Gas: Manages pumps, compressors, and drilling equipment
  • Chemicals & Pharmaceuticals: Regulates mixers, reactors, and material handling systems
  • Pulp & Paper: Controls winders, calenders, and process linesABB Group
• Water & Wastewater

  Optimizes pump and fan operations in water treatment plants, sewage systems, and desalination facilities.
• Marine & Offshore

  Certified for marine applications, controlling propulsion systems, thrusters, winches, and cargo handling equipmentABB Group.
• HVAC Systems

  Manages fans, pumps, and compressors in commercial and industrial heating, ventilation, and air conditioning systems.
• Material Handling

  Controls cranes, forklifts, elevators, and automated storage systems requiring precise motion controlABB Group.
• Renewable Energy

  Used in wind turbine pitch control systems and solar tracking applications requiring reliable motor control in variable environmental conditions.
