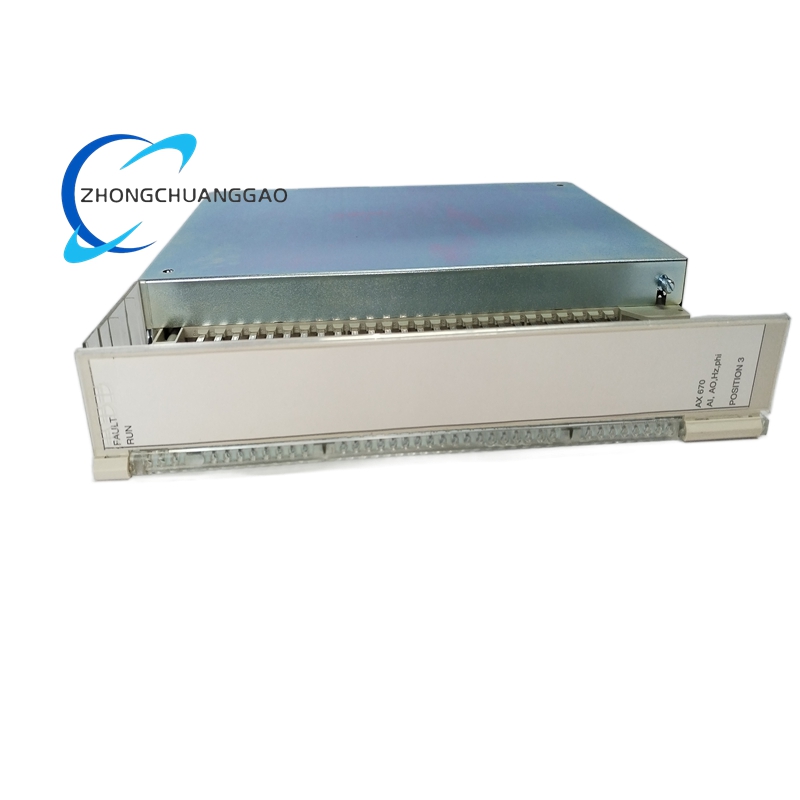

ABB AX670 3BSE000566R1 Analog Mixed Module

Description

Technical Specifications

Core Module Parameters

• Product Type: Analog Mixed I/O Module
• Part Number: 3BSE000566R1
• Compatibility: ABB Advant OCS DCS, ABB 800xA System
• Form Factor: Compact DIN-rail mountable module
• Dimensions (W×H×D): 85 mm × 55 mm × 120 mm
• Weight: 0.2 kg (Net), 1.26 kg (Gross)
• Country of Origin: Sweden
• Protection Rating: IP20 (Front Panel)
• Pollution Degree: 2 (IEC 60664-1)

Analog Input (AI) Specifications

• Number of Channels: 2 differential/single-ended channels
• Input Signal Ranges:
  • Voltage: 0–10 V DC, -10–10 V DC
  • Current: 0–20 mA, 4–20 mA
• Input Impedance: >1 MΩ (Voltage), 50 Ω (Current)
• Resolution: 16-bit
• Accuracy: ±0.1% of Full Scale (F.S.)
• Response Time: 10 microseconds
• Isolation: Galvanic isolation between channels and system bus (2.5 kV)
• Measurement Modes: Single-ended, differential, and ratiometric measurement

Analog Output (AO) Specifications

• Number of Channels: 2 channels
• Output Signal Ranges:
  • Voltage: 0–10 V DC, -10–10 V DC
  • Current: 0–20 mA, 4–20 mA
• Output Drive Capability:
  • Voltage: ≥10 mA
  • Current: ≥500 Ω load resistance
• Resolution: 16-bit
• Accuracy: ±0.1% of Full Scale (F.S.)
• Settling Time: <1 ms
• Isolation: Galvanic isolation between outputs and system bus

Power & Communication

• Operating Voltage: 24 V DC (±10%)
• Power Consumption: <3 W
• Communication Interface: Advant OCS proprietary bus (integrated with DCS)
• Data Update Rate: Up to 1 kHz
• Diagnostics: Built-in self-test, channel status monitoring, fault reporting

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH (Non-condensing)
• Vibration Resistance: IEC 60068-2-6 (10–2000 Hz, 2 g)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms)
• EMC Compliance: EN 61000-6-2, EN 61000-6-4

Certifications

• Safety: CE, UL 508
• EMC: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3
• Environmental: RoHS Compliant

Functional Features

1. High-Precision Signal Processing

• 16-bit Resolution: Delivers exceptional resolution for both input sampling and output control, ensuring fine-grained process monitoring and regulation.
• Low Drift Design: Utilizes high-stability components to minimize thermal drift, maintaining long-term measurement and control accuracy.
• Fast Response: 10 μs input response time and <1 ms output settling time enable real-time control of fast-changing process variables.
• Multi-Range Support: Flexible configuration for voltage and current signals eliminates the need for signal conditioning external hardware.

2. Robust Isolation & Noise Immunity

• Galvanic Isolation: 2.5 kV isolation between field signals and the control system bus protects against ground loops, electrical surges, and common-mode noise.
• Differential Inputs: Rejects common-mode interference, ensuring accurate signal acquisition in electrically noisy industrial environments.
• EMC Hardened: Designed to meet strict industrial EMC standards, guaranteeing reliable operation in the presence of variable frequency drives and other high-power equipment.

3. Versatile Configuration & Flexibility

• Mixed I/O Design: Combines AI and AO channels in one module, optimizing cabinet space and reducing wiring complexity.
• Configurable Measurement Modes: Supports single-ended, differential, and ratiometric measurements to adapt to diverse sensor types.
• Field-Programmable: Parameters such as signal range, filtering, and scaling are configurable via the DCS engineering toolset.
• Hot-Swappable: Allows for installation, removal, or replacement without powering down the entire control system, maximizing uptime.

4. Advanced Diagnostics & Reliability

• Continuous Self-Monitoring: Performs ongoing self-tests on all channels and internal circuits, detecting faults such as open circuits, short circuits, and out-of-range signals.
• Fault Reporting: Generates detailed diagnostic messages and alarms for the DCS, enabling proactive maintenance and rapid troubleshooting.
• Industrial-Grade Construction: Built with high-quality components to withstand extreme temperatures, vibration, and humidity, ensuring long service life.
• MTBF: High Mean Time Between Failures, reducing maintenance costs and enhancing overall system availability.

5. Seamless System Integration

• DCS Native Integration: Fully integrated with ABB Advant OCS and System 800xA, providing plug-and-play functionality and native communication.
• Scalable Architecture: Supports easy expansion of the I/O system by adding multiple AX670 modules to the control network.
• Standardized Wiring: Uses industry-standard terminal blocks for field connections, simplifying installation and maintenance.
• Software Compatibility: Fully compatible with ABB’s Control Builder M engineering software for configuration, commissioning, and diagnostics.

Application Scenarios

1. Process Industries

• Chemical & Petrochemical: Monitors and controls reactor temperatures, pressures, flow rates, and liquid levels; regulates valve positions and pump speeds for precise process control.
• Oil & Gas: Used in upstream production (wellhead monitoring), refining (distillation column control), and pipeline operations (flow and pressure regulation).
• Pharmaceuticals: Ensures accurate control of batch processes, including temperature, pH, and mixing speed in bioreactors and fermenters.
• Food & Beverage: Manages parameters such as temperature, pressure, and flow in cooking, pasteurization, and packaging lines.

2. Power Generation & Utilities

• Thermal Power Plants: Controls boiler feedwater flow, steam pressure, turbine speed, and flue gas emissions.
• Hydroelectric Power: Monitors water level, flow rate, and gate position in dams and penstocks.
• Renewable Energy: Integrates with solar inverter control and wind turbine pitch systems for power output regulation.
• Water & Wastewater: Controls pump speeds, valve actuators, and chemical dosing in water treatment and distribution networks.

3. Manufacturing & Metal Processing

• Steel & Metal Production: Monitors and controls furnace temperatures, rolling mill speeds, and material tension in continuous casting processes.
• Automotive Manufacturing: Regulates hydraulic pressure, pneumatic pressure, and temperature in stamping, welding, and assembly lines.
• Pulp & Paper: Controls consistency, moisture content, and reel speed in paper machines.
• Mining: Manages conveyor speed, crusher load, and slurry flow in mineral processing operations.

4. Building Automation & HVAC

• Commercial Buildings: Controls variable air volume (VAV) boxes, chiller plants, and boiler systems for energy-efficient HVAC management.
• Data Centers: Monitors and regulates cooling system flow rates, temperatures, and humidity levels.
• District Heating/Cooling: Controls pump speeds and valve positions in large-scale thermal distribution networks.

5. Marine & Offshore

• Shipboard Systems: Manages engine control, fuel flow, ballast water systems, and cargo handling equipment.
• Offshore Platforms: Operates in harsh marine environments for process control and safety system monitoring.
• Dynamic Positioning: Provides precise control signals for thruster systems in offshore vessels and rigs.
