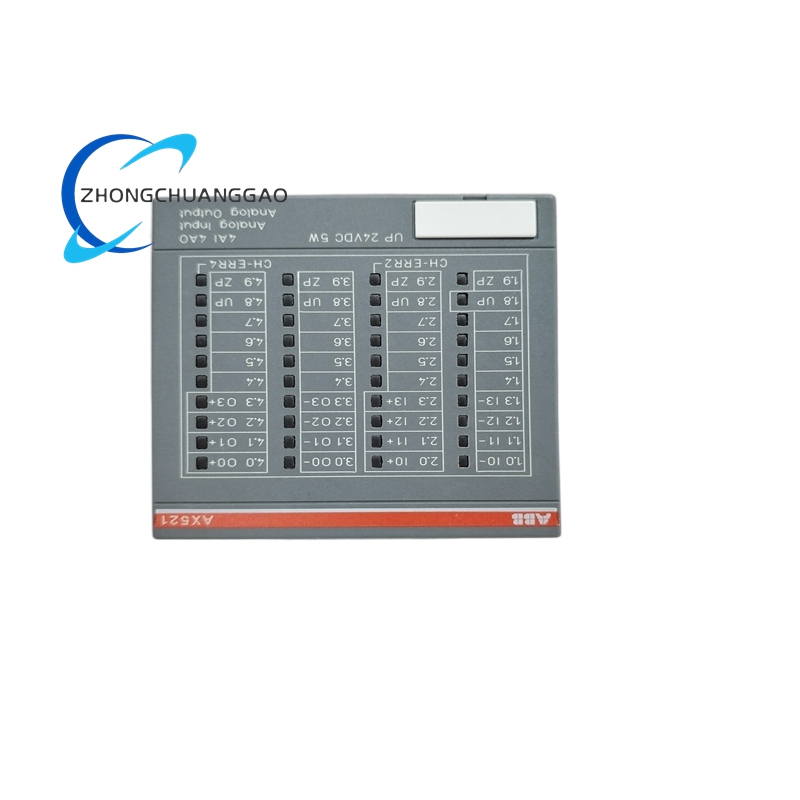

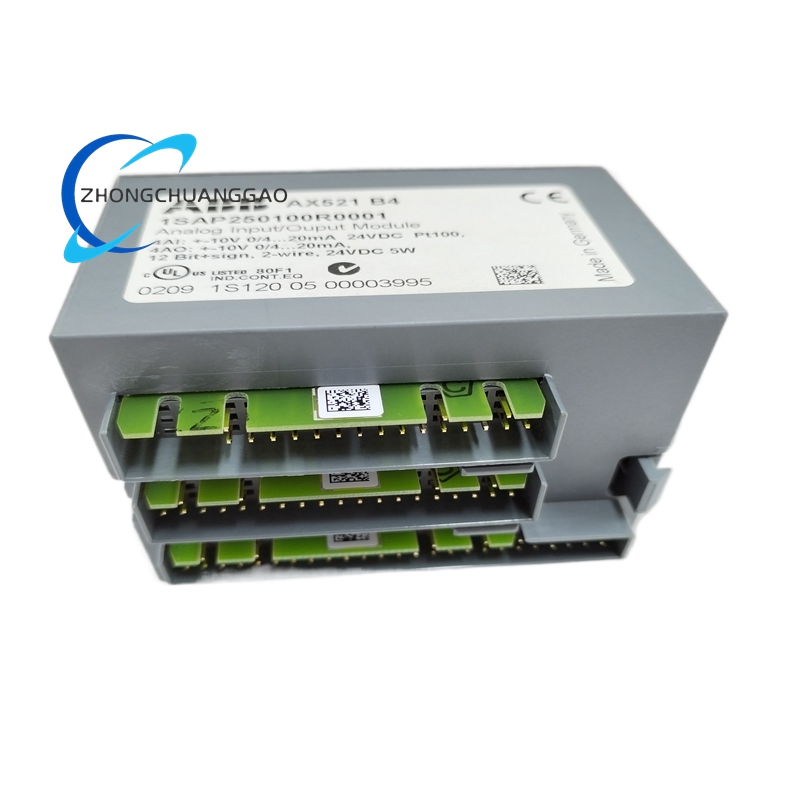

ABB AX521 1SAP250100R0001 Analog Input/Output Module

Description

Technical Specifications

• Product Series: ABB S500 I/O Module (for AC500 PLC Systems)ABB Group
• Channel Configuration:
  • Analog Inputs (AI): 4 channels, supporting voltage (U), current (I), and RTD (Resistance Temperature Detector) signalsABB Group
  • Analog Outputs (AO): 4 channels, supporting voltage (U) and current (I) signalsABB Group
• Signal Ranges:
  • Input Voltage: ±10 V DC
  • Input Current: 0/4 – 20 mA
  • Input RTD: Pt100 (2/3/4-wire connections supported)
  • Output Voltage: ±10 V DC
  • Output Current: 0/4 – 20 mA
• Resolution & Accuracy:
  • Input Resolution: 13 bits (including sign bit)
  • Output Resolution: 12 bits (including sign bit)
  • Measurement Accuracy: ≤ ±0.1% of full-scale (FS)
• Electrical Parameters:
  • Supply Voltage: 24 V DC (18 – 30 V DC operational range)
  • Power Consumption: Max. 5 W
  • Isolation: Full galvanic isolation (field-side to logic-side)
  • Input Impedance: > 100 kΩ (voltage); 50 Ω (current)
  • Output Load: Max. 500 Ω (current); Min. 1 kΩ (voltage)
• Physical Characteristics:
  • Dimensions (W x H x D): 67.5 mm x 76 mm x 62 mmABB Group
  • Net Weight: 0.129 kgABB Group
  • Mounting: Standard 35 mm DIN rail (DIN 50022)
  • Protection Rating: IP20
• Environmental Ratings:
  • Operating Temperature: -25°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5% to 95% RH (non-condensing)
  • Corrosion Resistance: G3 harsh environment compliant (ISA-S71.04)
  • EMC Compliance: Meets industrial EMC standards for high immunity

Key Functional Features

• Multi-Signal Compatibility: Supports a comprehensive range of analog input (voltage, current, RTD) and output (voltage, current) signals, enabling direct connection to diverse field sensors and actuators without additional signal conditionersABB Group.
• High-Precision Signal Processing: Delivers exceptional measurement accuracy (≤ 0.1% FS) and high resolution (13-bit input, 12-bit output), ensuring precise data capture and control signal generation for critical process parameters.
• Full Galvanic Isolation: Provides complete electrical isolation between field circuits and internal logic, effectively eliminating ground loops, electrical noise, and voltage transients, protecting both the module and connected PLC system.
• Fast Response & Sampling: Features high-speed signal conversion with a fast response time (< 1 ms) and a sampling rate of 100 samples per second, ensuring real-time data feedback and dynamic control performance.
• Robust Industrial Design: Built with industrial-grade components, featuring a wide operating temperature range, G3 corrosion resistance, and high EMC immunity, guaranteeing stable and reliable operation in harsh industrial environments.
• Compact & Space-Saving: Ultra-compact form factor with standard DIN-rail mounting, optimizing cabinet space usage and allowing for high-density I/O configuration in control panelsABB Group.
• Comprehensive Diagnostics: Integrated LED status indicators for power, signal health, and fault detection, alongside built-in self-diagnostic functions for quick troubleshooting and reduced system downtime.
• Plug-and-Play Integration: Designed for direct, hot-swappable integration with ABB AC500 PLCs, supporting easy configuration via ABB programming software for minimal setup and commissioning time.

Application Scenarios

• Process Industries:
  • Oil & Gas: Pipeline pressure monitoring, flow rate control, and temperature regulation in refining and distribution.
  • Chemical & Pharmaceutical: Precise control of temperature, pH, liquid level, and pressure in reaction vessels and mixing systems.
  • Power Generation: Boiler feedwater control, turbine auxiliary system monitoring, and thermal power plant process instrumentation.
  • Water & Wastewater: Water quality parameter monitoring, pump speed control, and filter press automation.
• Manufacturing Automation:
  • Food & Beverage: Oven temperature control, conveyor speed regulation, and packaging line pressure monitoring.
  • Textile Machinery: Yarn tension control, dyeing process temperature regulation, and winding speed adjustment.
  • Plastics & Rubber: Extruder temperature and pressure control, and injection molding process parameter regulation.
  • Machine Tools: Spindle speed control, hydraulic pressure monitoring, and precision positioning systems.
• Building & Infrastructure:
  • HVAC Systems: Chilled water temperature control, air flow regulation, and pressure monitoring in large buildings.
  • Energy Management: Power distribution monitoring, energy consumption metering, and smart grid control interfaces.
• Metallurgy & Mining:
  • Metal Processing: Furnace temperature control, rolling mill speed regulation, and material thickness monitoring.
  • Mining Operations: Conveyor belt load control, pump pressure regulation, and ore processing automation.
• Marine & Offshore:
  • Ship Automation: Engine temperature and pressure monitoring, auxiliary system control, and cargo handling equipment regulation.
  • Offshore Platforms: Environmental monitoring, safety system control, and subsea process parameter management.
