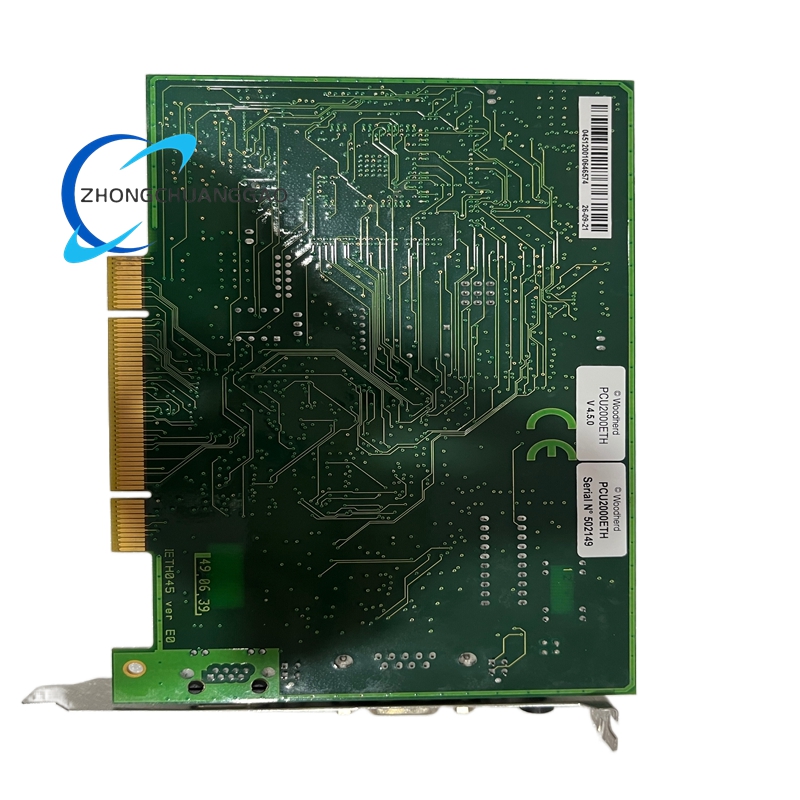

ABB APP-ETH-PCU-C PCU2000ETH Industrial Ethernet Communication Card

Description

Technical Specifications

Core Hardware Parameters

• Card Type: Industrial Ethernet Communication Card (PCI Form Factor)
• Host Interface: Universal PCI 3.3V/5V (Plug-and-Play Compatible)
• On-Board Processor: AMD SC520, 133 MHz
• Memory: 8 MB SDRAM, 1 MB Flash Memory
• DPRAM: 32 KB Shared Memory for High-Speed Host Communication
• Power Consumption: 5.5 W (From PCI Bus, No External Power Required)
• Net Weight: 140 g
• Dimensions (L × W): 175 mm × 107 mm

Communication Interfaces

• Ethernet Port: 1 × RJ45, 10/100 Mbps (Auto-Negotiation, Auto-MDI/MDI-X)
• Link Indicators: 4 × LEDs (TX, RX, Link, 100 Mbps)
• Supported Protocols: TCP/IP, UDP, ICMP, ARP, Modbus TCP, EtherNet/IP, PROFINET, OPC DA
• Protocol Support: All Protocols Run Simultaneously Without Performance Degradation

Digital I/O & Diagnostics

• Discrete Input: 1 × Opto-Coupled Input (DC 10–30 V or AC 24 V, 50/60 Hz)
• Watchdog Output: 1 × Floating Dry Contact (24 V DC, 0.25 A) for System Health Monitoring
• Diagnostics: On-Board Self-Test, LED Status Indicators, Host-Level Diagnostic APIs

Environmental Specifications

• Operating Temperature: 0°C to +65°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH (Non-Condensing)
• Vibration Resistance: Complies with IEC 60068-2-6
• Shock Resistance: Complies with IEC 60068-2-27

Certifications & Compliance

• EMC: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2
• Safety: CE Certified
• Environmental: RoHS Compliant
• Software Compatibility: Certified for Over 50 SCADA/HMI Packages (Including ABB System 800xA, Wonderware, Siemens WinCC)

Functional Features

1. Real-Time Communication Offload

• On-Board Processing: The AMD SC520 processor handles all industrial protocol processing, freeing the host CPU for control and visualization tasks.
• Deterministic Data Transfer: Ensures low-latency, jitter-free communication for time-critical industrial processes.
• High-Speed DPRAM: 32 KB shared memory enables direct, high-throughput data exchange between the card and host applications.

2. Comprehensive Protocol Support

• Multi-Protocol Simultaneity: Runs TCP/IP, Modbus TCP, EtherNet/IP, PROFINET, and OPC DA simultaneously without performance loss.
• OPC DA Integration: Native OPC DA server support for seamless connectivity with standard HMI/SCADA software.
• DLL/DDE/DAServer Interfaces: Multiple programming interfaces for custom application development and legacy system integration.

3. Robust Industrial Design

• EMC Hardening: Meets strict EN 61000-6-2 industrial EMC standards, ensuring operation in high-interference environments.
• Watchdog Functionality: The dedicated watchdog output monitors system health and triggers a safe state upon communication or host failure.
• Plug-and-Play Compatibility: Universal PCI 3.3V/5V slot support enables easy installation in a wide range of industrial PCs and servers.

4. Advanced Diagnostics & Reliability

• Comprehensive Status Monitoring: LED indicators for link status, data transmission, and speed, plus host-level diagnostic data for remote troubleshooting.
• Long-Term Availability: Industrial-grade components and RoHS compliance ensure compatibility with modern and legacy systems.
• Redundancy Support: Works with OPC server redundancy to enhance system reliability in critical applications.

5. Software Ecosystem

• Free Technical Support: Provided by Molex for the lifetime of the product.
• Firmware Updates: Support for firmware upgrades to maintain compatibility with new protocols and software versions.
• Driver Support: Win32 NDIS drivers for Windows operating systems, enabling the card to function as a standard Ethernet adapter when required.

Application Scenarios

1. ABB Industrial Automation Systems

• System 800xA Integration: Serves as the primary Ethernet interface for connecting industrial PCs to ABB’s System 800xA DCS, enabling real-time data acquisition and control.
• ABB PLC Communication: Facilitates high-speed data exchange between ABB AC500, AC800M, and AC31 PLCs and SCADA systems.
• Variable Frequency Drive (VFD) Monitoring: Connects ABB ACS800, ACS580, and ACS380 VFDs to host systems for remote monitoring, parameter adjustment, and fault diagnosis.

2. Process Control Industries

• Oil & Gas: Enables real-time monitoring and control of drilling rigs, refineries, and pipeline systems, with support for hazardous area communication protocols.
• Chemical & Petrochemical: Facilitates data acquisition from reactors, distillation columns, and storage tanks, ensuring compliance with strict process control standards.
• Power Generation: Connects turbine control systems, boiler management, and substation automation equipment to central SCADA systems for grid stability and efficiency.

3. Manufacturing & Discrete Automation

• Automotive Production: Integrates robotic cells, assembly lines, and quality control systems into a unified communication network.
• Food & Beverage: Enables traceability and process control in packaging, filling, and sterilization lines, with support for hygienic industrial environments.
• Electronics Manufacturing: Facilitates high-speed data transfer for SMT machines, test equipment, and inventory management systems.

4. Infrastructure & Utilities

• Water & Wastewater Treatment: Connects pump stations, clarifiers, and chemical dosing systems to central monitoring systems for efficient resource management.
• Smart Grids: Enables communication between smart meters, substation controllers, and grid management systems for real-time load balancing.
• Building Automation: Integrates HVAC, lighting, and security systems into a single Ethernet network for energy efficiency and centralized control.

5. Legacy System Modernization

• Protocol Conversion: Converts legacy serial or Profibus communication to Ethernet for integration with modern SCADA/HMI systems.
• Host Upgrades: Enables industrial PCs to communicate with new ABB devices without replacing existing control hardware.
• Data Migration: Facilitates the transfer of historical process data from legacy systems to modern databases for analysis and compliance.
